9. OPERATIONS
4

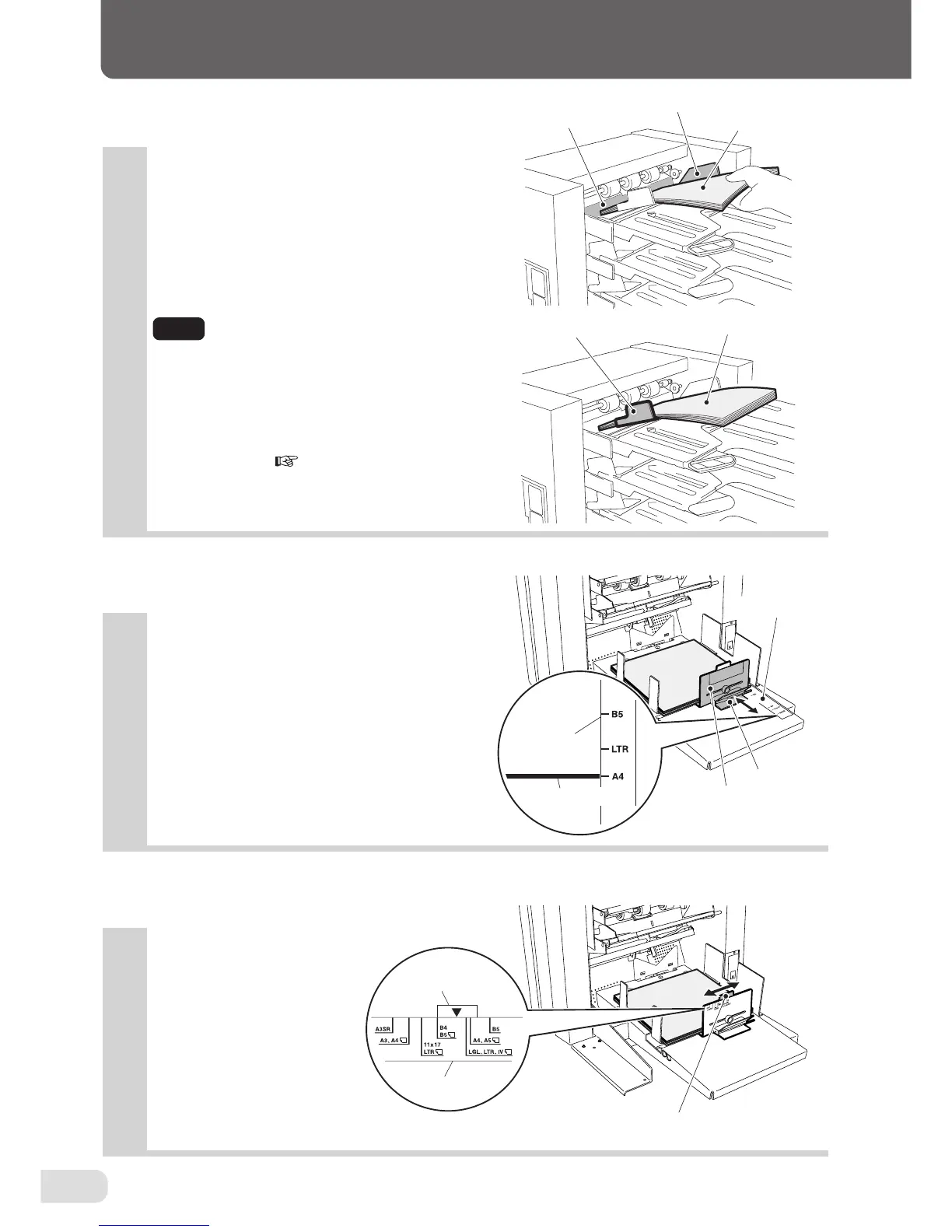

Load the paper on the bins.
Insert the paper along the fixed guide until it
touches the guide of the paper feed gate lightly.
• The maximum height of paper which can be
stacked is 28 mm. Be careful not to overstack.
Contact the movable guide lightly to the edge
of the paper.
Note
The method of loading paper differs
according to the normal mode, inter-
leaving mode, block mode, and alter-
native mode.
For details, refer to "10. LOADING
PAPER ACCORDING TO COLLATION
MODE" ( page 15).
Proceed to step 9 when using the
downstream unit.
5
6
Move and adjust the paper receiving
stopper 2 to the paper size.
Move and adjust the paper receiving
stopper 1 to the paper size.
The paper size scale on the paper receiving
table is at the standard position for each paper
size.
If paper is not stacked properly, or if paper is
crushed by the back jogger, adjust the knob to
move the paper receiving stopper 1 back and
forth.
Paper feed gate
Fixed guide
Paper
Movable guide
Paper
Paper receiving stopper 1
Paper receiving
stopper 1
Paper size scale
Paper size
scale
Knob
Paper receiving stopper 2
Paper receiving
stopper 2
Paper size scale
