Duplo DocuCutter CC-330 Service And Parts Manual

24

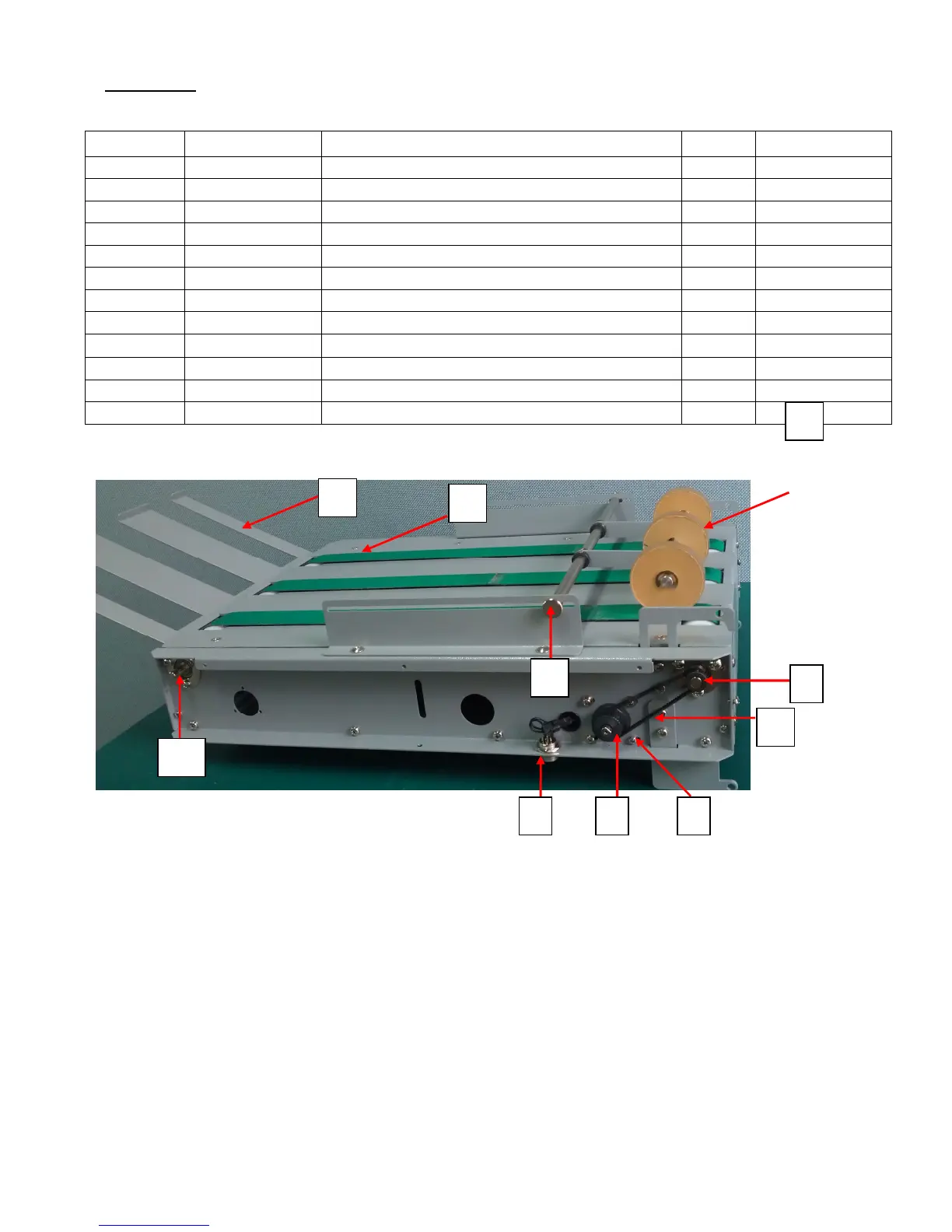

. Conveyor
Index P/N Part Name Qty Remarks
3.01 882-301-000A Asm, Pick Up Roller, CC-330 Conveyor 1
3.02 882-302-000A Belt, CC-330 Conveyor, 21” 3
882-302-000B Belt, CC-330 Conveyor, 15” 3
3.03 882-303-000A Ramp, CC-330 Conveyor 1
3.04 00S-M04-010T Thumb Screw, M4x10 2
3.05 08P-18G-0800 Pulley, 0.08P, 18G, OD 8mm 1
3.06 00B-MXL-106A Belt, 106MXL, 6.4mm 1
3.07 00M-000-0415 Motor, DC 1
00T-000-0706
Thermostat, 80
℃
3.08 08P-35G-0800 Pulley, 0.08P, 35G 1
3.09 00C-000-1413 Connector, 8Pin, Male 1
3.10 00B-000-6901 Ball Bearing, 6901ZZ 4
1
2
3
4
5
6
7
8
9
10
