Duplo DocuCutter CC-330 Service And Parts Manual

35
. Feed Tray Tension Adjustment

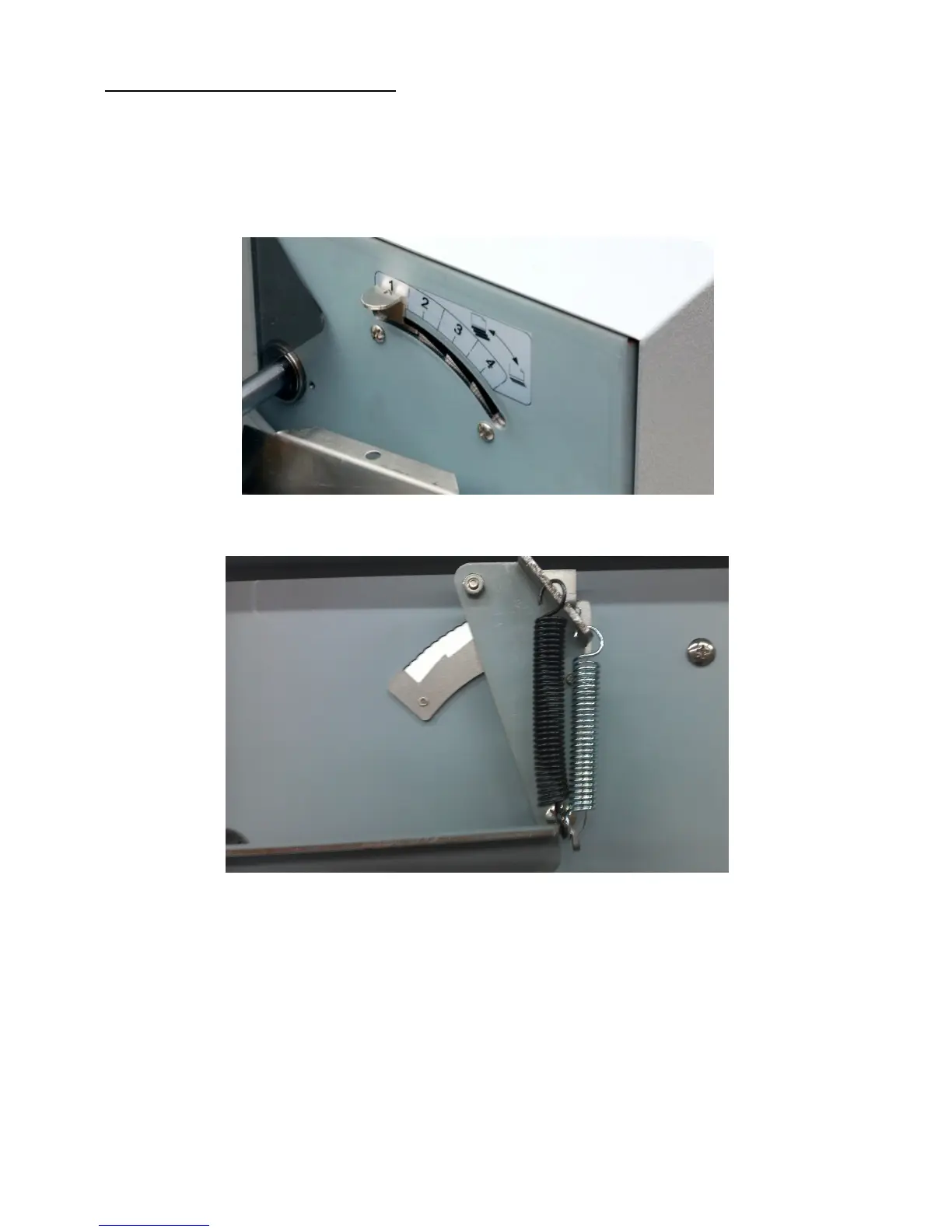

1. Factory setting the spring position, black spring at position 3 and silver spring at position 1 as shown
below:
2. If feed hopper tension set to scale 4, thin paper, still causing the paper buckled, and not get into
the 1
st
set of transport roller, reallocate the spring mounting hole to the right to reduce the tension.
3. If feed hopper tension set to scale 1, thick paper, still cannot feed the paper well and keep
occurring miss feed, re allocate the spring to the left to get more tension.
4. If the tension set tight still cannot feed well, replace the feed roller.
