32

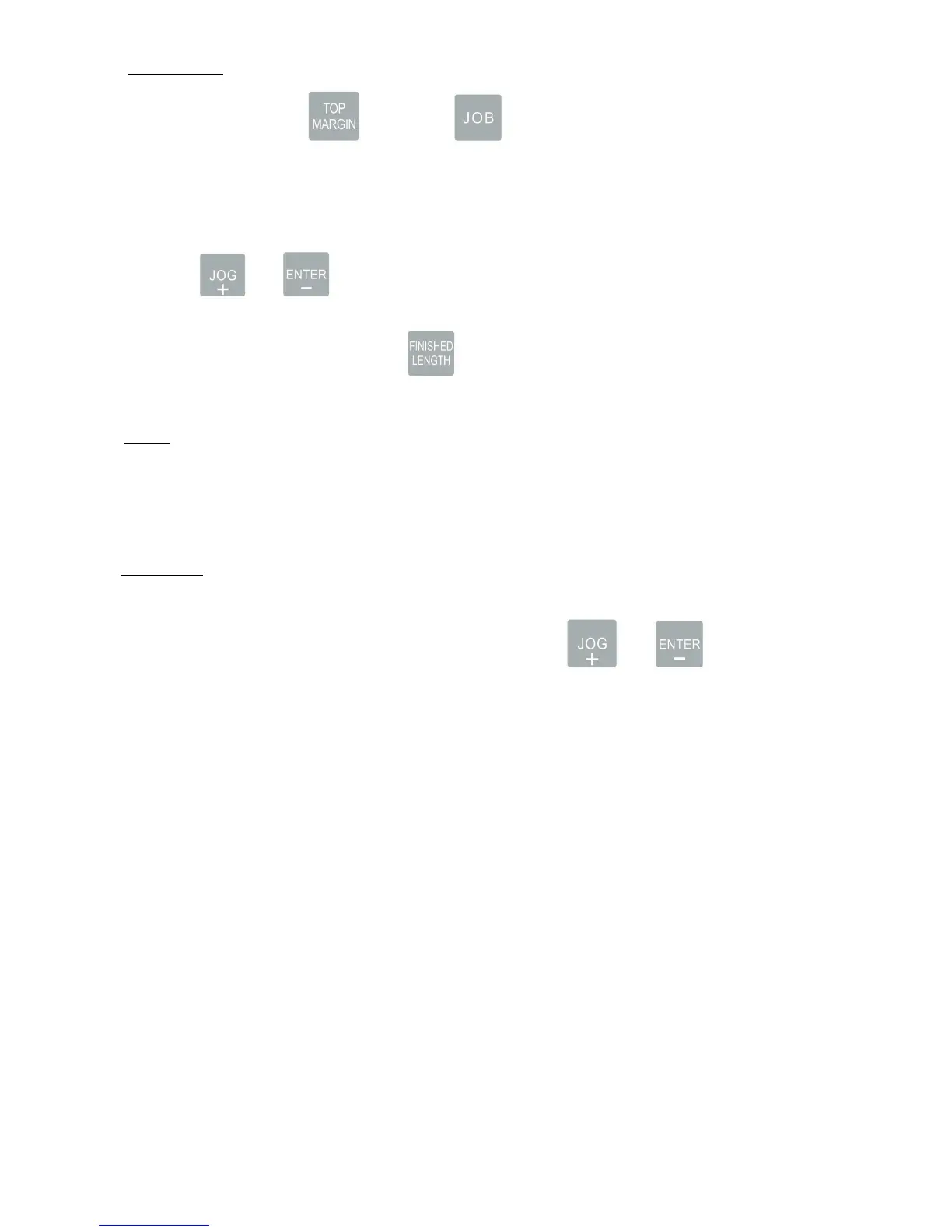

Cutting Mark
◎On job #4 to hold then tip on to set cutting mark, cut a printed sheet with mark,
make sure the leading edge of the mark to cutting line is 3mm
◎ Select mark:50, if the cut mark leading edge to cutting line is greater or smaller than 3mm, tip
on and to adjust. Each press represents 0.1mm increment or decrement.
After adjust the mark value, press to save the setting. Cut the mark again, if the cut mark
is not within spec. repeat the calibration.
Offset
This is allowing calibrate the 5
th
business card in a sheet which is possibly longer than the spec.
Assume the 5
th
card length is longer than the specification by 0.1mm. Under calibration mode
select offset:50 to reduce the figure 50 to 49.
Top Margin
On job #4 without mark to cut the top margin, it should be 12.7mm. If the cut top margin sample is
greater or smaller than 12.7mm, select margin:50, tip on and to adjust until the
top margin is within the spec. Each press represents 0.1mm increment or decrement.
