Page 21

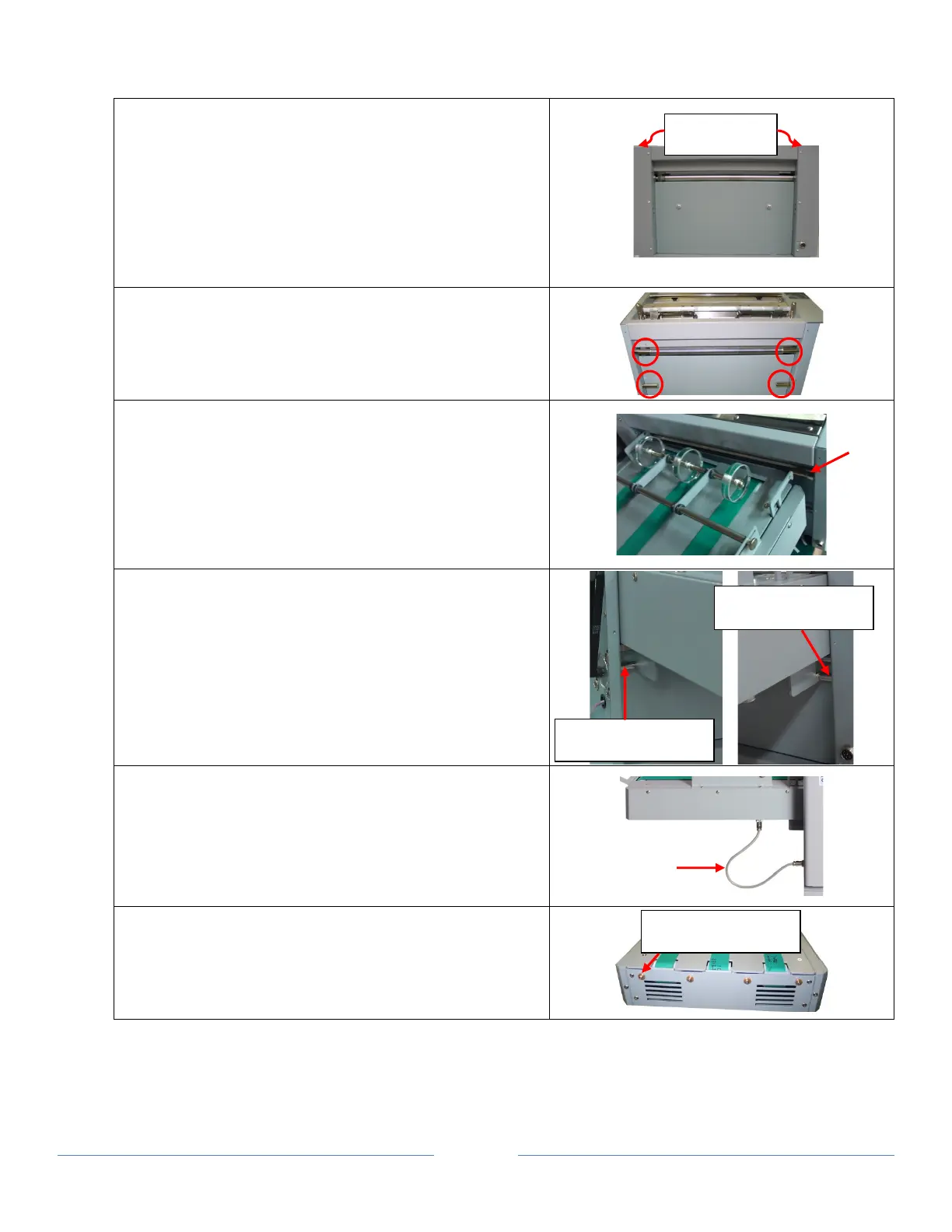

1. Remove the side covers.
2. Install the 4 studs as shown using Socket 4
Cap Screws (M6x12) and 4 Lock Washers (M6).
3. Hook the conveyor onto the studs.
4. Use 2 spacers and Machine Screws (M5 x 35)
to secure the conveyor on the left and right side
located below the conveyor.
5. Plug interface cable to conveyor and machine.
6. Fasten 4 Machine Screws (M4 x 12) and 4
shoulders washers the the end of the conveyor.
Shoulder Washers
Left Side Spacer
Right Side Spacer
Side Cover
To Next Page
