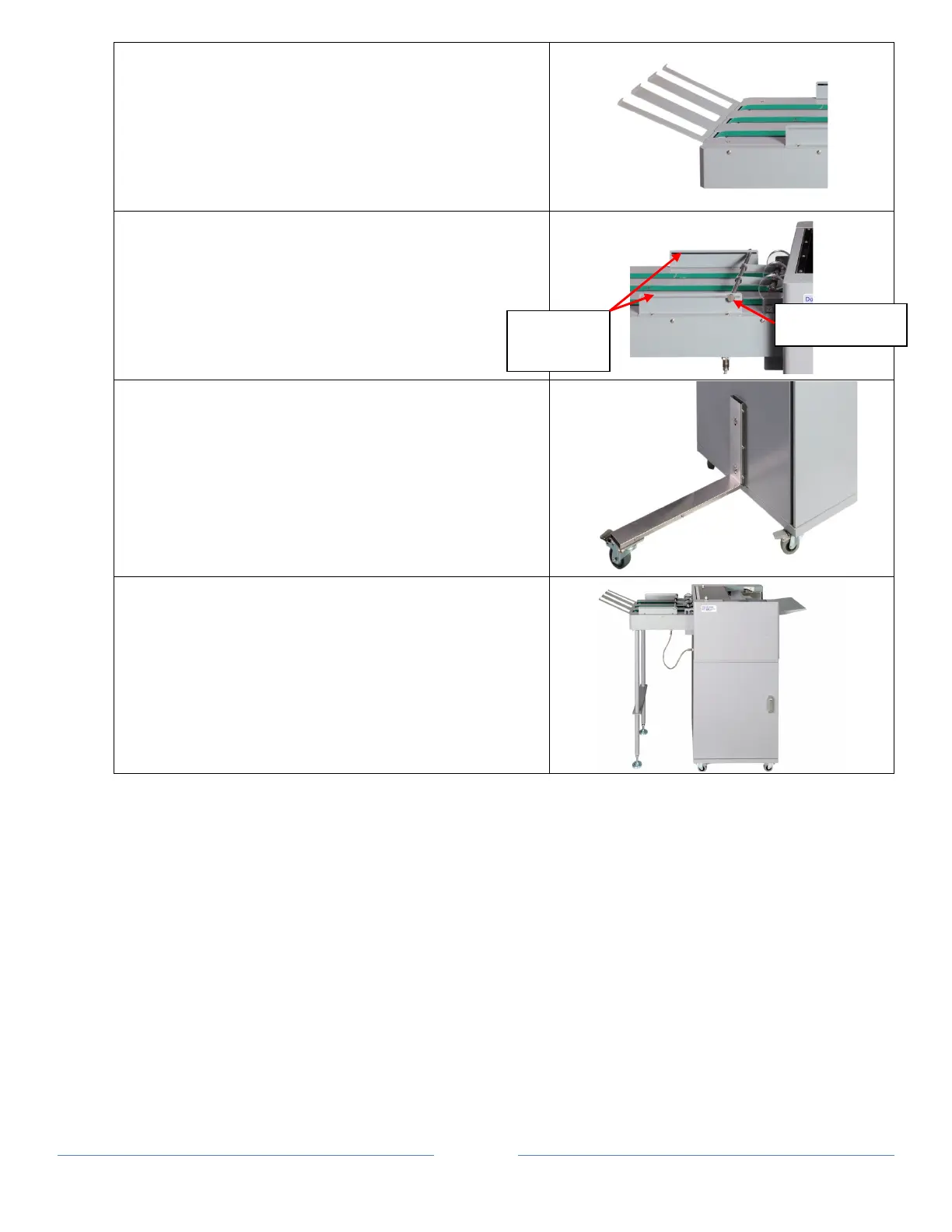

7. Install the ramp using the key holes.

8. Install Stack Rollers assembly using 2

thumbscrews as shown onto conveyor rails.

Adjust roller distance depending on paper finish

size for better stacking.

9. Install stand support using 2 Hex Bolt (M6 x

30), 4 washers (M6), 2 Lock Washer (M6) and

2 Nuts (M6) and secure stand support to the

stand.

10. Install stand support using 5 x (M5 x 10) screw

and washer to secure stand support to the

conveyor

Conveyor

Rails

Thumbscrews
