3. Click “Knife Action” to check knife depth. If the blade tip does not reach to table mat click
“knife action” to lift up tool, then adjust depth value again. Repeat Step until the blade touches
the mat.
4. Once the blade touches mat you’re done. Continue these steps for “knife1” depth setup.

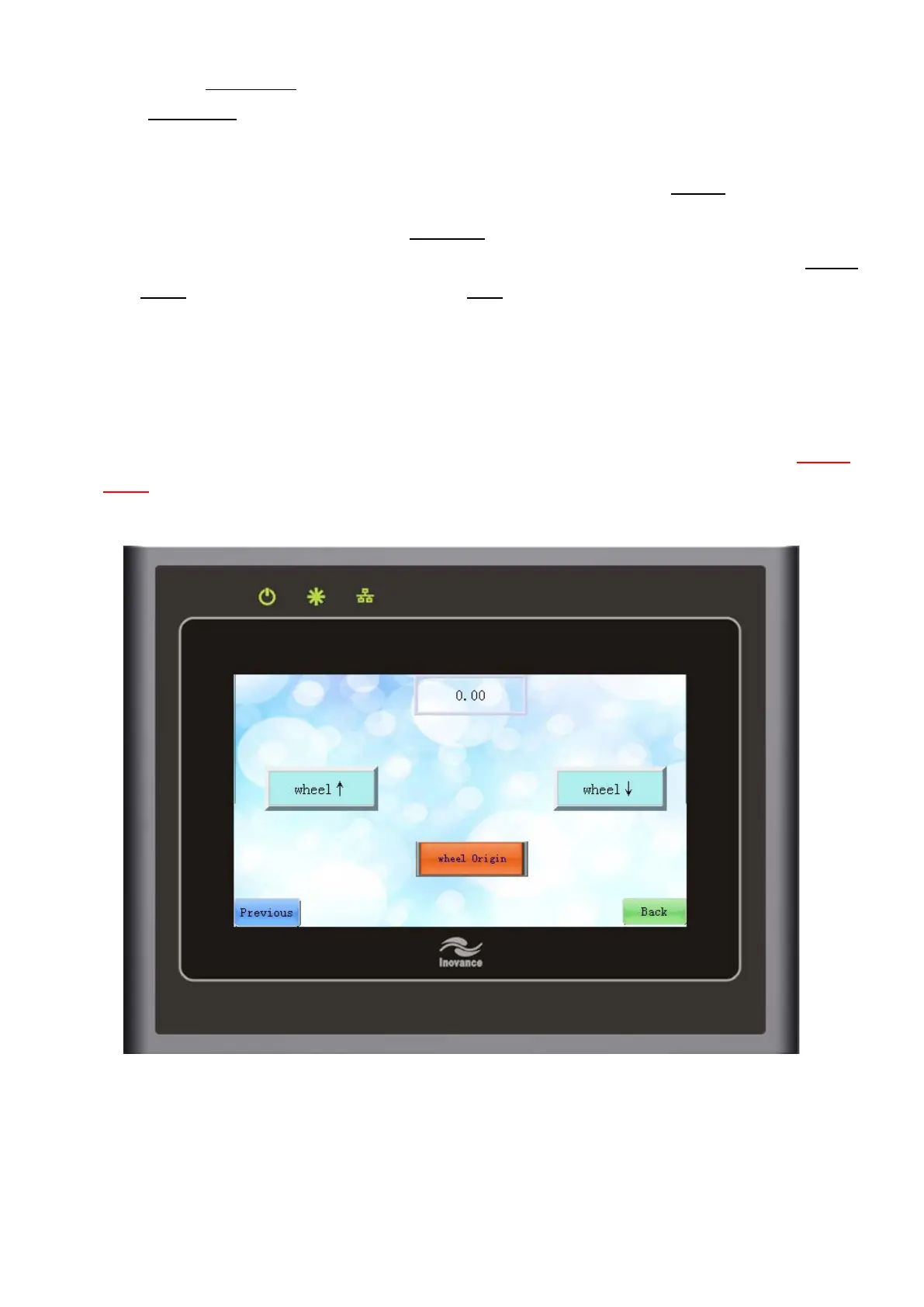

A. For wheel depth setup, Click “Next Page” enter into wheel depth adjust page (see picture
below), click “wheel↓” button to move down the wheel until it touch mat surface, click “Wheel
Origin” button to save the depth and click “Back”.
B. Then enter into test page and click wheel action to crease on paper and check that line.
*If depth is not enough and you can change that wheel depth value little by little.
Note: First check knife depth and wheel depth before click buttons of knife action and wheel
action. Larger depth settings would damage the mat and even the machine. You must click “Wheel
Origin” button after finish value settings of wheel depth, otherwise the settings would become
valid.
3-5 Offset for Creasing Wheel Tool
If creasing wheel is not parallel with Y axis, return to the main page after cut depth is set,
