Positioning the Document

The document can be loaded in the “portrait” or “landscape” position.

IMPORTANT

• A4 and B5-size documents can be loaded in the “portrait” or “landscape” position.

• Use the landscape position when enlarging or reducing from standard-size documents to

standard-size paper, such as A5 to A4.

• A3 and B4 documents can only be loaded in the landscape position.

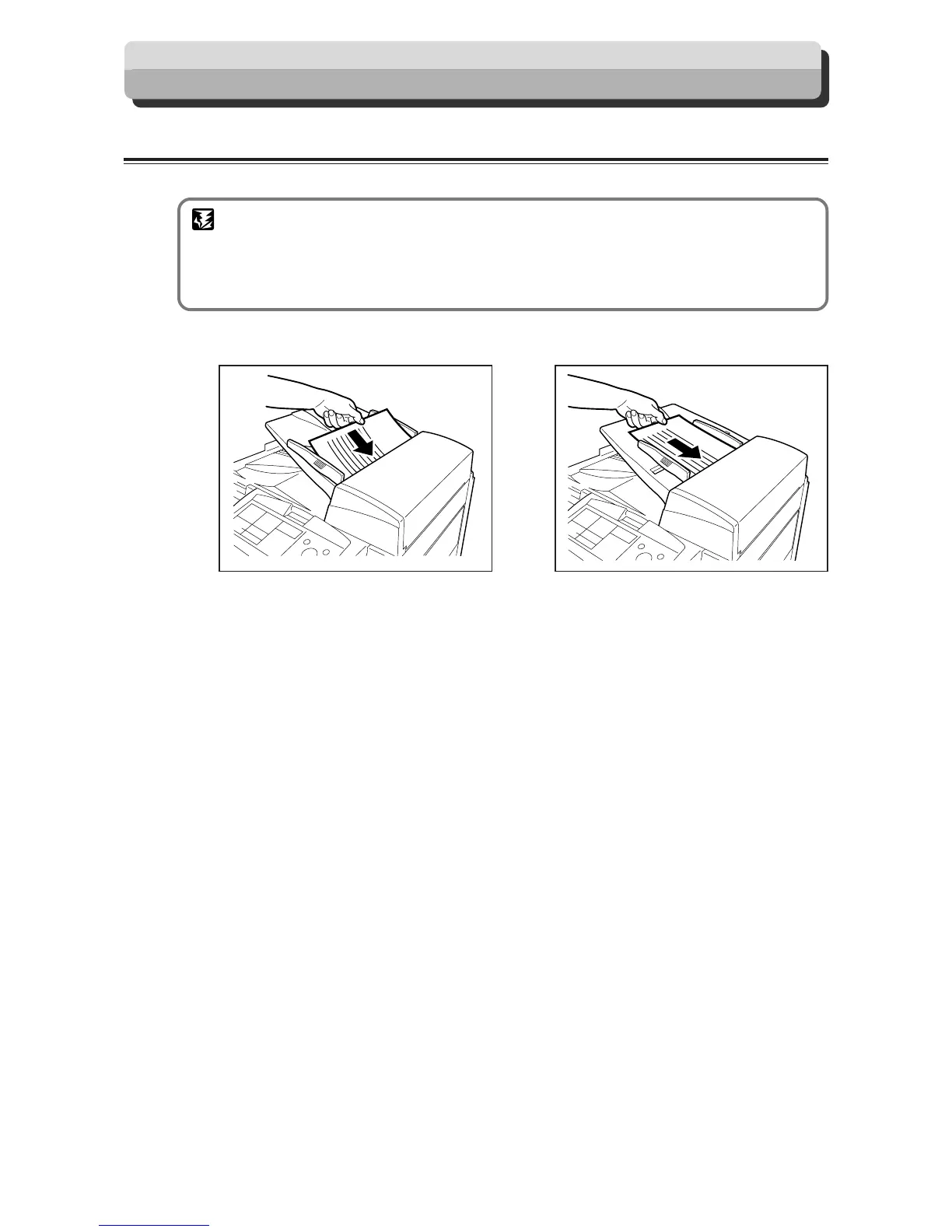

Portrait (Vertical) Placement Landscape (Lateral) Placement

ABC

Introduction3
Function Quick Reference4
- Table of Contents6
Notes on Safety (Please Read and Observe)9
- Safety Precautions9
- Warning Sticker12
- Positioning the Machine13
- Maintenance14
- Printing and Duplicating Cautions15
- Conventions Used in this Manual16
- Enlargement and Reduction16
Chapter 1 Before Using this Machine18
System Setup18
Part Names and Their Functions19
- Printer Appearance19
  - Master Roll20
  - Front Cover20
- Control Panel22
- LCD Panel24
Turning Power ON/OFF25
- Turning on Printer Power25
- Turning off Printer Power26
- Standard Mode26
- Key Card Counter [Available Only with Key Card Counter Installed]27
Document/Printing Paper Specification28
- Acceptable Documents28
- Acceptable Printing Paper28
- Dp-21Lii28
How Platemaking and Printing Is Performed29
- Platemaking29
- Printing29
Chapter 2 Printing Using Basic Functions32
Basic Printmaking32
Loading and Replacing Paper34
- Loading Paper34
- Adjusting Paper Feed Pressure35
Loading Documents36
- Positioning the Document36
- Loading Document37
Enlargement and Reduction38
- Enlarging/Reducing from Standard-Size Document to Standard-Size Paper38
- Printing Paper38
- European Paper Sizes38
- A5 → A438
- A5 → B538
- B5 → A438
- ● U.S. Paper Sizes38
- St → Lt38
- A4 → B538
- 94% Reduction39
Selecting Printing Paper Size41
Text/Photograph/Text and Photograph Mode43
Print Output45
- Installing Print Tray45
- Truing up Printed Pages47
Chapter 3 Printing with Various Function50
Saving Settings50
- Retrieving Settings52
- Clearing Settings53
Printing Two Different Document Pages on One Page54
Adjusting Plate Darkness56
Batch Printing57
- Batch Printing (Changing Print Quantity Per Document)61
- Dividing Sections with Tape [Available Only with Tape Cluster Device]64
- Dividing Sections with Tape-04 [Available Only with Tape Cluster Device]64
Chapter 4 Miscellaneous Functions68
Confidential Safeguard Function68
Total Counter Display Function69
Print Speed Adjustment Function70
Printing Position Adjustment Function71
On-Line Print Function [Available Only with Interface Kit Installed]72
Chapter 5 Replacing Consumables74
Replacing the Ink Pack74
Replacing the Master Roll77
Replacing the Master Ejection Core80
Replacing the Drum Unit82
- Removing the Drum Unit82
- Installing the Drum Unit83
Chapter 6 Troubleshooting86
Countermeasures to Troubles86
- Power Does Not Turn on86
- Platemaking/Printing Is Not Possible86
Error Messages87
- Service Call89
Supplying or Changing Paper While Printing90
- If Paper Runs out During Printing90
- Adding Paper While Printing90
- Changing Paper Selection While Printing92
Paper Jams94
- When "PAPER LEFT JAM" Is Displayed (Feed Tray)94
- When "PAPER RIGHT JAM" Is Displayed (Print Tray)95
- Paper Adhering to Drum96
- When "MASTER EJECT MISS" Is Displayed98
- When "MASTER SET MISS" Is Displayed101
Cleaning Sheet : How to Use103
Chapter 7 Specifications and Maintenance105
- Specifications106
Appendix109
- Index110
- Quick Operation Guide112
