DURAVANT Wulftec WCA-SMART - Specialized Installation Procedures

Page | 18

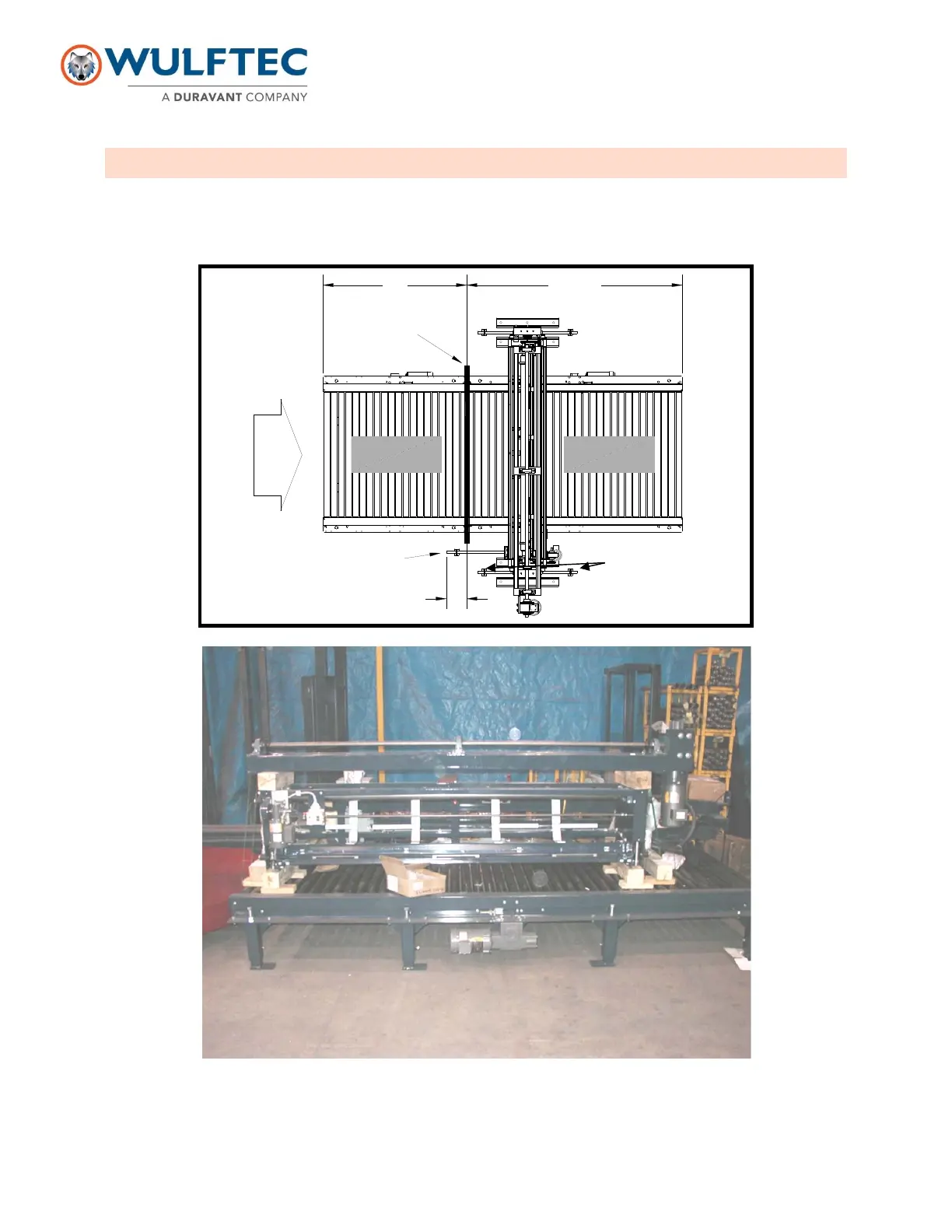

INSTALLATION OF IN-LINE TOP SHEET
For the position of the top sheet over the conveyor, please refer to drawing below. Make sure the top sheet
autoheight photoeye is aligned with the previous conveyor and the entrance photoeye is aligned on the top sheet
conveyor.
60
9
Conveyor junction
Auto-Height photoeye
support rod
F
L
O
W
Top sheet
conveyor
90 MIN
Infeed
conveyor
Entrance (left) and
exit (right) photoeyes
