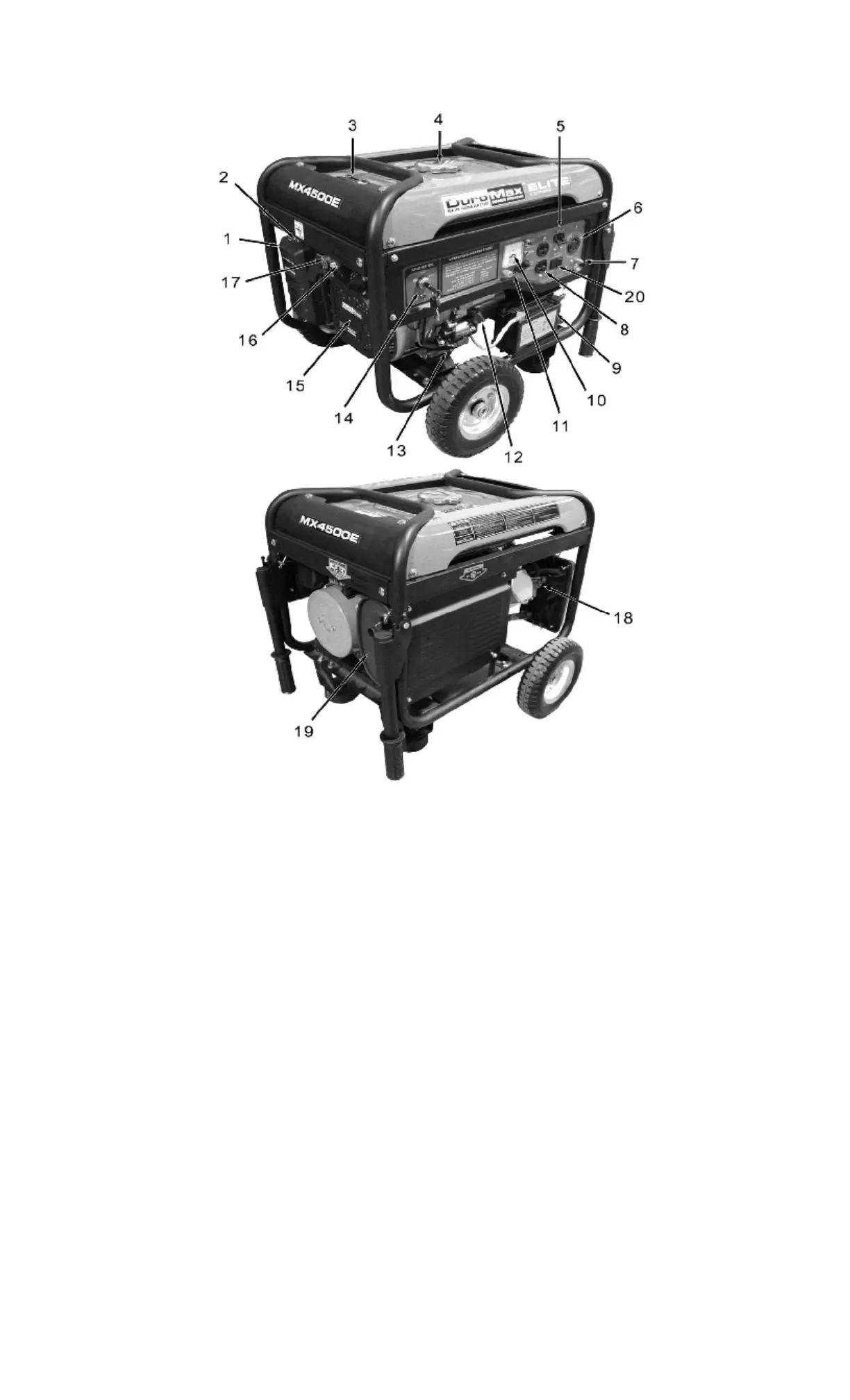

GENERATOR COMPONENTS
Please familiarize yourself with the locations and functions of the various components and
controls of your generator.
(1) Air cleaner- a removable, cleanable, sponge-like element that limits the amount of dirt
pulled into the engine.
(2) Choke lever- Adjusts the amount of air let into the engine.
(3) Fuel Gauge- Indicates the amount of fuel in the tank.
(4) Fuel Cap- Access to the fuel tank for adding fuel.
(5) Circuit Breaker- Reset switch that protects the generator from electrical overload.
(6) 120/ 240 Volt AC Receptacle- Use to connect electrical devices that run 120 and/or
240 Volt, 60Hz, single phase, AC current (NEMA L14-30).
(7) Ground Terminal- Connect grounding wires here to properly ground unit.
(8) 120 Volt AC Receptacle- Use to connect electrical devices that run 120 Volt, 60 Hz,
single phase, AC current (2×duplex GFCI).
