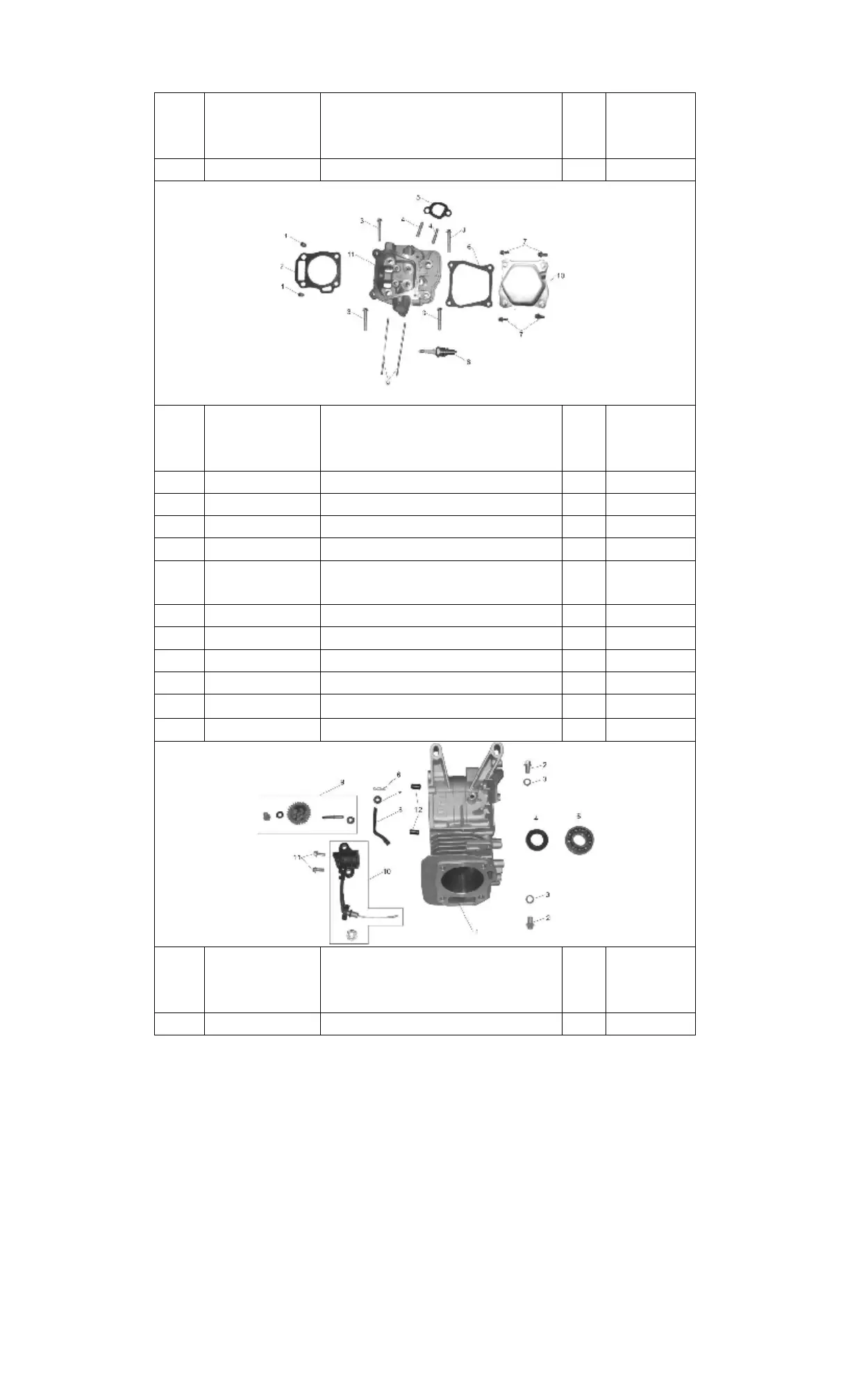

EXPLODED VIEW AND PARTS LIST (MX4500/MX4500E)
Series
No.
Part Code English Name
Unit
Quantity
for One
Unit
1 ENGN GASOLINE ENGINE SET 1
Series
No.
Part Code English Name
Unit
Quantity
for One
Unit
1 CLDH1 DOWEL PIN/10*16 PCS 2
2 CLDH2 HEAD GASKET PCS 1
3 CLDH3 BOLT / GB5789-M8*55 PCS 4
4 CLDH4 BOLT STUD EX PCS 2
5 CLDH5
PAPER WASHER , EXHAUST
OPENING
PCS 1
6 CLDH6 PACKING HEAD COVER PCS 1
7 CLDH7 BOLT/GB5787-M6*14 PCS 4
8 CLDH8 PLUG SPARK / F7TC PCS 1
9 CLDH9 BOLT STUD PCS 2
10 CLDH10 COVER, CYLINDER HEAD PCS 1
11 CLDH11 CYLINDER HEAD PCS 1
Series
No.
Part Code English Name
Unit
Quantity
for One
Unit
1 KRKS1 CRANKCASE WITH HOLE PCS 1
