18
Installation Manual
Horizontal
Horizontal Flue Termination
Straps
Slope flue
Upwards
* Not supplied with
water heater,
order separately.
Fue terminal
Fue terminal
* Not supplied with
water heater,
order separately.
Slope
downwards
Flue Pipe Installation
•
Terminate at least 350mm above ground.
• Terminate at least 2.3m above a public
walkway, 2m from the combustion air intake
of any appliance, and 1m from any other
building opening, gas utility meter, service
regulator etc.
• Terminate at least 1m above any forced
air inlet, 1.5m below, 500mm horizontally
from and 300mm above any door, window,
or gravity air inlet into any building as per
AS5601.
• Slope the horizontal flue 50mm upwards for
every 1m.
• Flue terminal must either be the outside
(max. 10 mm per meter).
• Use a condensation drain if necessary.
•
Maintain the same flue pipe diameter from the water heater flue to the termination.
•
Do not exceed the maximum flue lengths as specified in this section.
•
Terminate at least 1.8m from the combustion
air intake of any appliance, and 1m from
any
other building opening, gas utility meter,
service
regulator etc.
• Terminate the flue system at least 600mm
above but not more than 2m above the roof
line, or according to the flue pipe manufacture's
instructions.
• Provide vertical support every 3.6m or as
required by the flue pipe manufacturer's
instructions.
• Slope the horizontal flue 50mm upwards for
every 1m.
19
Installation Manual
•
Terminate at least 1.8m from the combustion
air intake of any appliance, and 1m from
any
other building opening, gas utility meter,
service
regulator etc.
• Terminate the flue system at least 600mm
above but not more than 2m above the roof
line, or according to the flue pipe manufacture's
instructions.
• Provide vertical support every 3.6m or as
required by the flue pipe manufacturer's
instructions.
• Slope the horizontal flue 50mm upwards for
every 1m.
Vertical Flue Termination
Hanger
Strap
Slope flue Upwards
Weather Collar
Air Cover
Air Intake Grill
Elbow
Flue
terminal

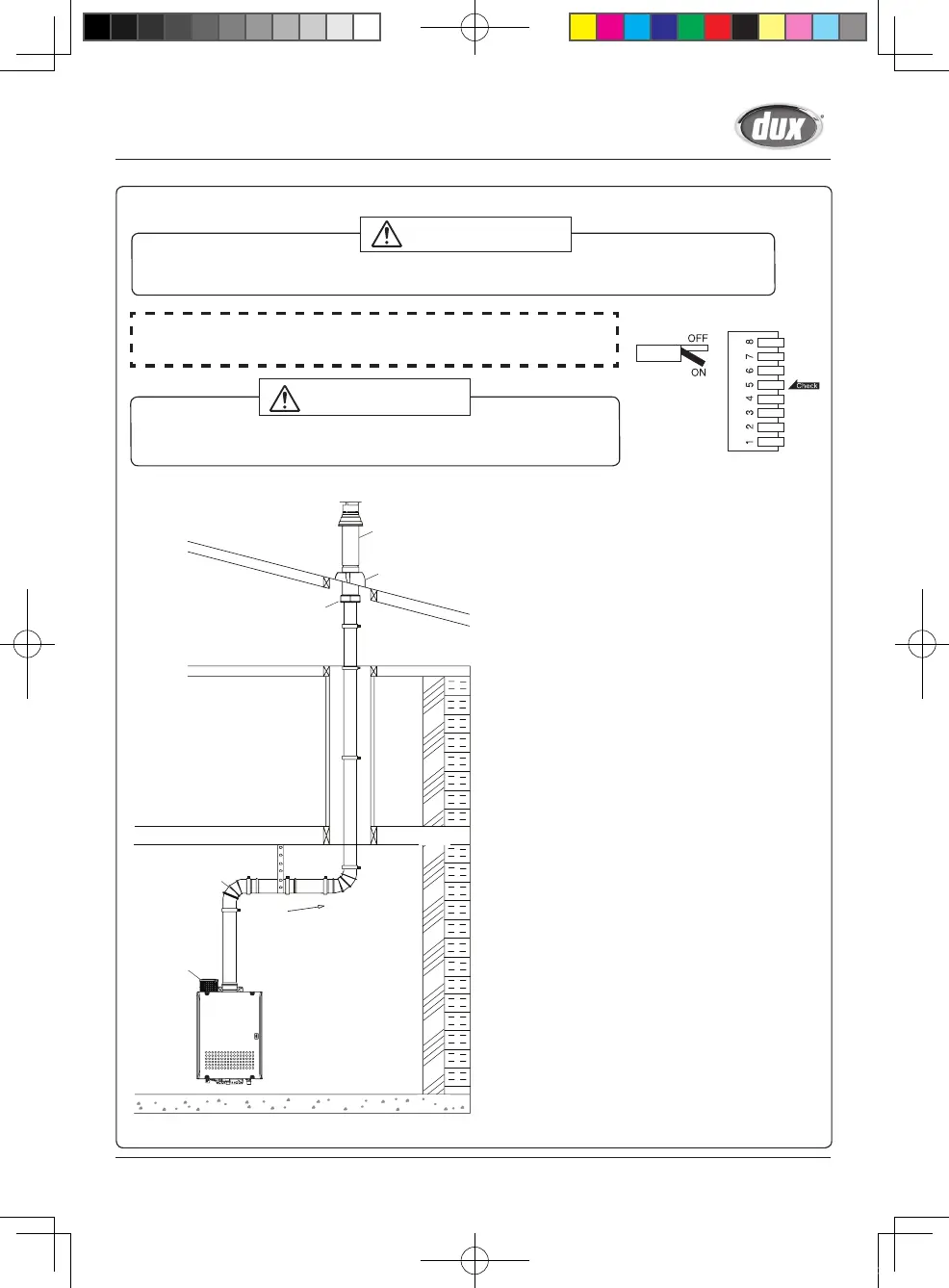

Flue Pipe Installation (When supplying combustion air from the indoors
* DIP switch No.3 is turned on.
•
Disconnect power and turn ON DIP switch 3 if combustion air will be supplied from the
indoors as illustrated to the right. Refer to page 30 for the location of the DIP switch bank.
• Air Intake Basket is required for the air intake.
Failure to perform the above 2 steps could result in a fire or explosion causing
property damage, personal injury or death.
Refer to the instructions provided with the conversion kit for additional details.
WARNING
If installing this appliance indoors in a high lint area such as a room that also contains laundry equipment,
it MUST be install with room-sealed fluing. Failure to do so may void your warranty.
WARNING
