DV Systems IS Series User Manual

SDI-01
Feb ‘15
- 19
-

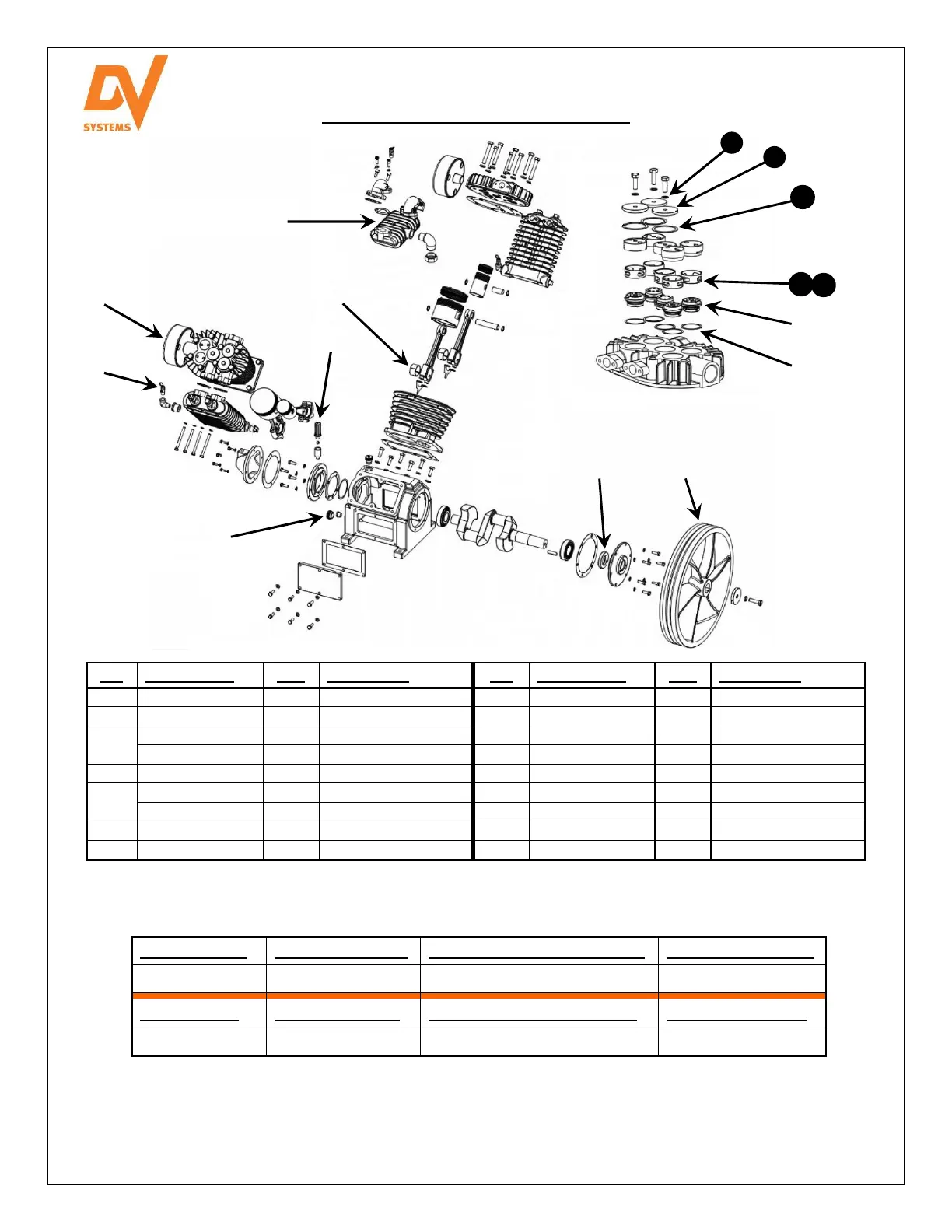

Compressor Pump – DEV-100
No. Part Number: Qty: Description: No. Part Number: Qty: Description:
1 PB-21135001 8 Bearing Insert 8 PB-11122004 10
Copper Washer (See Note B)
2 PB-21166001 1 Crankcase Breather 9 PB-21124011 10 Valve Assy (See Note B)
3
See ‘Note A’ 2 Air Filter Assembly 10 PB-21125004 6 Intake Valve Cap Ring
See ‘Note A’ 2 Air Filter Element 11 PB-21125003 4 Exhaust Valve Cap Ring
4 TIA-5075 2 Safety Valve – 75 psi 12 PB-21157006 6 Valve Cover Gasket
5
PB-21164004 1 Oil Sight Glass (Round) 13 PB-21125005 6 Valve Cover
SGK-100 1 Sight Glass Kit (Oval) 14 PB-11122001 24 8 mm Washer
6 PB-21212006 1 Flywheel GK-100 1 Gasket Kit
7 PB-21161006 1 Oil Seal
Note A: The Filter Assembly and internal Filter Element have changed. The older style Element is still available, and the Filter Elements
are not interchangeable. Please measure the Element to determine which Filter Assembly, Filter Element, and Maintenance Kit is
correct.
Note B: Please order (1) ‘PB-11122004’ Washer for every ‘PB-21124011’ Valve Assembly ordered.
Older Assembly Older Filter Element Older Filter Element Dimensions Older Maintenance Kit
PB-21176001 PB-21177013 4-1/8” OD x 2-3/4” ID x 2”H MK-100
New Assembly New Filter Element New Filter Element Dimensions New Maintenance Kit
357-9401 357-9701 4-3/8” OD x 3” ID x 2-1/4” H MK-100-1
Maintenance Kits:
The appropriate Maintenance Kit for the ‘DEV-100’ Pump is as noted in the chart above and includes the appropriate Air Filter
Elements and (1) 4 litre jug of PR-31-4 30 Weight Mineral Oil.









11
1111
11
1
11
12
22
2
1
11
1
3
33
3
1
11
1
0
00
0
1
11
14
44
4
TIA-5200 Safety Valve
(Not Shown)
