REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-877-447-4768, 8:30 a.m. – 4:30 p.m.,
CST, Monday – Friday.
WARNING: Only use genuine replacement parts from the GHP Group, Inc. Using any parts other
than the original replacement parts may result in property damage, personal injury or even death.
Item
No.
Description
Qty
Part Number
BF10DTDG-4 BF20DTDG-4 BF30DTDG-4 GBF30DTDG-4
1 Front Panel Assembly 1 AQ000090 AQ000174 AQ000175 AQ000175-1
2 Burner Assembly 1 AQ000165 AQ000149 AQ000181 AQ000181
3 ODS Assembly (Complete)
3-1 ODS -(NG) Natural Gas Pilot 1 BF30K-34 (NG) BF30K-34 (NG) BF30K-34 (NG) BF30K-34 (NG)
3-2 ODS - (LP) Propane Gas Pilot 1 BF30K-34 (LP) BF30K-34 (LP) BF30K-34 (LP) BF30K-34 (LP)
4 Thermocouple Connection Wire 1 IR30K-22-01(L=700) IR30K-22-01(L=700) IR30K-22-01(L=700) IR30K-22-01(L=700)
5 Ignition Wire 2 BF30K-38 (L=1050) BF30K-38 (L=1050) BF30K-38 (L=1050) BF30K-38 (L=1050)
6 Thermostatic Gas Valve, SIT 630 1 0630560 0630560 0630560 0630560
7 Manual Gas Valve 1 GS7A-GHP GS7E-GHP GS7D-GHP GS7D-GHP
8 Gas Selector Valve 1 GH01A-10K GH01A GH01A GH01A
9 Regulator Bracket 1 AQ000015 AQ000015 AQ000015 AQ000015
10-1 Regulator, (LP) Propane 10" WC 1 GR-130A3-GHP GR-130A2-GHP GR-130A-GHP GR-130A-GHP
10-2 Regulator, (NG) Natural Gas 5" WC 1 GR-130B3-GHP GR-130B2-GHP GR-130B-GHP GR-130B-GHP
11 Primary Air Shield 1 BF10K-28 BF30K-37 BF30K-37 BF30K-37
12 Front Air Deector 1 BF10K-27 BF20K-18 BF30K-36 BF30K-36
13 Front Grille 1 AQ000099 AQ000063 AQ000023 AQ000023
14 Wall Mounting Bracket 1 AQ000108 AQ000006 AQ000006 AQ000006
15 Ignitor Module 1 AQ000045 AQ000045 AQ000045 AQ000045
16 Ignitor Bracket 1 AQ000019 AQ000019 AQ000019 AQ000019
17 Knob, Selector Valve 1 AQ000251 AQ000251 AQ000251 AQ000251
18 Support Legs (Select Models) 2 AQ000038* AQ000038* AQ000038* AQ000038*
19 Fan Assembly (Select Models) 1 AQ000232* AQ000232* AQ000232* AQ000232*
20 Hardware Pack 1 AQ000233* AQ000233* AQ000233* AQ000233*
21 Nozzle-LP 1 BF10K-LP BF20K-LP BF30K-LP BF30K-LP
22 Nozzle-NG 1 BF10K-NG BF20K-NG BF30K-NG BF30K-NG

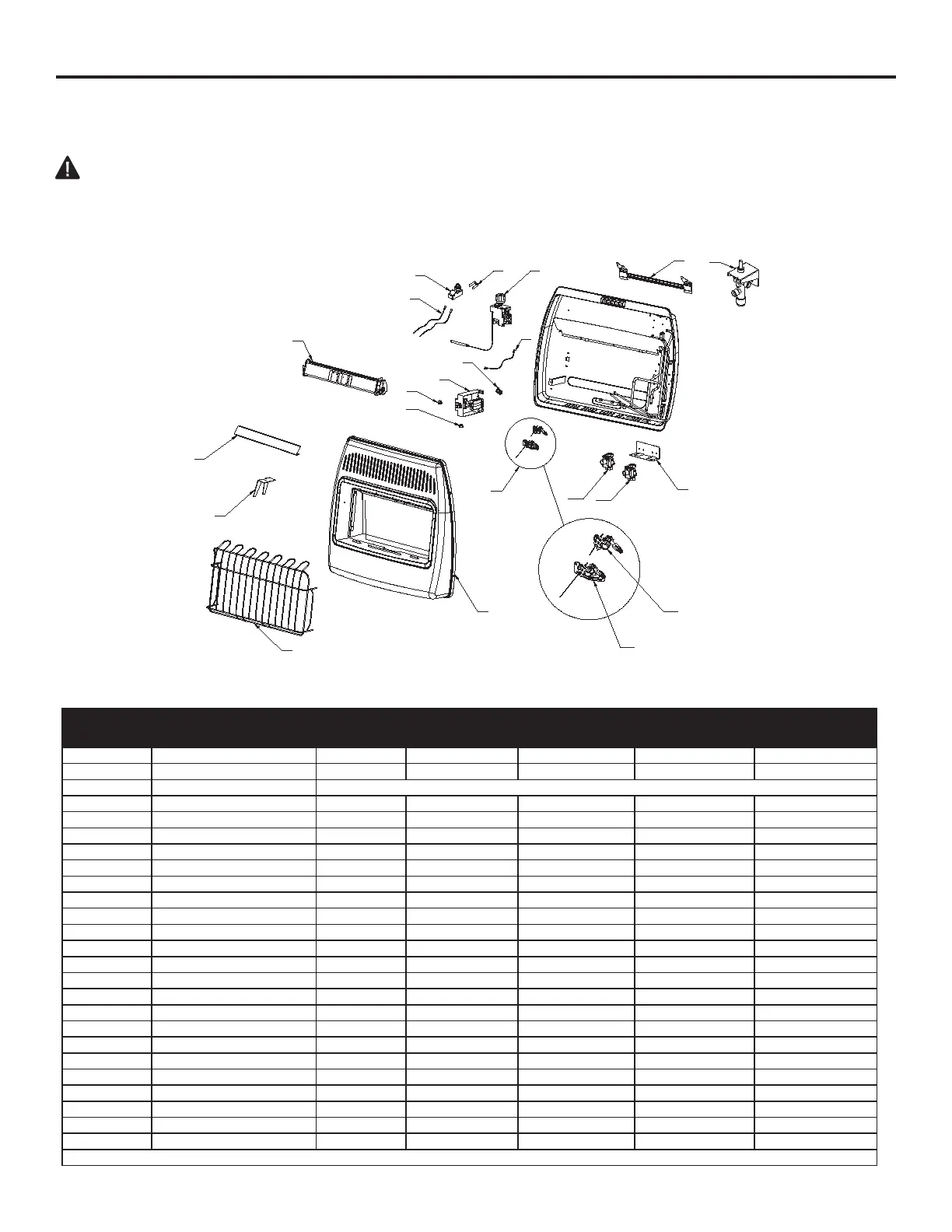

* Item/version not shown in exploded parts diagram
16
17
5
10-1
10-2
3-1
3-2
1
13
3
12
14
7
9
6
8
21
11
15
22
4
2
