24
Figure 2
CARE AND MAINTENANCE
Burner Assembly

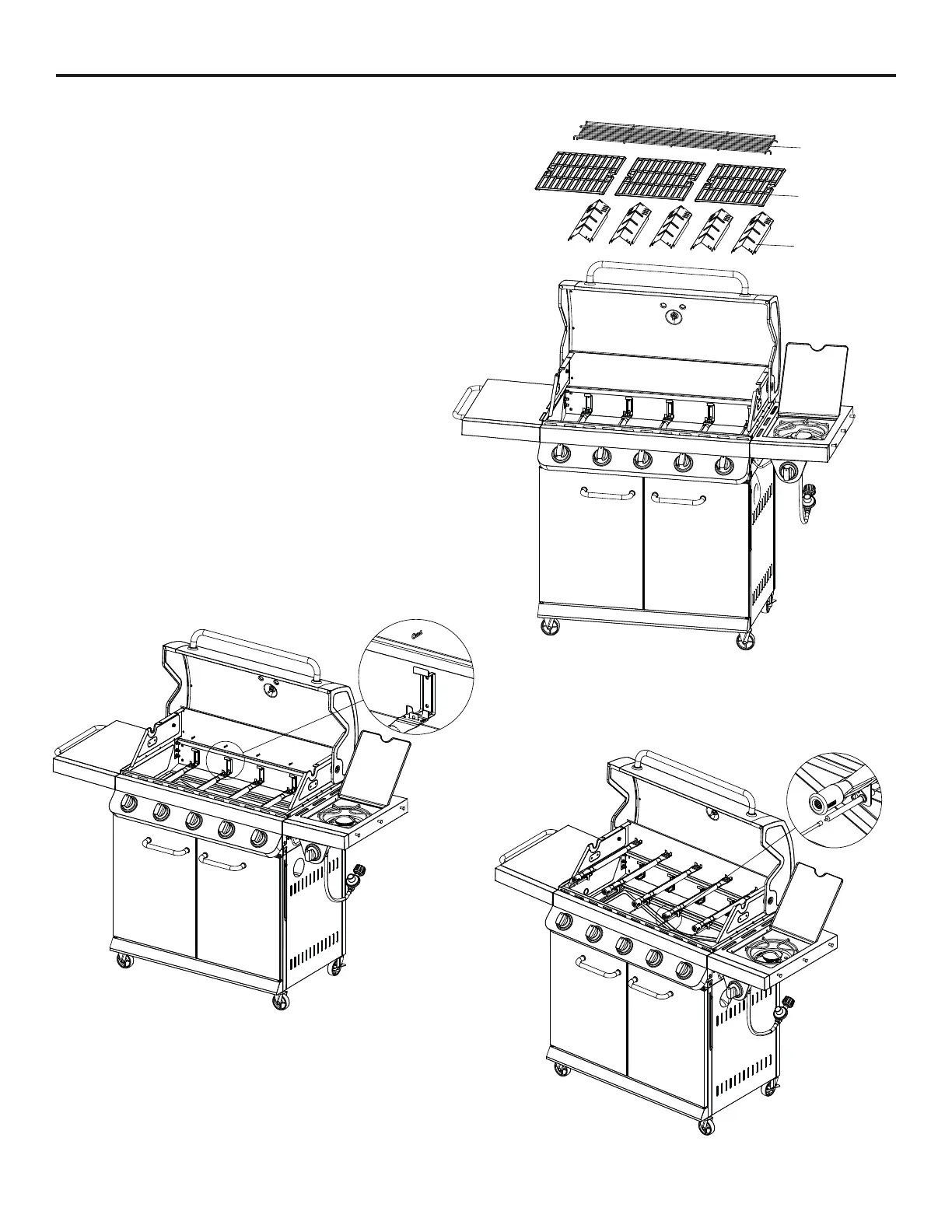

Removing The Burner Assembly
1. Make sure all control knobs are in the OFF
position, gas supply valve is closed, and the
gas hose is disconnected from the gas supply.
2. Open lid and remove warming rack, cooking
grates, and heat tents.
Warming
Rack
Cooking
Grates
Heat Tents
3. Remove hinge pin as illustrated in Figure 1.
6OLGHPDLQEXUQHUVRXWRI¿UHER[
5. Detach ignition wire from electrode in Figure 2.
Figure 1
To Next Page
