11
Hardware Used

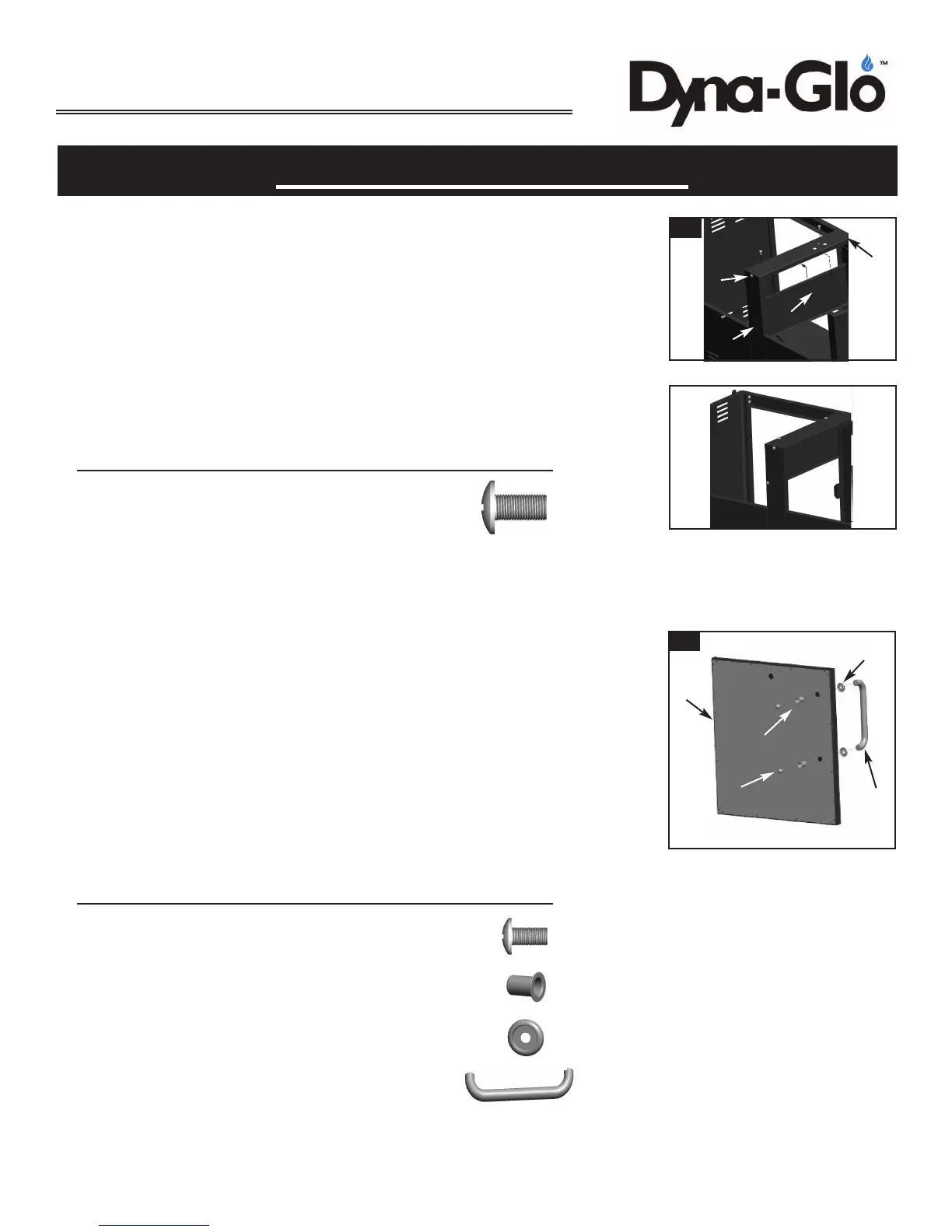

Step 6: Assemble the LP cylinder heat shield (31).
Install the LP cylinder heat shield (31) by placing it between
the cart middle cross beam (32) and the cart rear vertical beam
(30). Slide the LP cylinder heat shield (31) up to meet the
cart middle cross beam (32) so the screw holes are aligned.
Attach LP cylinder heat shield (31) to the cart middle cross
beam (32) using 2 screws (A). Attached the LP cylinder heat
shield (31) to the cart rear vertical beam (30) using 1 screw (A).
Tighten all screws.
Step 7: Assemble cabinet door handles (10).
Remove the pre-assemble cabinet door handle screws (G) and
the cabinet door handle bezels (11) from the cabinet door handle
(10). Insert 2 cabinet door handle sleeves (12) into the back of
the right door assembly (9). Align cabinet door handle (10) and
2 cabinet door handle bezels (11) on the front of the right door
assembly (9) and attach with 2 screws (G) inserted from the back
side of the right cabinet door assembly (9) and through the cabinet
door handle sleeves (12). Repeat step to attach left door
assembly (8).
Hardware/Parts Used
G M5x10 Screw Qty: 4 pcs
10 Door Handle Qty: 2 pcs
11 Handle Bezel Qty: 4 pcs
12 Handle Sleeve Qty: 4 pcs
G
11
10
Dual Fuel Grill
ASSEMBLY INSTRUCTIONS
A M6x12 Screw Qty: 3 pcs
6
3
0
3
1
32
A
7
12
9
