Dyna-Glo DGP700SSB - Grease Pan and Ash Collection

16

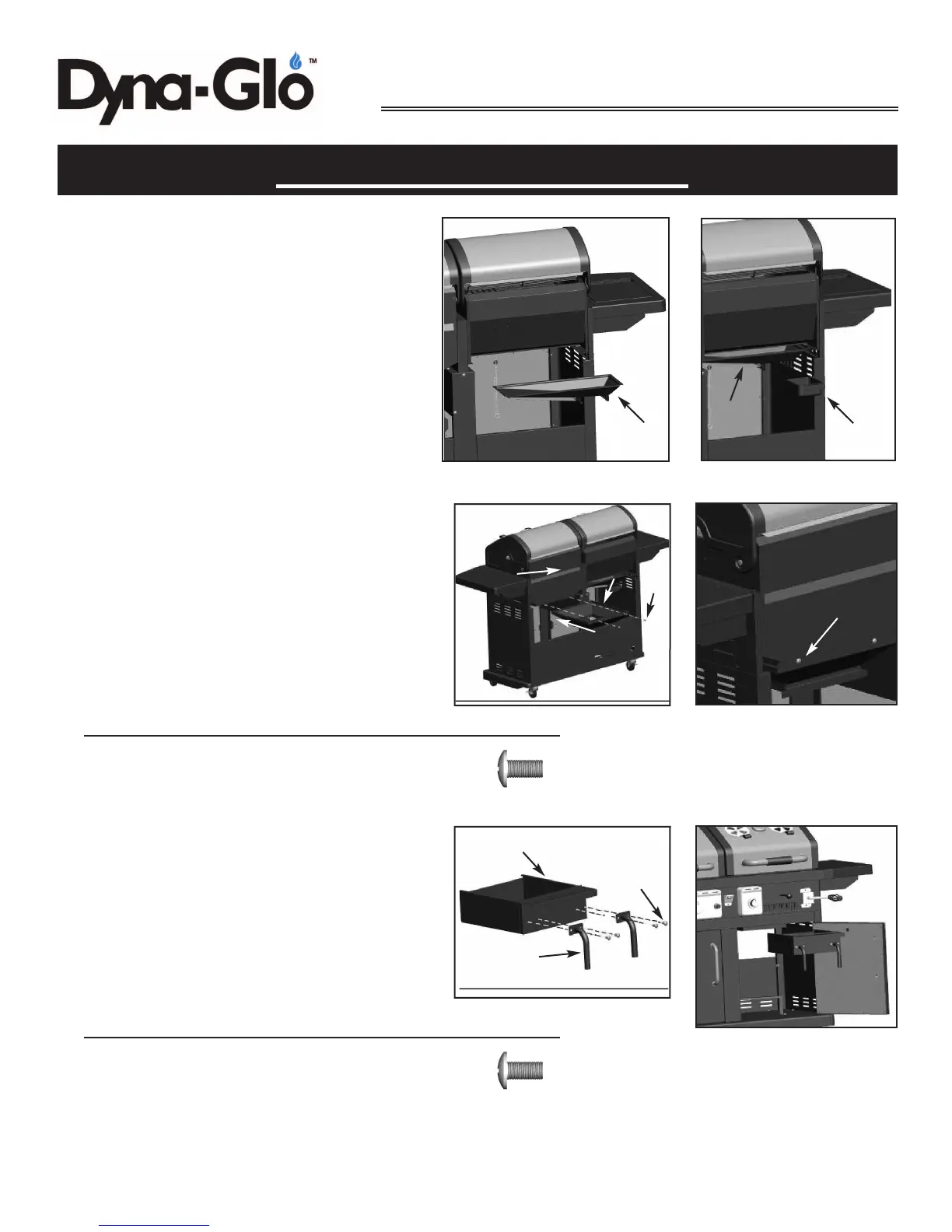

ASSEMBLY INSTRUCTIONS
Dual Fuel Grill
Step 16: Install the grease pan (17) and
grease cup (18).
Install the grease pan (17) and
grease cup (18) in the gas grill
body from the rear as illustrated.
Step 17: Assemble the ash collection frame (24).
From the rear, slide the ash collection
frame onto the guides of the charcoal grill
body and into position. Secure with 2
screws (G).
17
17
18
G
13
24
G
Hardware Used
G M5x10 Screw Qty: 2 pcs
Step 18: Install ash tray assembly (27).
Attach the ash tray handles (26) to the
ash tray (27) using 4 screws (G). From
the front, slide the ash tray assembly
onto the guides of the ash collector
frame (24) and into position.
27
24
G
Hardware Used
G M5x10 Screw Qty: 4 pcs
26
