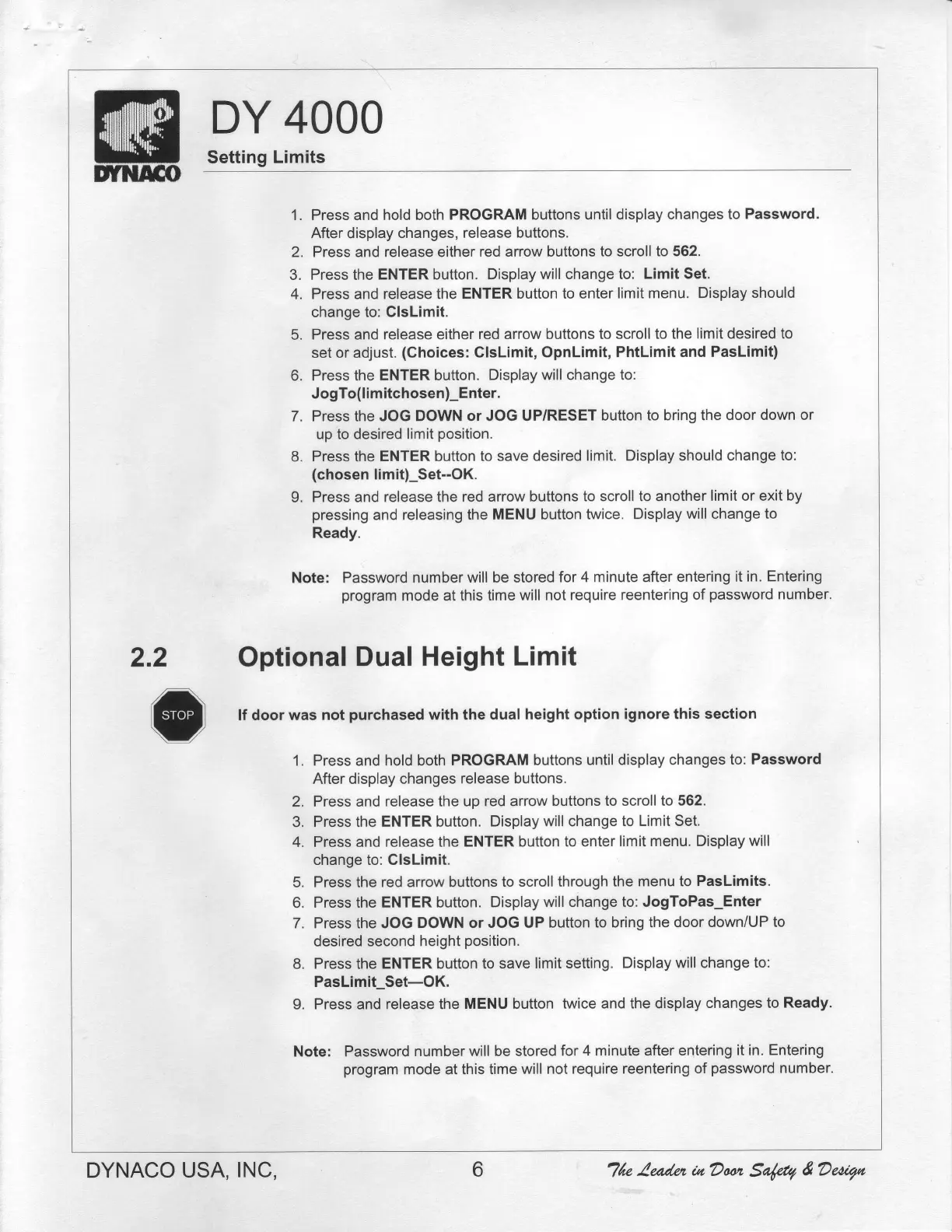

Setting Limits
M
DTXEfiO
1.
2.
3.
4.
5.
6.
Press and hold both
PROGRAM buttons until display
changes to
Password.
After
display
changes, release
buttons.
Press and release either
red arrow buttons
to
scroll
to 562.
Press the
ENTER button.
Display will change to:
Limit Set.
Press
and
release the
ENTER button to enter
limit menu.
Display should
change to: ClsLimit.
Press
and
release either
red arrow buttons
to scroll to the
limit
desired
to
set or adjust.
(Choices:
GlsLimit, OpnLimit,
Phtlimit
and PasLimit)
Press the
ENTER button.
Display will change to:
JogTo(limitchosen)_Enter.
7.
Press
the
JOG DOWN or JOG
UP/RESET
button to bring the
door down or
up
to desired limit
position.
8.
Press the ENTER button
to save desired
limit. Display should change
to:
(chosen
I
im it)_Set-OK.
9.
Press
and
release the
red arrow buttons
to scroll to another
limit or exit
by
pressing
and releasing the
MENU button
twice. Display
will change to
Ready.
Note: Password number
will be stored
for 4 minute after
entering it
in. Entering
program
mode at this
time will not
require reentering
of
password
number.
2.2 Optional
Dual
Height
Limit
lf door was
not
purchased
with the
dual height option
ignore this section
1. Press and hold both
PROGRAM buttons
until display changes
to:
Password
After display changes
release
buttons.
2. Press and
release the up red arrow
buttons to scroll to
562.
3.
Press the ENTER button.
Display will change
to Limit Set.
4.
Press
and
release the ENTER
button to enter
limit menu. Display
will
change
to: GlsLimit.
5.
Press
the
red arrow buttons
to scroll through
the menu to
Paslimits.
6. Press the ENTER
button. Display
will change to: JogToPas-Enter
7. Press the JOG
DOWN or JOG UP
button to bring the
door down/UP
to
desired second height
position.
8. Press the
ENTER button to save
limit setting.
Display will change
to:
PasLimit_Set-OK.
9.
Press and release the
MENU button twice
and the display
changes to
Ready.
Note: Password
numberwill be stored
for
4 minute after entering
it in. Entering
program
mode at this
time will
not require reentering
of
password
number.
6
DYNACO
USA,
INC, 74e.4,eAd//,
hDaan
Sd*l/l
&Deoey
