PSX 1250 - General Overview
\
>X'
i

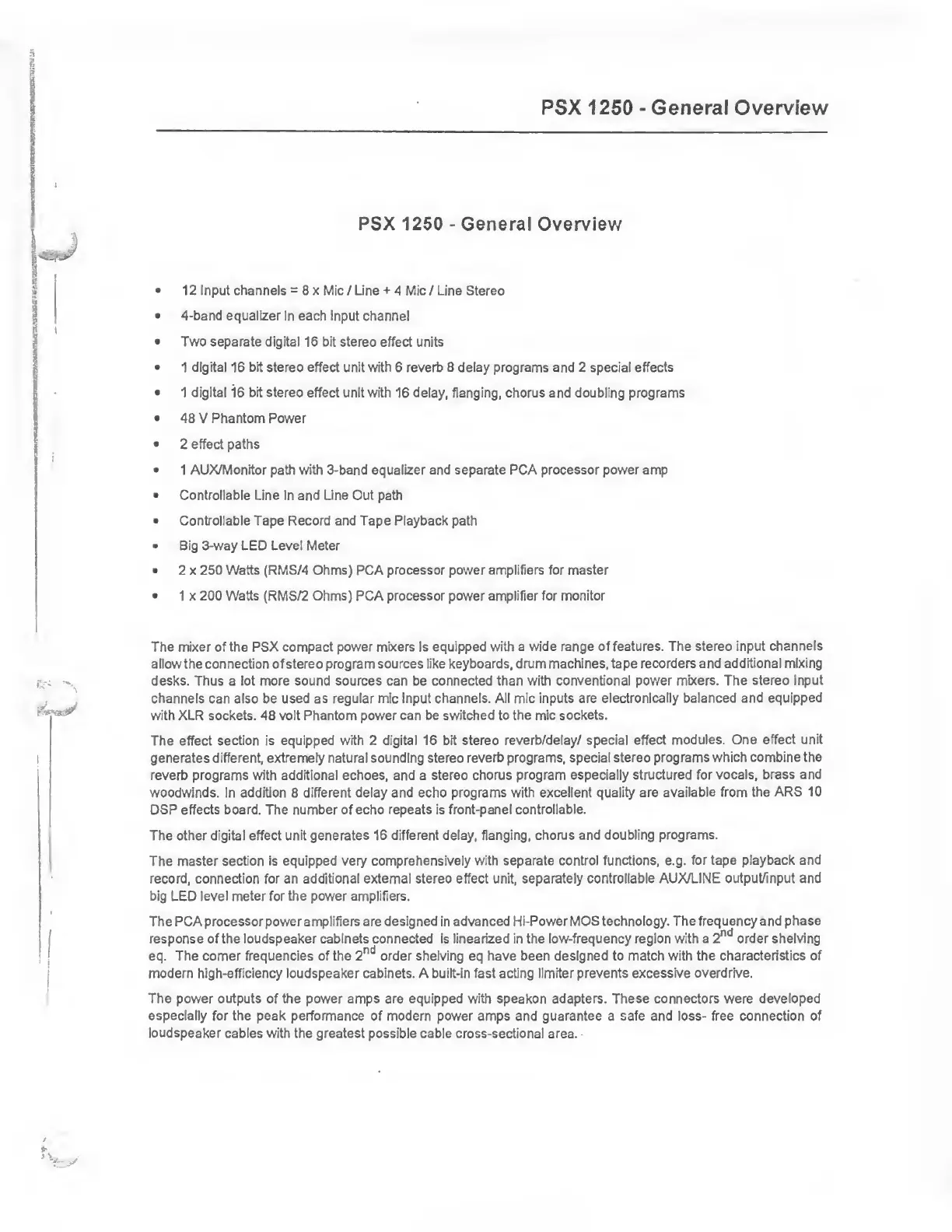

PSX 1250 - General Overview
• 12 Input channels = 8x Mic/Line + 4 Mic/ Line Stereo
• 4-band equalizer in each input channel
• Two separate digital 16 bit stereo effect units
• 1 digital 16 bit stereo effect unit with 6 reverb 8 delay programs and 2 special effects
• 1 digital 16 bit stereo effect unit with 16 delay, flanging, chorus and doubling programs
• 48 V Phantom Power
• 2 effect paths
• 1 AUX/Monitor path with 3-band equalizer and separate PCA processor power amp
• Controllable Line In and Line Out path
• Controllable Tape Record and Tape Playback path
• Big 3-way LED Level Meter
• 2 x 250 Watts (RMS/4 Ohms) PCA processor power amplifiers for master
• lx 200 Watts (RMS/2 Ohms) PCA processor power amplifier for monitor
The mixer of the PSX compact power mixers is equipped with a wide range of features. The stereo input channels
allow the connection of stereo program sources like keyboards, drum machines, tape recorders and additional mixing
desks. Thus a lot more sound sources can be connected than with conventional power mixers. The stereo input
channels can also be used as regular mic input channels. All mic inputs are electronically balanced and equipped
with XLR sockets. 48 volt Phantom power can be switched to the mic sockets.
The effect section is equipped with 2 digital 16 bit stereo reverb/delay/ special effect modules. One effect unit
generates different, extremely natural sounding stereo reverb programs, special stereo programs which combine the
reverb programs with additional echoes, and a stereo chorus program especially structured for vocals, brass and
woodwinds. In addition 8 different delay and echo programs with excellent quality are available from the ARS 10
DSP effects board. The number of echo repeats is front-panel controllable.
The other digital effect unit generates 16 different delay, flanging, chorus and doubling programs.
The master section is equipped very comprehensively with separate control functions, e.g. for tape playback and
record, connection for an additional external stereo effect unit, separately controllable AUX/LINE output/input and
big LED level meter for the power amplifiers.
The PCA processor poweramplifiers are designed in advanced Hi-PowerMOS technology. The frequency and phase
response of the loudspeaker cabinets connected is linearized in the low-frequency region with a 2 nd order shelving
eq. The comer frequencies of the 2 nd order shelving eq have been designed to match with the characteristics of
modern high-efficiency loudspeaker cabinets. A built-in fast acting limiter prevents excessive overdrive.
The power outputs of the power amps are equipped with speakon adapters. These connectors were developed
especially for the peak performance of modern power amps and guarantee a safe and loss- free connection of
loudspeaker cables with the greatest possible cable cross-sectional area.
