Programming Set Points and Relays
Remove the top plate from the SST-2000A/H to reveal DIP switches B and C.
Use DIP switches B and C to program relay set points to:
t
energize (OFF) / de-energize (ON) on alarm
t
non-latch (OFF) / latch (ON) on alarm
t
actuate SPST (OFF) / DPDT (ON) trip on alarm
t
change proportional voltage output
The underside of the top plate contains labels for each DIP switch setting.
Resetting a latched relay
To momentarily reset a latched relay, jumper terminals 32 and 7.
25
Calibrating the Speed Switch

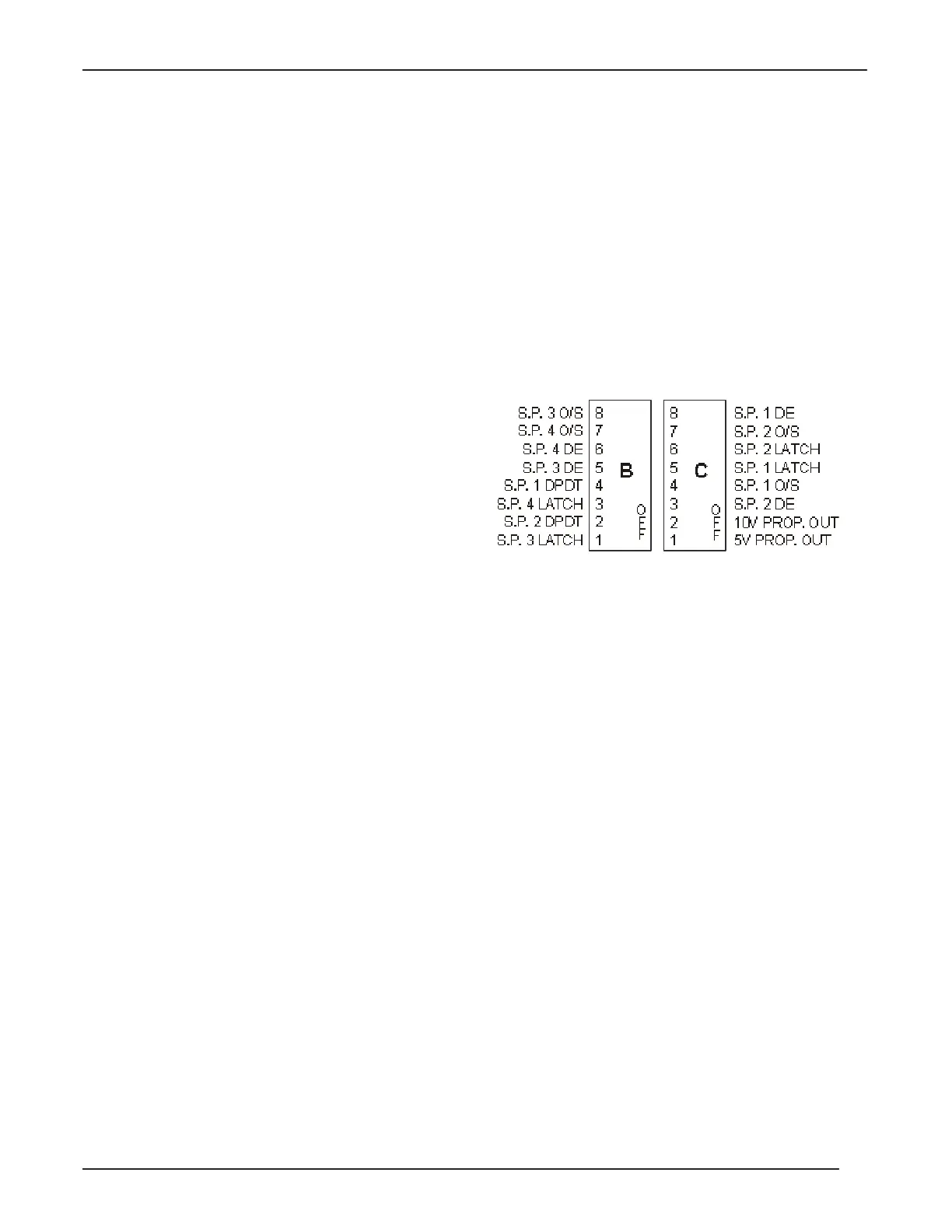

Fig. 4-11 The DIP switch settings
available to you depend on the model
of speed switch you purchased:
t SST-2400A/H series switches have
four set point relay adjustments
(DIP switches B and C).
t SST-2200A/H series switches only
have relays 1 and 2 (adjustable
using DIP switch C).
t SST-2000A/H switches have no set
point relays.
