Powering Zero Velocity Pickups and Other Loads
The regulated 14 Vdc supply brought out at terminals 11 (+) & 4 (–) has a
capacity of 40 mA. This output can power zero velocity pickups (e.g. M928) and
digital indicators like a DPM-105.
1 Connect the M928 pickup as indicated in Fig. 3-5.
2 Jumper terminals 11 and 30 to desensitize the input signal to a 1.0 V
threshold.
3 Adjust signal sensitivity if necessary. See page 27 for instructions on
how to adjust input sensitivity.
16
Chapter 3

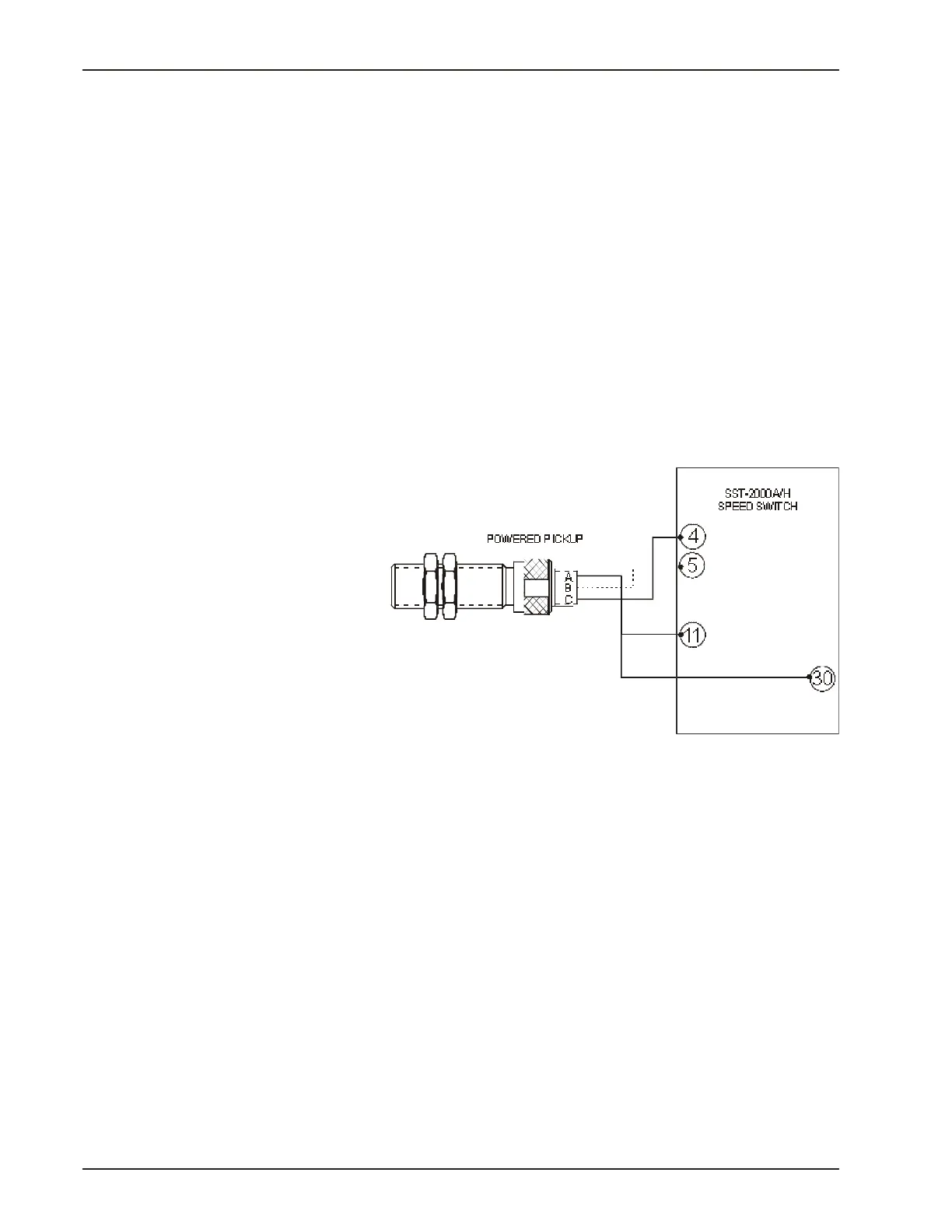

Fig. 3-5 Jumper
terminals 11 and 30 to
desensitize the input
signal circuit to a
one-volt threshold.
