Included Items
JST_XH balance adapter (DYN5032)
Banana plug to EC3
™
battery connector (DYNC0066)
AC power cord (one region—US, EU, AU or UK)
Banana to Deans insulated charge adapter: male (DYNC0053)
Charger lead with receiver connector (DYNC0033)
Optional Items
DC power cord (DYNC1103)
Banana to Traxxas
®
insulated charge adapter: male (DYNC0054)
Temperature Sensor (DYN5033)
SPECIFICATIONS
Input Voltage 100–240V AC (50–60Hz); 11–18V DC
Charging Capability 1–6S Li-Po/Li-Ion/Li-Fe; 1–15C Ni-Cd/Ni-MH; 2–20V Pb
Charge Current 0.1A–10A (in 0.1A increments/100W max)
Discharge Current 0.10A–5.0A (in 0.1A increments/10W max)
Operating Temperature 0ºC to + 50ºC
Charging Mode Ni-Cd/Ni-MH: Peak; Li-Po/Li-Ion/Li-Fe/Pb: CC/CV
Protection Short-circuit, over-current, reverse polarity, low input voltage,
over-temperature

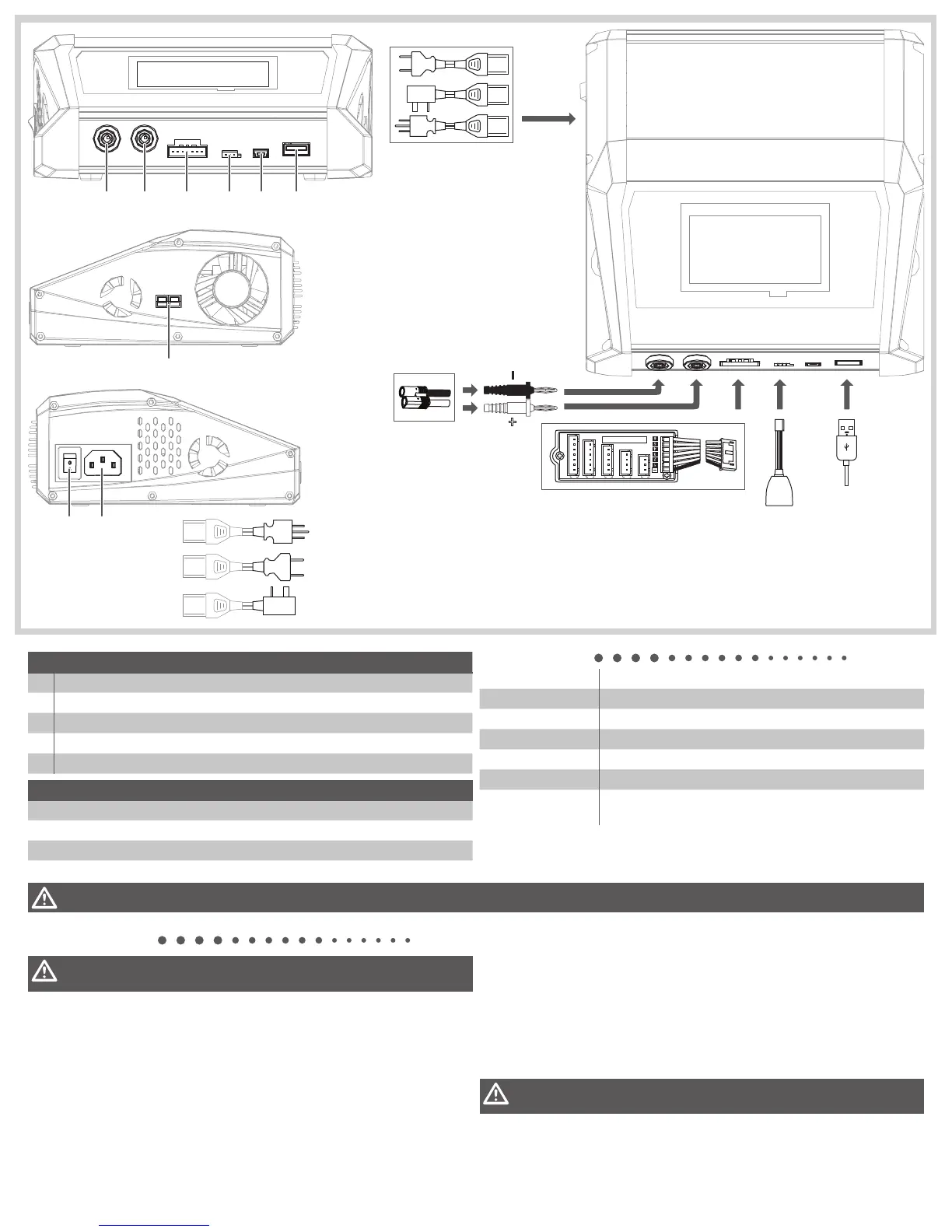

JST_XH ADAPTER
2S 3S 4S 6S5S
J
A B C D E F
G H
I
A. Power Output Black (–)
B. Power Output Red (+)
C. Balance Circuit Adapter Board Connector
D. Temperature Sensor Port
E. Micro USB Port (Software updates ONLY;
do not use for charging)
F. 2.1A USB Power Output Port
G. Power Switch
H. AC Power Input Port
I. DC Power Input Port
J. LCD Touch Screen
Not to scale.
Not all wiring shown.
Not all connectors shown.
CAUTION: Never connect the AC and DC input cords to an active power source at the same
time. This will void the warranty, cause product damage and possibly injure the user.
When Using an External DC Power Source:
1. Ensure the charger is powered OFF.
2. Connect the DC power cord to the charger DC Power Input Port (I).
3. Connect the DC alligator clips to the DC power source.
4. Power ON the charger with the Power Switch (G).
5. When the charger is powered ON, a message will appear on the LCD Touch Screen (J).
NOTICE: Always connect cable polarities correctly.
NOTICE: Always consult 12V battery collateral materials or Horizon Hobby before using with sources
other than a standard AC wall outlet.
When Using an External AC Power Source:
1. Ensure the charger is powered OFF.
2. Connect the AC power cord to the charger AC Power Input Port (H).
3. Connect the AC power cord to the AC power source.
4. Power ON the charger with the Power Switch (G).
5. When the charger is powered ON, a message will appear on the LCD Touch Screen (J).
Connecting the Battery to the Charger:
CAUTION: Always power ON the charger before connecting a battery, or damage to the
charger and the battery can result.
1. Connect the charger to the power source.
2. Power ON the charger.
3. Select the charging settings.
4. Connect the battery to the charger.
5. Start battery charging.
CAUTION: Before charging, always ensure you have chosen the correct battery chemistry type for the battery you are charging.
