7

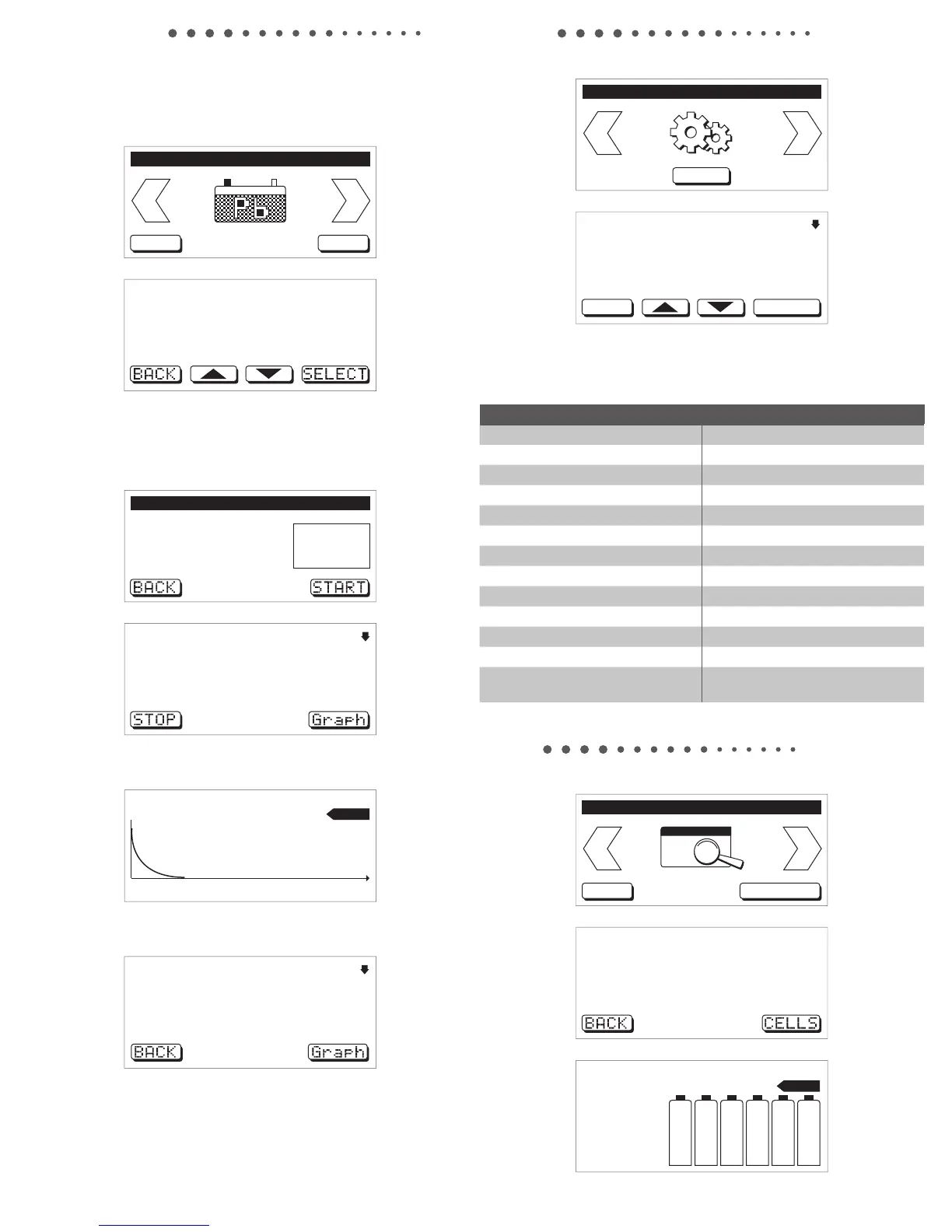

9 - PB DISCHARGING
1. Connect the banana plugs of the battery adapter cable to the Power Output Black (–)
and Power Output Red (+), making sure that the positive and negative connectors are not
reversed.
2. Connect the battery connector to the battery adapter cable.
3. Press the Left and Right Arrows on the LCD Touch Screen to scroll through the main menu
screens until you reach Program Select=Pb.
Program select=Pb
CHG DCHG
4. Press DCHG.
Pb DISCHARGE
Pack. Volt. : 2V/1P
Capacity : 50mAh
Current : 0.1A
Press&Hold : DISCHRG
5. Press a parameter to highlight that parameter.
6. Press the Up and Down Arrows to edit the parameter.
7. Press Select to save the parameter.
8. Once the parameters are at the desired settings, press and hold DISCHRG.
9. The charger will check the battery and charger settings and display the following screen:
Pb DCHG Confirm
-Connect- -Check-
Input • • • • OK Set: 6P
BATT. • • • • OK Read: 5P
10. Press START. The charger will beep and display the following screen:
Pb DCHG 000:19S
Capacity : 8mAh
Current : 1.7A
Voltage : 11.60V
Resistance : ****mΩ
Peak Temp. : No sens
11. Press the arrow in the top right of the LCD Touch Screen to see the rest of the discharging
information.
12. Press Graph to see the battery voltage graph. Press Back to return to the Discharging screen.
Data Pb = Graph
11.54V 000:32S
BACK
13. Press STOP at any time to stop discharging.
14. When discharging is complete, the charger will sound a series of beeps and display the
following screen:
Pb DONE 000:19S
Capacity : 8mAh
Current : 1.7A
Voltage : 11.60V
Resistance : ****mΩ
Peak Temp. : No sens
15. Disconnect the battery from the charger.
11 - VIEW
1. Press the Left and Right Arrows on the LCD Touch Screen to scroll through the main menu
screens until you reach Program Select=View.
VIEW BALANCE
Program select=View
2. Press VIEW. The screen will display the current charger status.
DATA VIEW
Input Volt : 15.30V
Output Volt : 0.02V
Int Temp. : 29ºC
Ext Temp. : No sens
Resistance : ****mΩ
3. Press CELLS to view the connected lithium battery’s individual cell voltage.
DATA VIEW–CELLS
1 > 0.00
2 > 0.00
3 > 0.00
4 > 0.00
5 > 0.00
6 > 0.00
BACK
10 - SETUP
1. Press the Left and Right Arrows on the LCD Touch Screen to scroll through the main menu
screens until you reach Program Select=Setup.
Program select=Setup
SETUP
2. Press SETUP.
USER SETUP [1/3]
Temp (ºC/ºF) : ºC
Temp Cutt-Off : 60ºC
Input Low Volt : 10.0V
Safety Timer : 240min
Balance Volt : 0.01V
BACK SELECT
3. Press a parameter to highlight that parameter.
4. Press the Up and Down Arrows to edit the parameter.
5. Press Select to save the parameter.
6. Press the top right of the LCD Touch Screen to get to the next set of parameters.
Parameters
Temperature °C/°F
Temperature Cutoff 68–176°F (20–80°C)
Input Power Low Voltage Cutoff 10.0V–15.0V
Safety Timer 1–720 minutes
Balance Voltage 0.01V–0.03V
Back Light OFF–100%
Melody 1–5
Button Sound ON/OFF
Buzzer Sound ON/OFF
Buzzer Volume 0–100%
Username Enter your name here
Version
Factory Reset
Press and hold FCTY RST to return the charger
to default factory settings.
