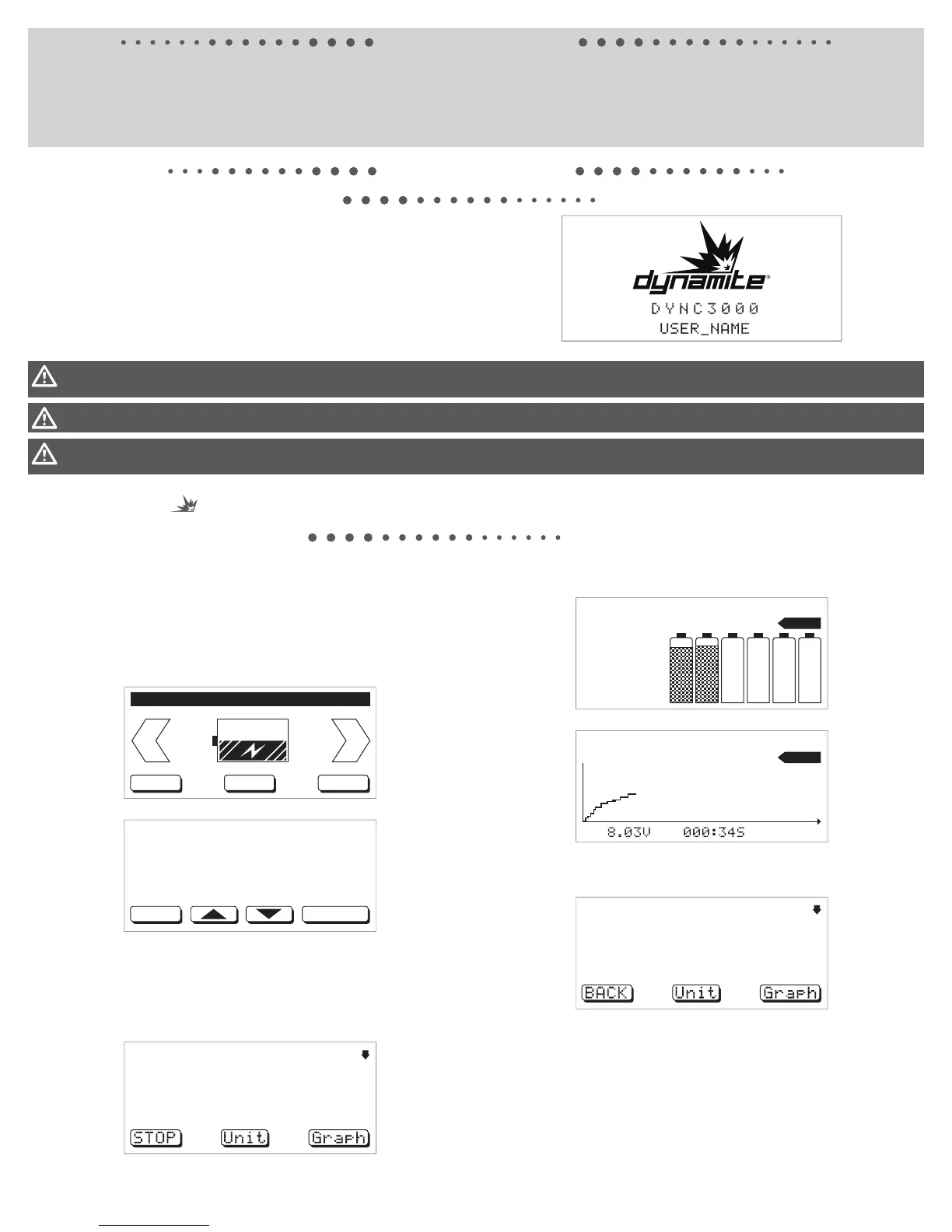

PROGRAMMING QUICK GUIDE
1. Press the Left and Right Arrows on the LCD Touch Screen to scroll through the
main menu screens.
2. Press the action at the bottom of the LCD Touch Screen to enter that menu.
3. Press a parameter to highlight that parameter.
4. Press the Up and Down Arrows to edit the parameter.
5. Press Select to save the parameter.
6. If there is more than one screen of parameters, press the top right corner of the LCD Touch
Screen to scroll through the parameter screens.
7. Press Back to return to the main menu screens.
When the charger is powered ON, there is a series of self tests and the screen will show the
charger brand name and model number.
OPERATING YOUR CHARGER
CAUTION: If at any time during the charge process the battery pack becomes hot or begins to puff disconnect the battery immediately and discontinue the charge process as batteries can
cause fire, collateral damage and injuries.
CAUTION: Using a charge rate that is not compatible with the battery capacity may result in damage or malfunction of the charger or battery.
CAUTION: The Lithium charge program menus are to be used ONLY for the charging and discharging of Lithium battery packs. Charging other battery types using the Lithium charge programs
will damage the battery or the charger.
1 - SELF TEST AND PROGRAM SELECT SCREENS
1. Connect the banana plugs of the battery adapter cable to the Power Output Black (–) (A)
and Power Output Red (+) (B), making sure that the positive and negative connectors are not
reversed.
2. Connect the JST_XH balance adapter to the Balance Circuit Adapter Board Connector (C).
3. Connect the battery connector to the battery adapter cable.
4. Connect the balance connector of the battery to the JST_XH balance adapter.
5. Press the Left and Right Arrows on the LCD Touch Screen to scroll through the main menu
screens until you reach Program Select=Li-Po/Li-Ion/Li-Fe.
Program select=LiPo
LiPo
CHG DCHG STOR
6. Press CHG.
LiPo CHARGE
Pack.Volt. : 11.1V/3S
Capacity : 1050mAh
Current : 1.0A
End Cell Volt : 4.20V
Press&Hold : CHARGE
BACK SELECT
7. Press a parameter to highlight that parameter.
8. Press the Up and Down Arrows to edit the parameter.
9. Press Select to save the parameter.
10. Once the parameters are at the desired settings, press and hold CHARGE.
11. The charger will check the battery and charger settings and charging will begin. The charger
will beep and display the following screen:
LiPo CHG 000:11S
Capacity : 11mAh
Current : 4.0A
Voltage : 8.00V
Resistance : ****mΩ
Peak Temp. : No sens
12. Press the arrow in the top right of the LCD Touch Screen to see the rest of the Charging
information.
13. Press Unit to see the voltages for each cell. Press Back to return to the charging screen.
DATA LiPo–CELLS
1 > 3.97
2 > 3.98
3 > 0.00
4 > 0.00
5 > 0.00
6 > 0.00
BACK
14. Press Graph to see the battery voltage graph. Press Back to return to the charging screen.
15. Press STOP at any time to stop charging.
16. When charging is complete, the charger will sound a series of beeps and display the following
screen:
LiPo DONE 010:28S
Capacity : 169mAh
Current : 0.0A
Voltage : 8.00V
Resistance : ****mΩ
Peak Temp. : No sens
17. Disconnect the battery from the charger.
2 - LITHIUM (LI-PO/LI-FE/LI-ION) CHARGING
Only Li-Po is shown in the following three sections. Li-Ion/Li-Fe menus differ ONLY in Cell and Pack Voltage values.
