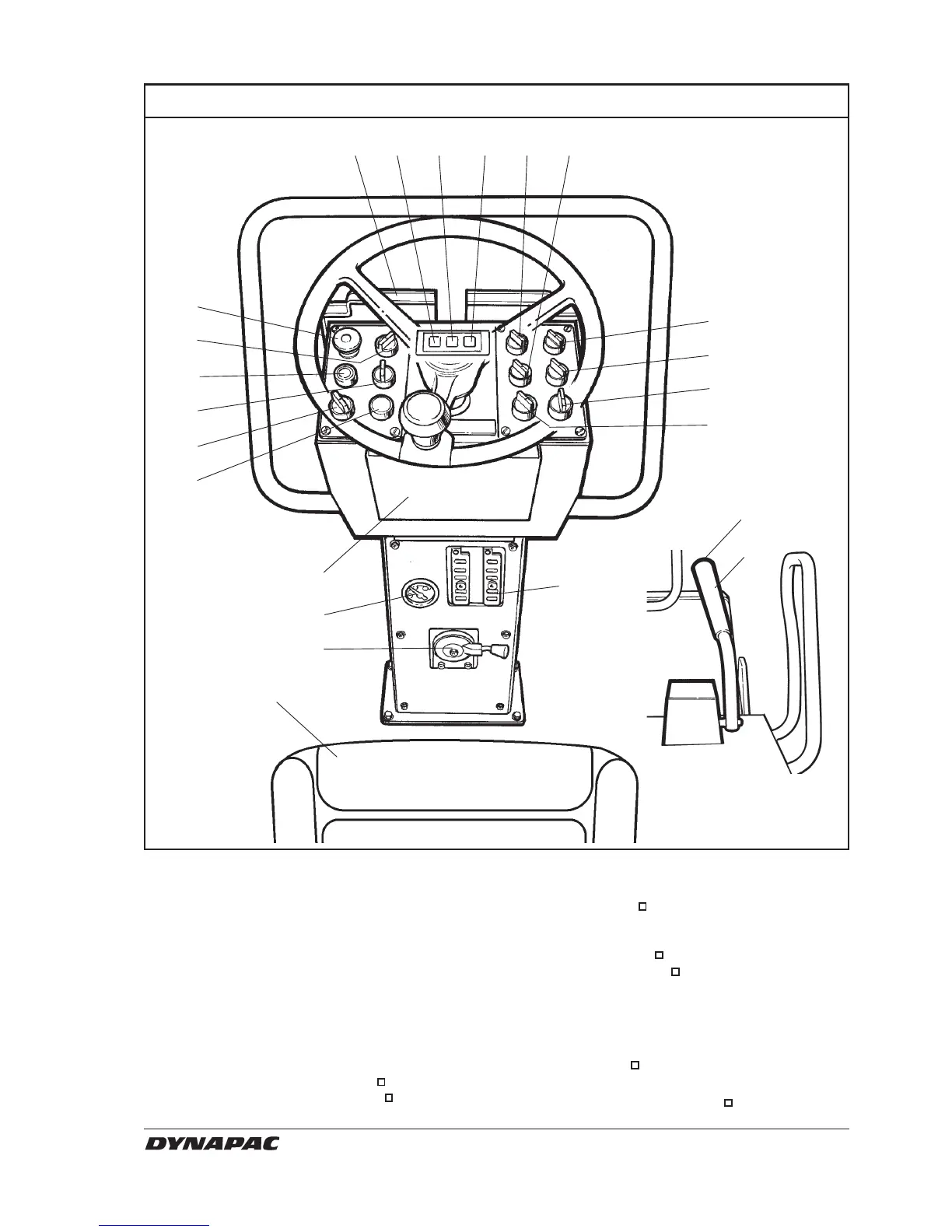

Fig. 7 Operator’s station
789101112
13
14
16
15
6
5
4
3
2
1
17
22
19
20
21
13. Driving lights
14. Sprinkler rubber wheel (Combo)/
vibration front/rear drum
15. Hazard flashers
16. Direction indicator
17. Safety and instruction manuals
18. Fuse boxes
19. Rev control
20. Vibration ON/OFF
21. Forward/reverse lever
22. Fuel gauge
23. Seat switch
1.Horn
2.Ignition switch
3.Manual/Automatic sprinkler
4.Starter button
5.Manual/Automatic vibration
6.Reserve/parking brake
7.Instrument protection
8.Warning lamp, charging
9.Brake warning lamp
10. Warning lamp, oil pressure/
engine temp.
11. Working lights
12. Hazard beacon
18
=Optional
23
INSTRUMENTS AND CONTROLS
