17
CC 102/C/122/C/132/142/C O102EN3
19
6914

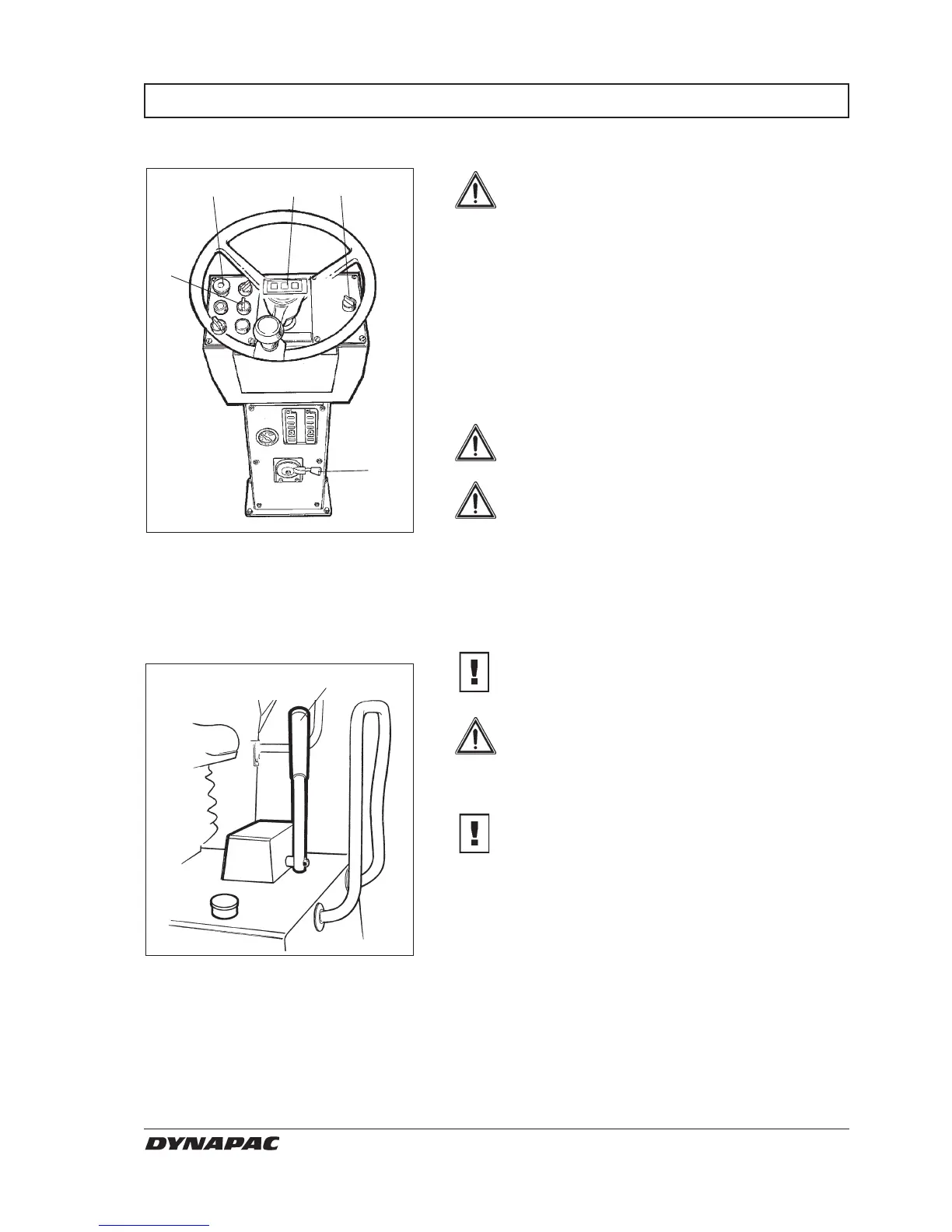

Fig. 19 Instrument column
3. Sprinkler switch (drum)
6. Reserve/parking brake knob
9. Brake warning lamp
14. Sprinkler switch (rubber tires)
19. Rev control
3
Driving the roller
21
Fig. 20 Forward/reverse lever
OPERATION
Under no circumstances may the machine
be operated from the outside. The operator
must remain seated inside the machine
during all operation.
Turn the rev control (19) and latch it in its working
mode.
Check that the steering is working by turning the
steering wheel once to the right and once to the left,
while the roller is stationary.
When compacting asphalt, remember to turn on the
watering unit (3), on combo rollers also (14).
Make sure that the area in front of and
behind the roller is clear.
Pull up the reserve/parking brake knob (6)
and check that the warning lamp for the
parking brake is out. When starting the
roller on a slope, be prepared that it may
begin to roll.
Combo machines only:
Inspect the tire tread now and then to detect
asphalt compound that has fastened, this is
likely until the tires are sufficiently warm.
Mixing 2–4% cutting oil in the sprinkler water
for the tires can prevent fastening.
Carefully move the forward/reverse lever (21) in the
desired direction of travel. Speed increases as the
lever is moved farther from the neutral position.
Speed must always be regulated with the
forward/reverse lever and never by changing
the engine speed.
Test the reserve brake by pressing the
reserve/parking brake knob (6) while the
roller is running slowly forward.
