24 CC102/C/122/C/132/142/C M102EN4
Place the roller on a level base. The engine
must be switched off and the reserve/par-
king brake knob pushed in for all checking
and adjustments on the roller unless other-
wise specified.
Release the filter insert (4) from the handle (5).
Discard the filter in a safe manner, it is not
reusable and cannot be cleaned.
Mount the new insert on the handle, refit the unit into
the filter holder (6), and refit the red cover.
Start the engine and let it run at full revs for half a
minute, checking that the filter cover (3) remains tight.
Make sure that ventilation (extraction) is
adequate if the engine is run indoors.
(Risk of carbon monoxide poisoning).

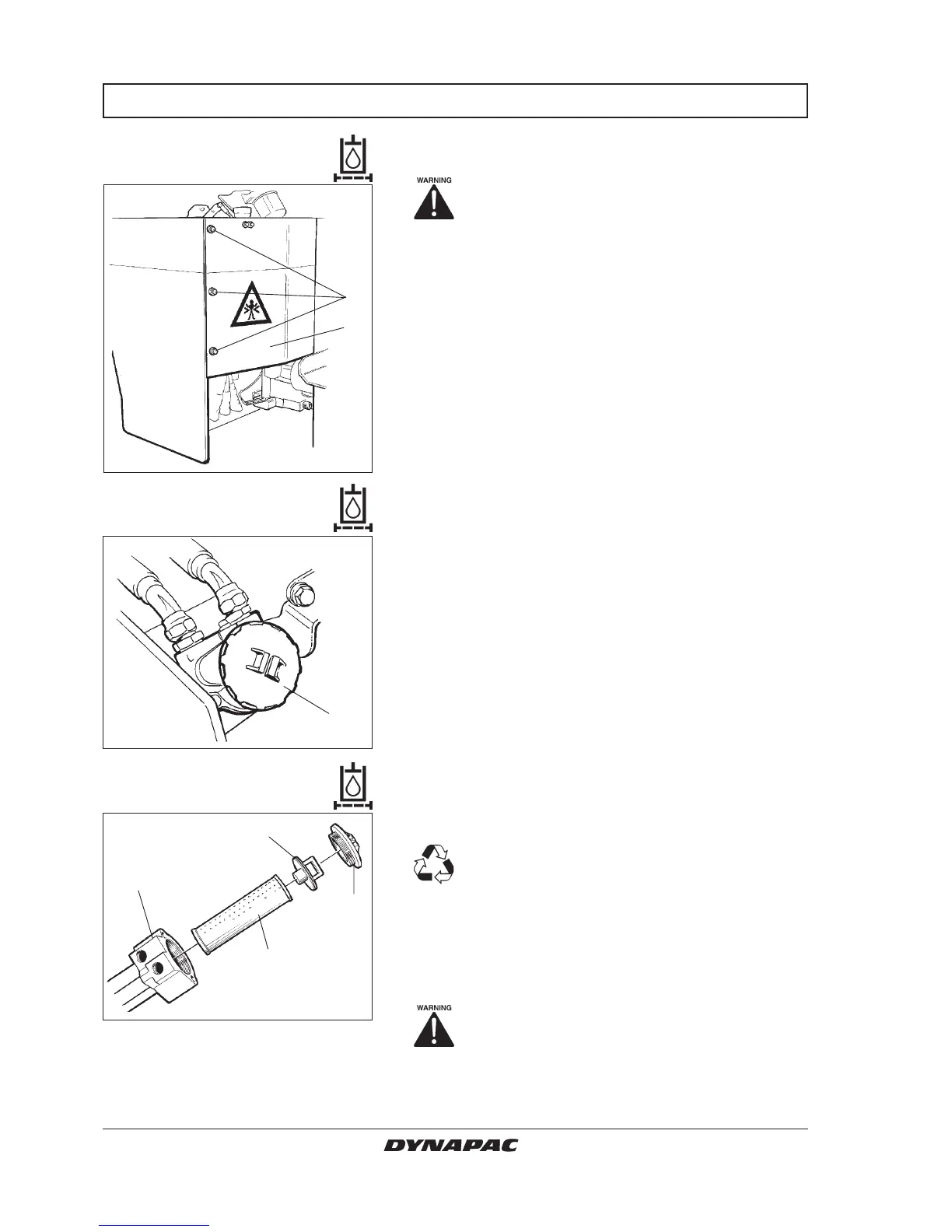

Fig. 38 Hydraulic filter
3. Cover
4. Filter insert
5. Handle
6. Filter holder
6
3
5
4
Release the red cover (3) and pull up the filter insert
(4).
Refit the red cover temporarily, to prevent dust and dirt
from entering the tank.
3
Fig. 37 Hydraulic filter
3. Cover
Unscrew the six fastening screws (1).
Remove the safety plate (2).
1
2
Fig. 36 Engine compartment
1.Fastening screws
2.Safety plate
Hydraulic filter
– Replacement
