Rev. 01/11 -3.3- TFXL-X
Click on the button labeled Configuration for updating flow range,
liquid, pipe and I/O operating information. The first screen that
appears after clicking the Configuration button is the BASIC tab.
1. BASIC TAB — See Figure 3.3
General Units allows selection of either English (U.S.) or Metric
units of measure. If measurements of the pipe are to be entered
in inches, select English. If pipe measurements are to be entered
in millimeters, select Metric. It is recommended that if the
General Units are altered from those at instrument startup, that
the Download button be pressed on the lower right-hand portion
of the screen and that the TFXL have its power cycled.
Standard Configurations contains the most popular
applications for the TFXL. TFXL flow meters with DTTN/DTTH
transducers have been constructed and configured at the
Dynasonics factory per the specifications provided with each
customer order. If the Standard Configuration does not match
the pipe schedule or material, select the proper configuration
from the drop down list. If the pipe schedule is not listed or if the
liquid is not water, select Other on the drop down list and fill in
the proper information on the setup screen.
NOTE: TFXL flow meters with DTTS/DTTC transducers have been
constructed and configured for a specific pipe size and material and
should not be reconfigured.
PART 3 - PROGRAMMING

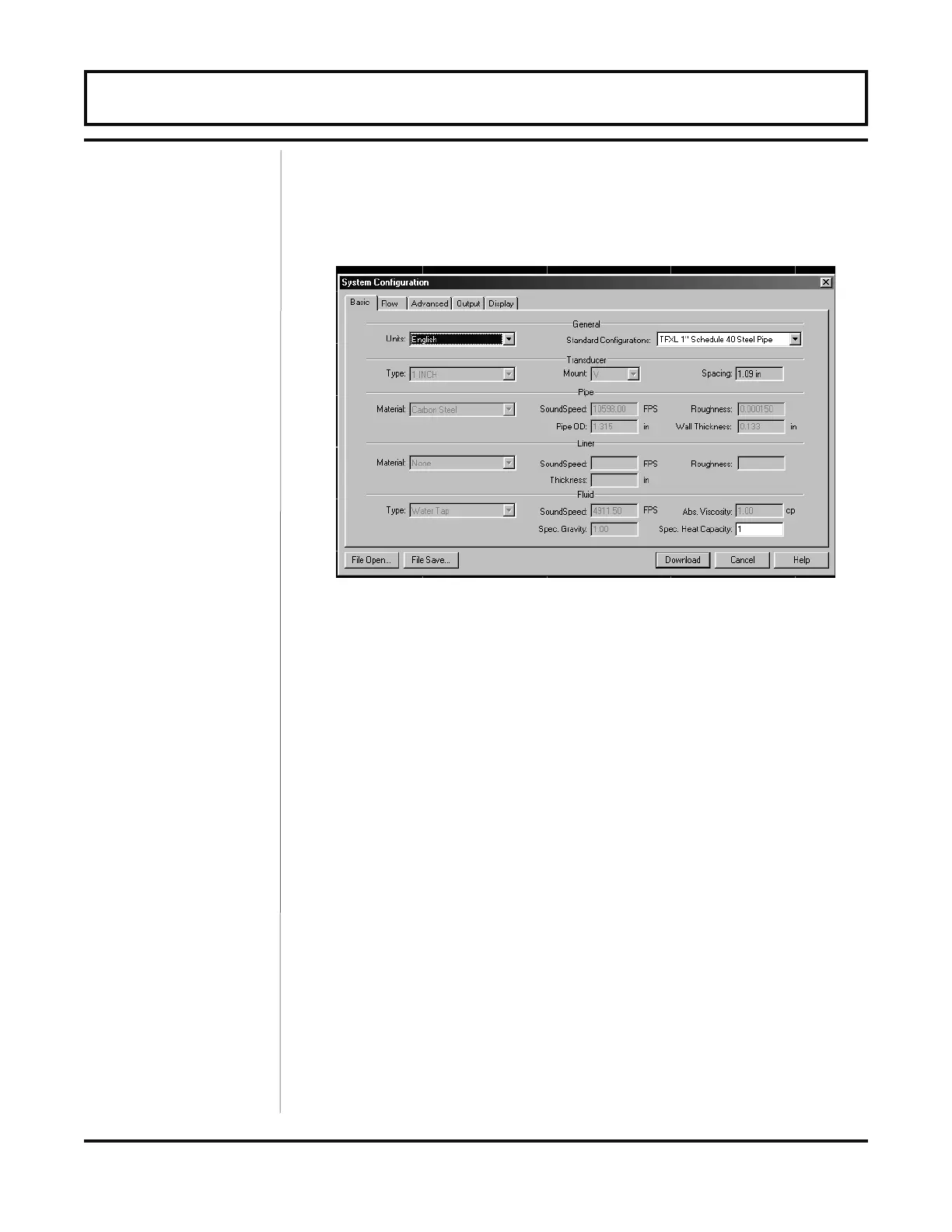

Figure 3.3
Basic Tab
Pipe and Liquid
Configuration
