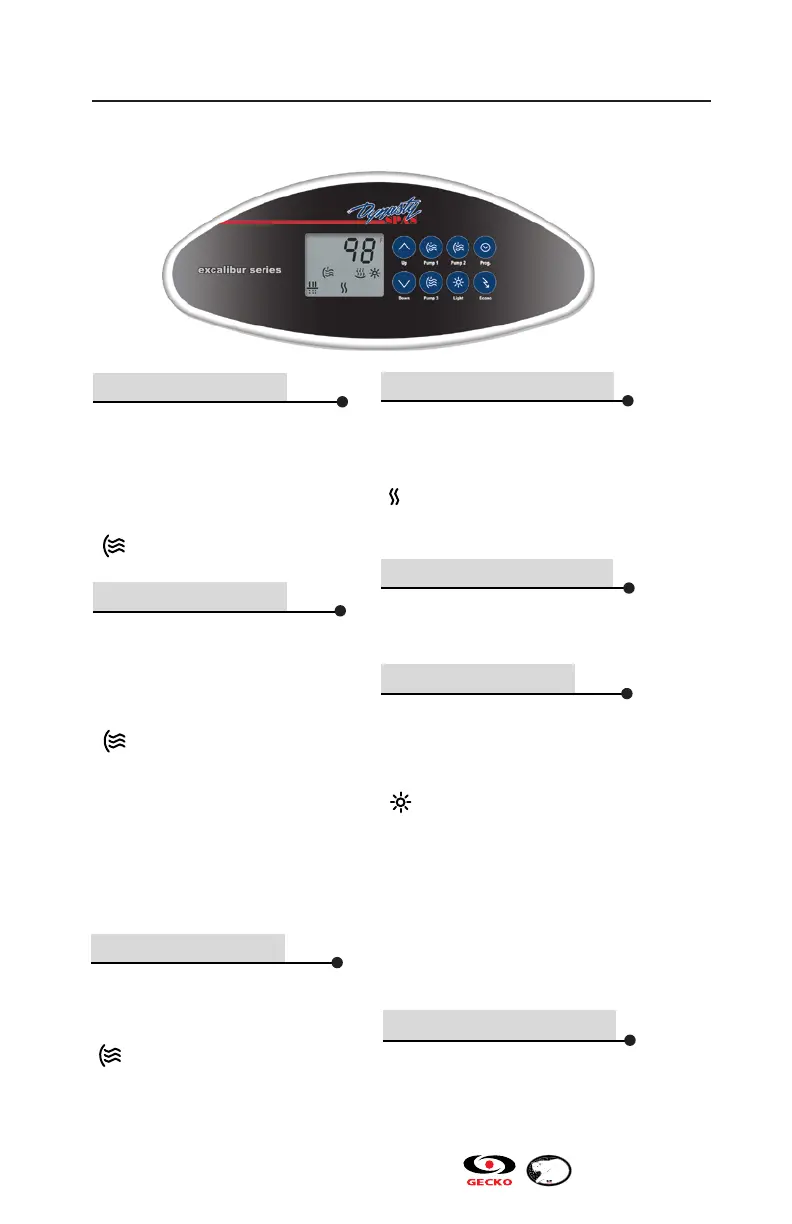

5000 Top Side Control Instructions
5000 System
14
•
E
Q
U
I
P
P
E
D
W
I
T
H
G
E
C
K
O
'
S
E
X
C
L
U
S
I
V
E
•
Smart
Winter
Mode
TM
When water temperature is 1˚F (0.5˚C)
lower than the Set Point, the heater will
automatically turn on until water tempera-
ture reaches Set Point plus 1˚F (0.5˚C).
The "Heater" icon lights up when the
heater is on. It flashes when there is a
request for more heat but the heater
has not yet started.
Automatic water heater start:
Press and hold Light key for 5 seconds to
display water temperature in either Fahr-
enheit (˚F) or Celsius (˚C).
Temperature display unit:
The display toggles every 5 seconds alternately
showing the hourly time and the current water
temperature.
Time & Temperature display:
Press Pump 1 to turn Pump 1 on at low
speed. Pressing a second time turns Pump 1
to high speed. A third time turns Pump 1 off.
When at high speed, a built-in timer turns
pump off after 20 minutes and when at low
speed after 2 hours, unless it has been
manually deactivated.
The "Pump 1" icon lights up when
Pump 1 is on at high speed. It flashes
when Pump 1 is on at low speed.
1
Starting Pump 1:
Press Pump 3 to turn Pump 3 on. Pressing a
second time turns Pump 3 off. A built-in timer
automatically turns pump off after 20 minutes,
unless manually deactivated first.
The "Pump 3" icon lights up when
Pump 3 is on.
Note: If blower is installed, press Pump 3 to turn
blower on at high speed. Press a second time to
turn blower to low speed. A third time turns
blower off. A built-in timer turns blower off after
20 min., unless manually deactivated first. The
"Pump 3" icon lights up when blower is on at high
speed. It flashes when blower is on at low speed.
Starting Pump 3:
3
Starting Pump 2:
When blower or Pump 3 are not installed:
Press Pump 2 once to turn Pump 2 on at low
speed. Pressing a second time turns Pump 2
to high speed. A third time turns pump off. A
built-in timer turns pump off after 20 minutes,
unless manually deactivated first.
The "Pump 2" icon lights up when
Pump 2 is on at high speed. It flashes
when Pump 2 is on at low speed.
When blower and Pump 3 are installed:
Press Pump 2 once to turn Pump 2 on at low
speed. Pressing a second time turns Pump 3
on and Pump 2 to high speed. A third time
turns both pumps off. A built-in timer auto-
matically turns pumps off after 20 minutes,
unless manually deactivated first. The
"Pump 2" icon lights up when Pump 2 and
Pump 3 are on at high speed. It flashes
when Pump 2 is on at low speed.
2
Pressing Light key once turns light on at high
intensity. Pressing a second time turns light to
low intensity. A third time turns light off. A built-
in timer turns light off after 2 hours, unless it has
been manually deactivated.
The "Light" icon is displayed when
light is on at high intensity. It flashes
when light is on at low intensity.
Fiber Box Option: If spa has an optional fiber
box only, pressing Light key turns fiber box
(motor & light) on. Pressing again turns fiber
box motor off but leaves light on. A third time
turns both motor and light off. A built-in timer
turns fiber box off after 2 hours, unless it has
been manually deactivated. The "Light" icon is
displayed when fiber box light is on. It flashes
when fiber box motor and light are on at the
same time.
Turning the light on:
To Next Page
