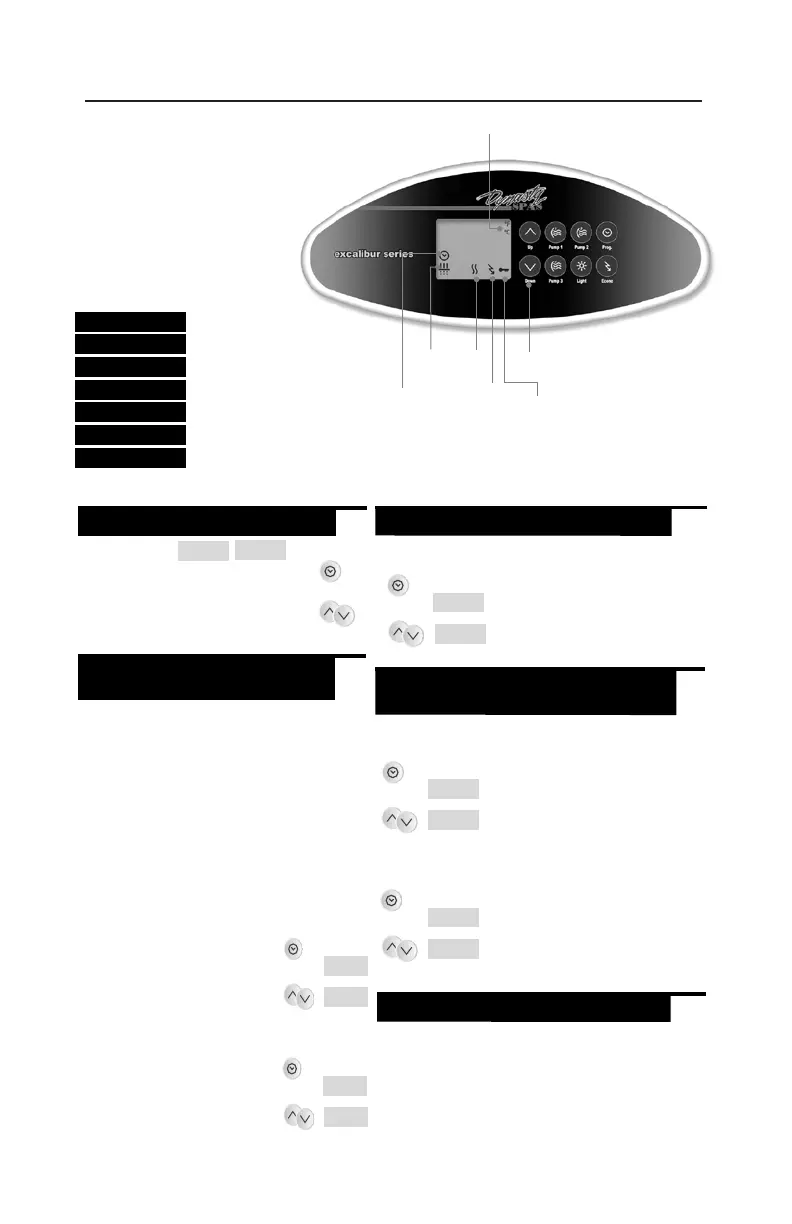

5000 Top Side Control Instructions
16
7
Lock
icon
Temperature
unit
Programming Mode
icon
Filter Cycle
icon
Heater
icon
Economy Mode
icon
Up & Down
arrows
Step 1
Step 2
Step 3
Step 4
Time of day
Filter cycle start time
Filter cycle duration
Filter cycle frequency
Step 5
Economy mode start time
Step 6
Economy mode duration
Step 7
Storing settings in memory & returning to Normal mode
Step 1- Time of day
Setting the time:
1- Enter Programming mode by holding
Prog. key pressed down for 2 seconds.
2- The display will show the current setting.
3- Use Up and Down arrows to change
setting.
11:43 pm
10:25 am
The system automatically performs two filter
cycles per day, at 12-hour intervals. During the filter
cycle, Pumps 1 & 2 and the blower will run for one
minute, then Pump 3 will run for one minute.
Pump 1 will then run at low speed for a programmed
number of hours. The "Filter Cycle" icon lights up
when a filter cycle is on.
To program a filter cycle, you must enter: 1) the
time you want the cycle to start and 2) the duration
of the cycle. If no filtering is required, the duration
should be set to "0". For continuous filtering, the filter
cycle duration should be set to "12:00".
Setting filter cycle start time:
1- Press Prog. key a second time.
2- The display will show FSxx, with "xx"
representing the starting hour.
3- Use Up and Down arrows to change
setting.
Setting filter cycle duration:
1- Press Prog. key a third time.
2- The display will show Fdxx, with "xx"
representing the duration in hours.
3- Use Up and Down arrows to change
setting.
Steps 2 & 3- Filter cycle start time &
duration
FS08
FS10
Fd06
Fd04
Setting filter cycle frequency:
1- Press Prog. key a fourth time.
2- The display will show FFxx, with "xx"
representing the frequency per day.
3- Use Up and Down arrows to change
setting.
Step 4- Filter cycle frequency
FF10
FF06
Step 7- Storing settings in memory
Press Prog. key a seventh time to store the settings in the
system's non-volatile memory and to return to Normal
mode.
Steps 5 & 6- Economy mode start time &
duration*
Setting Economy mode start time:
1- Press Prog. key a fifth time.
2- The display will show ESxx, with "xx"
representing the starting hour.
3- Use Up and Down arrows to change
setting.
Setting Economy mode duration:
1- Press Prog. key a sixth time.
2- The display will show Edxx, with "xx"
representing the duration in hours.
3- Use Up and Down arrows to change
setting.
ES08
ES10
Ed06
Ed04
Step
Programming
Sequence
To Next Page
