Page | 15
by your local qualified water treatment
company.
c. Dynatherm™ recommends the water to
be maintained at 85 pH.
If the boiler is being fired without being full of
water, the tubes can loosen and leak. This is a
negligent operation and is not covered under
the warranty.
8. All piping should be done in a neat,
workmanlike manner to compliment the
boiler. The design of the piping is pertinent to
each job and is the responsibility of the
installer.
9. See Figures 3, 4 & 5 below for suggested
general piping diagrams.
DOMESTIC HOT WATER COIL
1. If a tankless domestic hot water coil is
installed on the boiler,
make connections to
the hot water coil and
provide valves to
backflush the coil.
2. The coil is made of thin,
finned copper tubing and
should be handled carefully in the event of
removing, cleaning or installing.
Do not install a domestic hot water coil without
a thermostatic mixing valve. Install the mixing
valve at the hot water outlet. Adjust and
maintain the mixing valve according to the
manufacturer’s instructions.
GENERAL PIPING DIAGRAMS

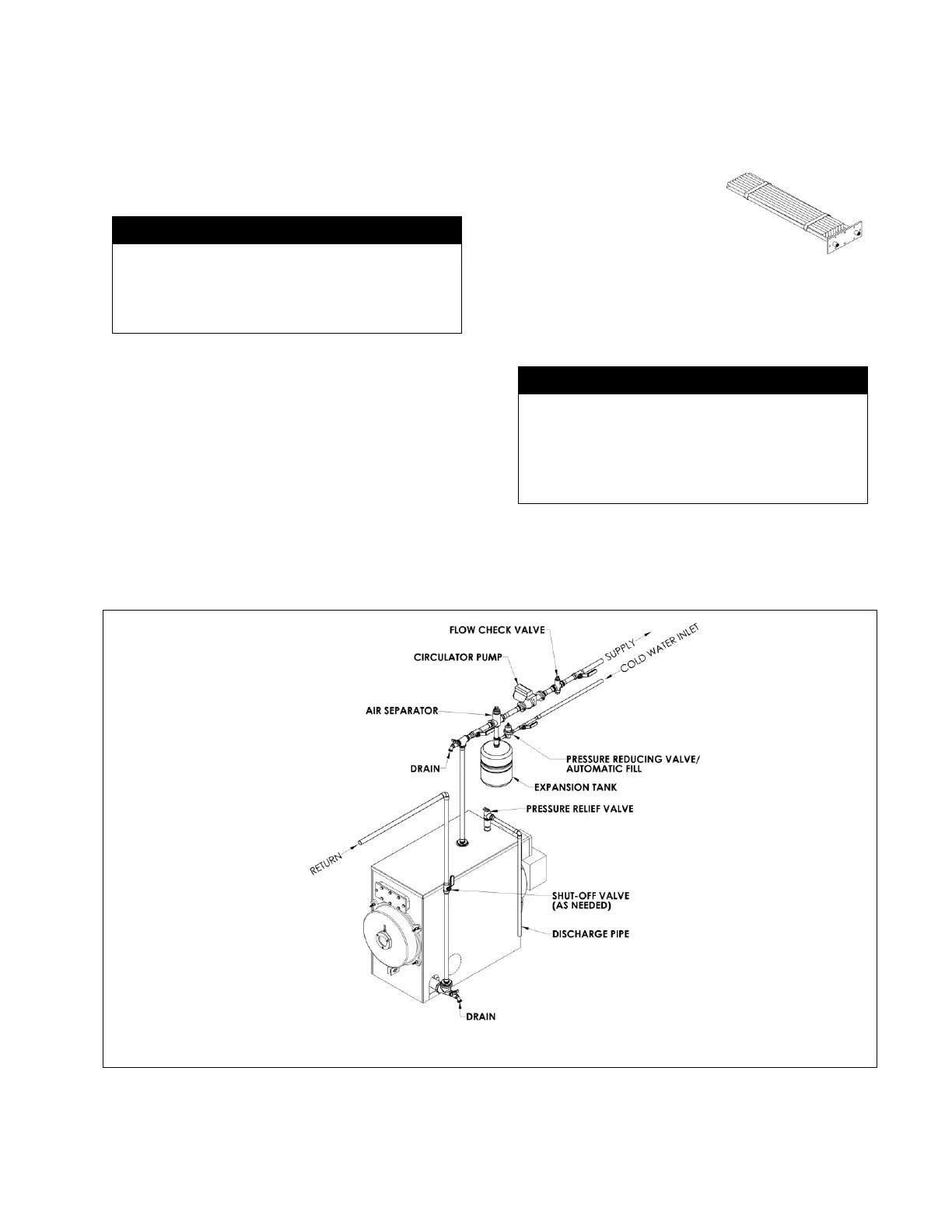

Figure 3 – Hot Water Piping
To Next Page
