Product Overview
The transducers of your Dynaudio LYD speaker will achieve better sound quality after breaking in. Especially after
the first hours of use, you may notice a significant advance in sound quality, and further subtle improvements in
subsequent hours of use.
Amplifier
The LYD speaker range features an integrated Class-D amplifier with analog inputs. All connections and settings
are available on the backplate of the amplifier. Please do not remove the amplifier yourself.
If servicing is required, please contact your Dynaudio dealer.

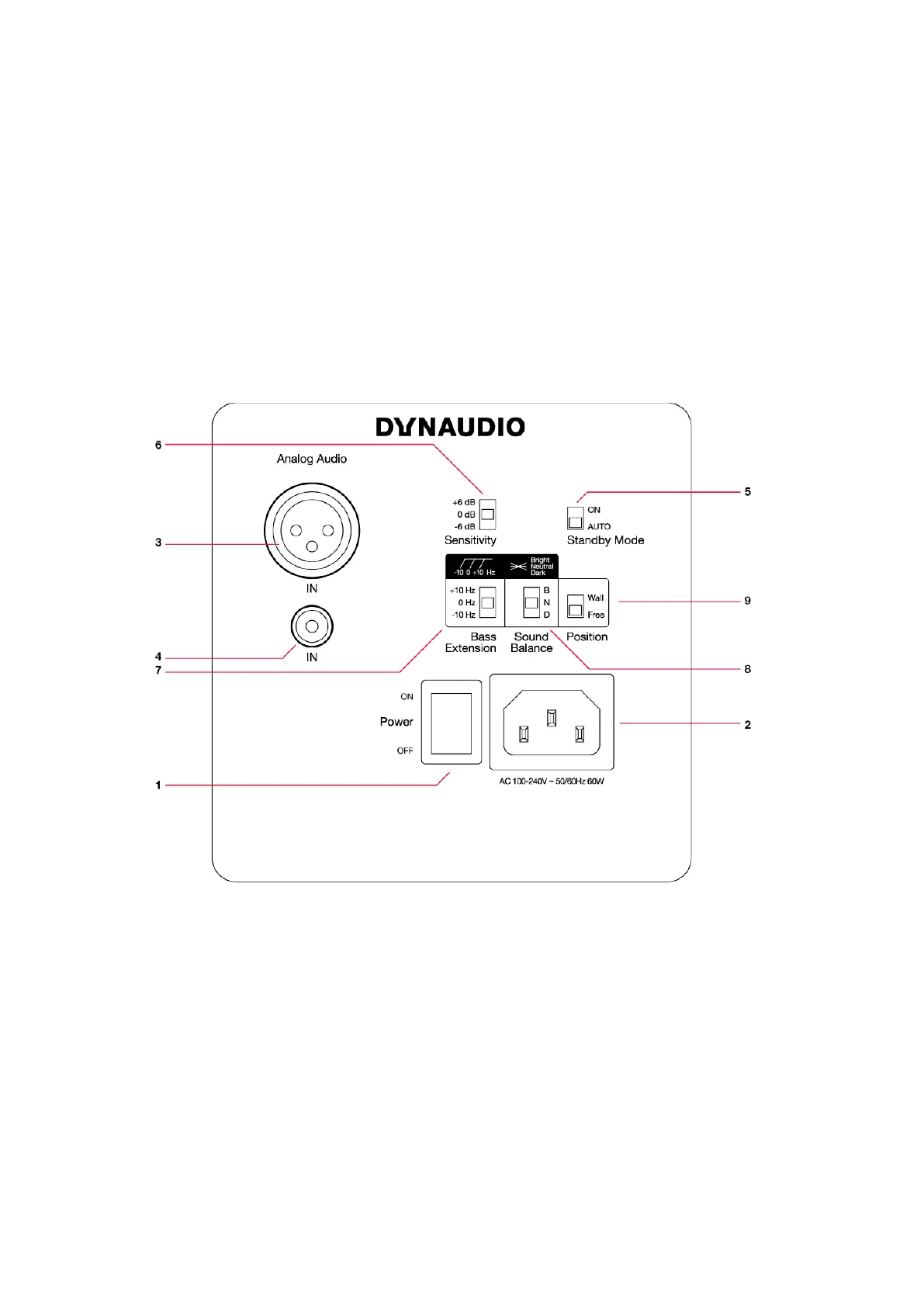

Figure 2: Dynaudio LYD backplate
1. Power ON/OFF switch
2. AC power Input (100-230V)
3. Balanced analog input (XLR)
4. Unbalanced analog input (RCA)
5. Standby Mode switch – Turns auto-standby ON/OFF
6. Sensitivity switch – Changes max. input voltage
7. Bass Extension switch – Changes cut-o frequency of the speaker
10 LYD User manual
