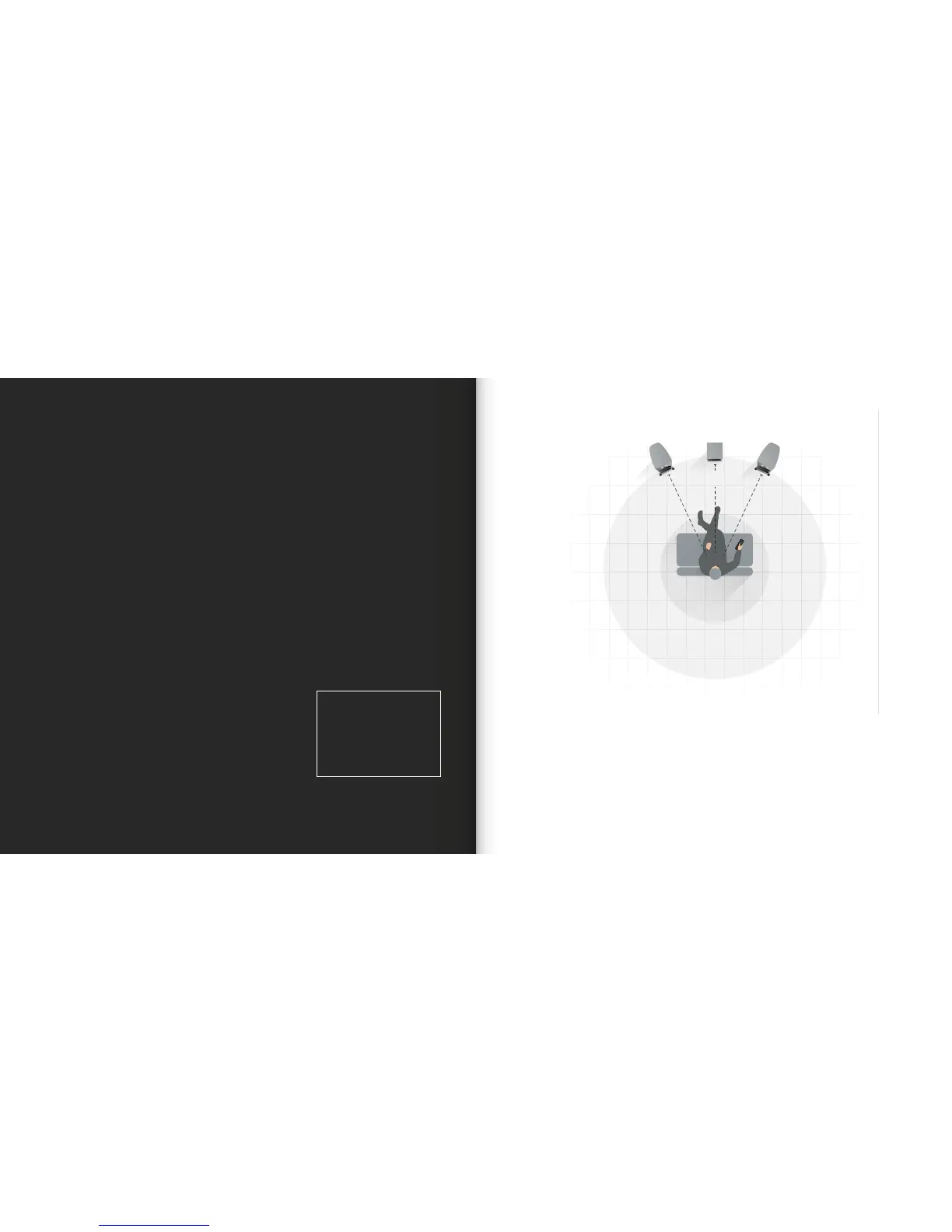

21
Listening area
Right speaker
distance
Left speaker
distance
Subwoofer
distance
20
Sub6 Feet
The Sub6 is supplied with rubber feet
and option for spikes. Spike feet are
intended to be used on carpeted solid
oors. The spikes pierce the carpet to
support the subwoofer on the oor below
protecting the carpet from damage and
providing a stable foundation.
If oor spikes are to be used, screw a
spike and lock-nut into each tapped
hole leaving a length of spike extending
beyond the lock-nut so that when the
subwoofer is upright the lock-nuts will
“oat” just above the carpet.
Tighten three of the lock-nuts with the
included spanner leaving one locknut
nger-tight to aid adjustment once the
subwoofer is placed in its nal position.
Once the nal position has been
established adjust the length of the loose
spike so that the subwoofer is level and
does not rock. Finally, tighten all loose
lock-nuts.
Take care when installing oor spikes.
They are sharp and can cause injury.
Positioning Possibilities
Moving the subwoofer closer to walls
and corners in particular will generally
increase the amount of bass. Although
the extra amount of bass can be
compensated for by reducing the volume
level of the subwoofer relative to the
rest of the system, this can result in
uneven bass response at the listening
position. You can try starting with
placement in a corner and experiment
by gradually moving it out of the corner
or further away from the wall. Try to
locate the position which yields the best
compromise between position, volume
and even bass response. Note that every
time that you reposition the subwoofer
(even if it’s over a short distance) you
may need to adjust its settings.
Corner placement
This placement yields maximum boost
of bass level but potentially uneven
distribution of bass in the room (room-
modes), particularly if the room is square
or shoe-box shaped.
•
From the listening position, check
if the bass is even across the entire
bass spectrum. If not, move the
subwoofer out of the corner. Try
moving it along either wall.
Next to wall, away from corner
This position still provides considerable
boost but less than the corner placement
as above. Room-modes can also still be
considerable but less so than with corner
placement.
•
From the listening position, check
if the bass is even across the entire
bass spectrum. If not, move the
subwoofer away or towards your
listening position until the most even
response has been obtained.
•
Avoid placing the subwoofer exactly
half-way or at a quarter of the wall’s
length.
Free standing, away from wall and
corner
This position will give least boost
compared to wall or corner placement,
but in general offers the best exibility at
achieving most even bass distribution at
the listening position.
•
Avoid placing the subwoofer exactly
half-way or at a quarter’s length of
either sidewall.
•
Particularly in smaller square or
“shoe-box” shaped rooms the free
standing position is recommended.
Sub6 DSP Features
The Sub6 incorporates signal
processing that can compensate for the
time delay and volume level differences
between the subwoofer and main
speakers resulting from their relative
positions with respect to the listening
position. Once you have positioned your
subwoofer, measure the distances as
illustrated in the diagram. The measured
distances should then be specied at the
appropriate locations in the subwoofer
conguration menu. The conguration
menu is described in the following of this
manual.
Note
The Sub6 signal processing
is able to compensate for a
maximum of 5.35m difference
between subwoofer and main
speaker distances to the listening
position.
Installation
