Dyness DL5.0C - Communication Interface Pinouts; CAN;485 Interface Pinout; COM Interface Pinout

DL5.0C User Manual
©Dyness reserves the copyright of this document
9

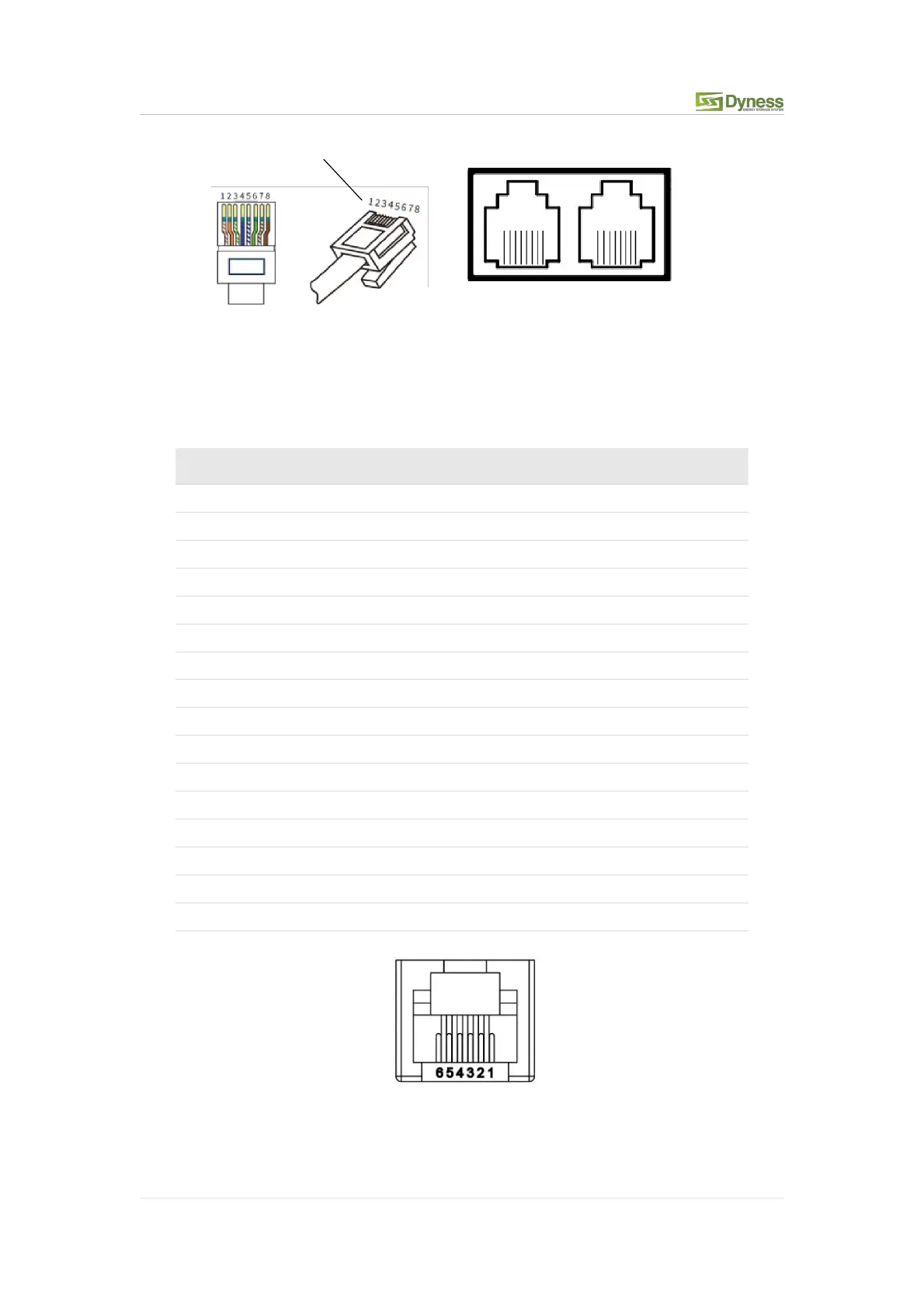

Figure 2-2 CAN/485 Interface Definition
Table 2-5 Pin Definition
Foot position
Color
Definition
PIN1
Orange/white
485B
PIN2
Orange
485A
PIN3
Green/white
Reserve
PIN4
Blue
EXT CANH
PIN5
Blue/white
EXT CANL
PIN6
Green
Reserve
PIN7
Brown/white
INT CANH
PIN8
Brown
INT CANL
PIN9
Orange/white
Reserve
PIN10
Orange
Reserve
PIN11
Green/white
Reserve
PIN12
Blue
Reserve
PIN13
Blue/white
Reserve
PIN14
Green
Reserve
PIN15
Brown/white
INT CANH
PIN16
Brown
INT CANL
Figure 2-3 COM Interface Definition
Front
Plug
Socket of communication port
CAN/485
