Tower ESS Unit User Manual
19

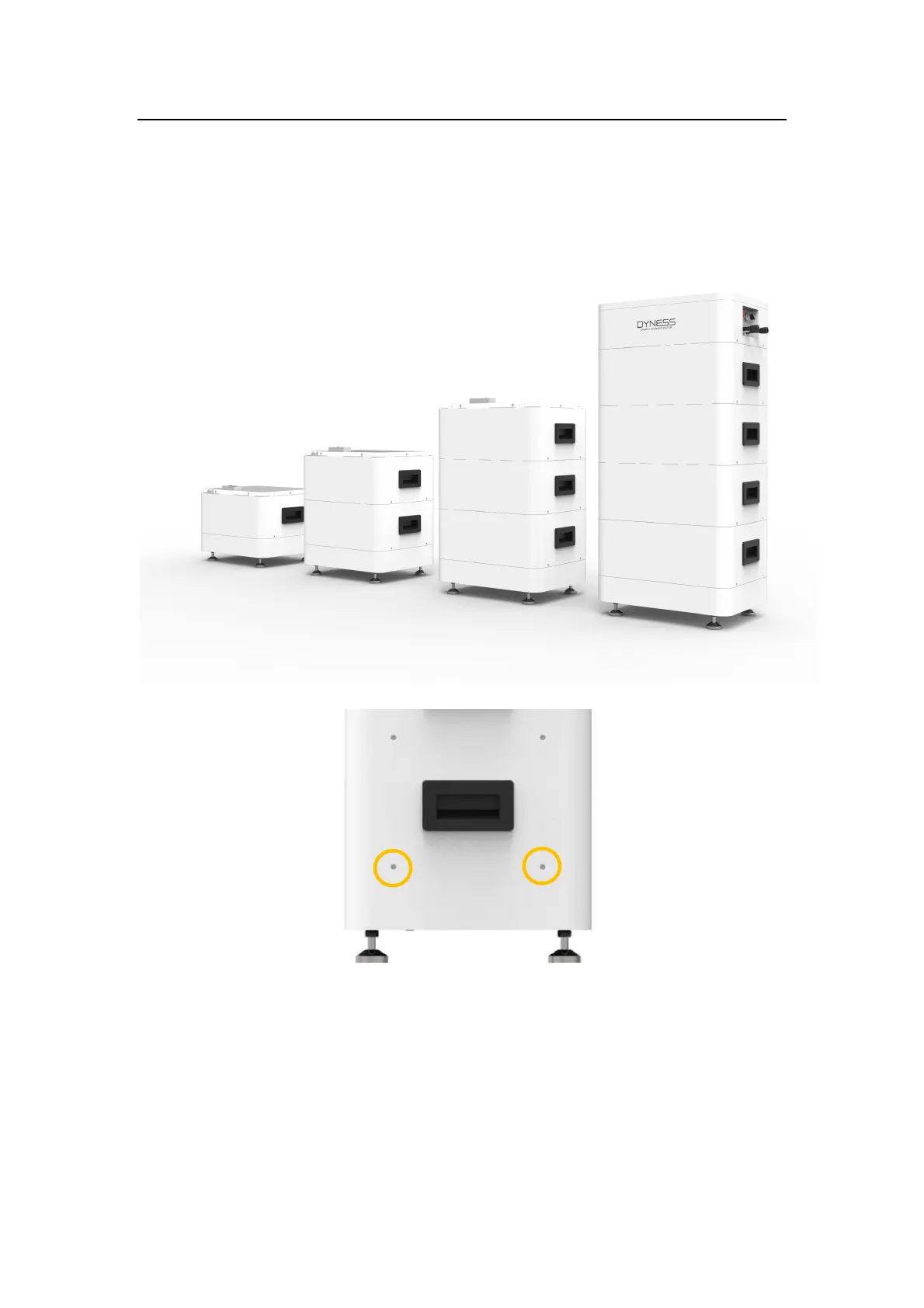

● Install all the HV9637 modules on the base from bottom to up,follow the sequence B04~B01.
Referring to the following figure.
● Each module uses 4 screws to fix.
Warning: Single battery module is 41kg. It’s necessary to arrange more than 1 person to install
battery module if without lifting equipment, more than 2 person when install battery module in
higher position.
3.6.3 Electrical installation
Danger: The battery system is high voltage DC system. Must make sure the grounding surface of
the Tower is stable and reliable.
3.6.3.1 Grounding
