7. Plug the red connectors
from the PCIII in-line of the
stock white connectors (Fig.
D).
8. Connect the ground wire off
of the PCIII to the negative
side of the battery (Fig. E).
9. Install the PCIII in the tail
section of the bike. You can
use the supplied velcro to
attach the unit to the inside
of the tool tray if desired.
10 Bolt the fuel tank back into
place and all removed body-
work.

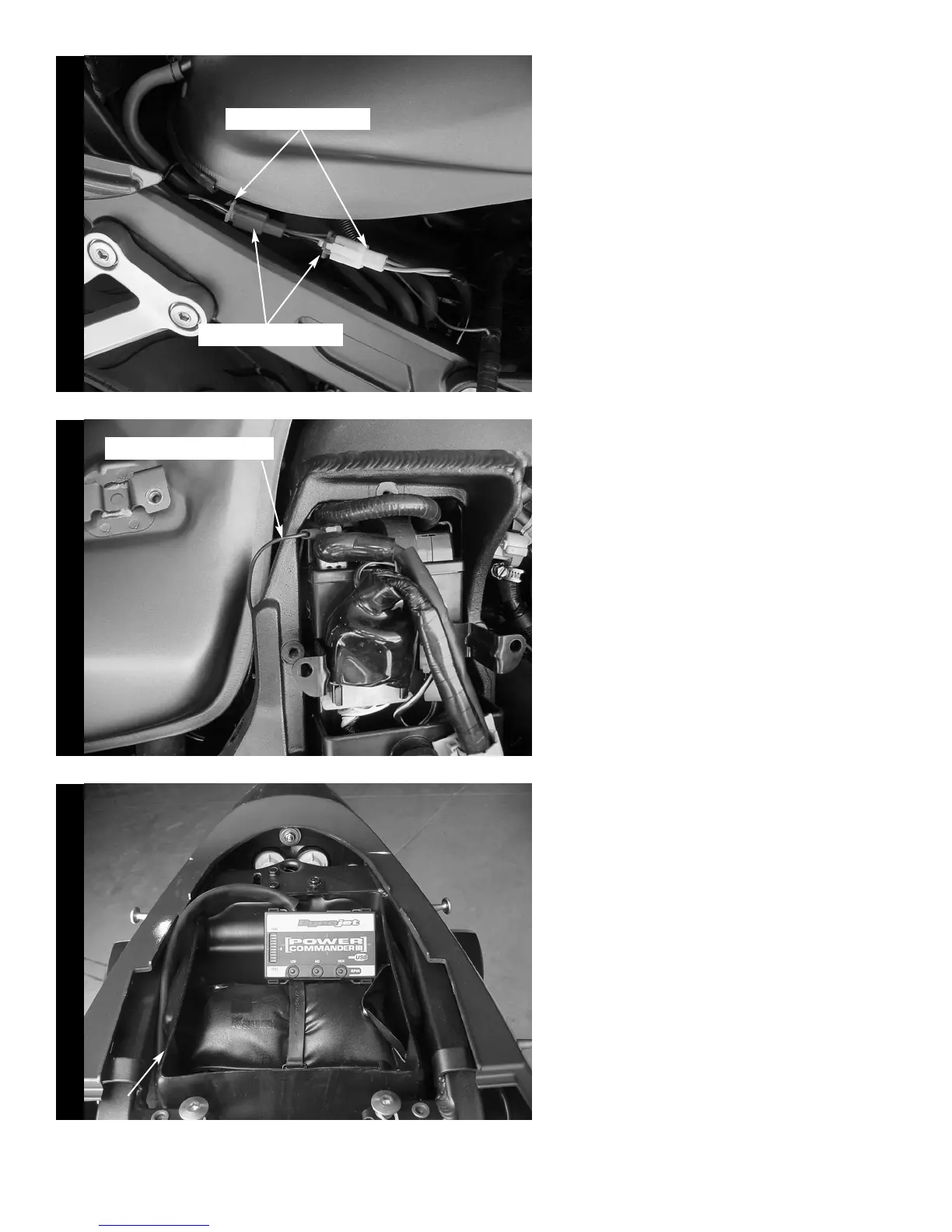

Fig. DFig. E
Fig F
Ground wire from PCIII
Stock connectors
PCIII connectors
