5. Lay the PCIII in the tail section
temporarily.
6 Route the PCIII harness through the
hole in the tail section (Fig. C).
7. Route the PCIII along the right hand
side of the subframe . Secure the
PCIII harness to the subframe using 2
of the large supplied zip ties (Fig. D)

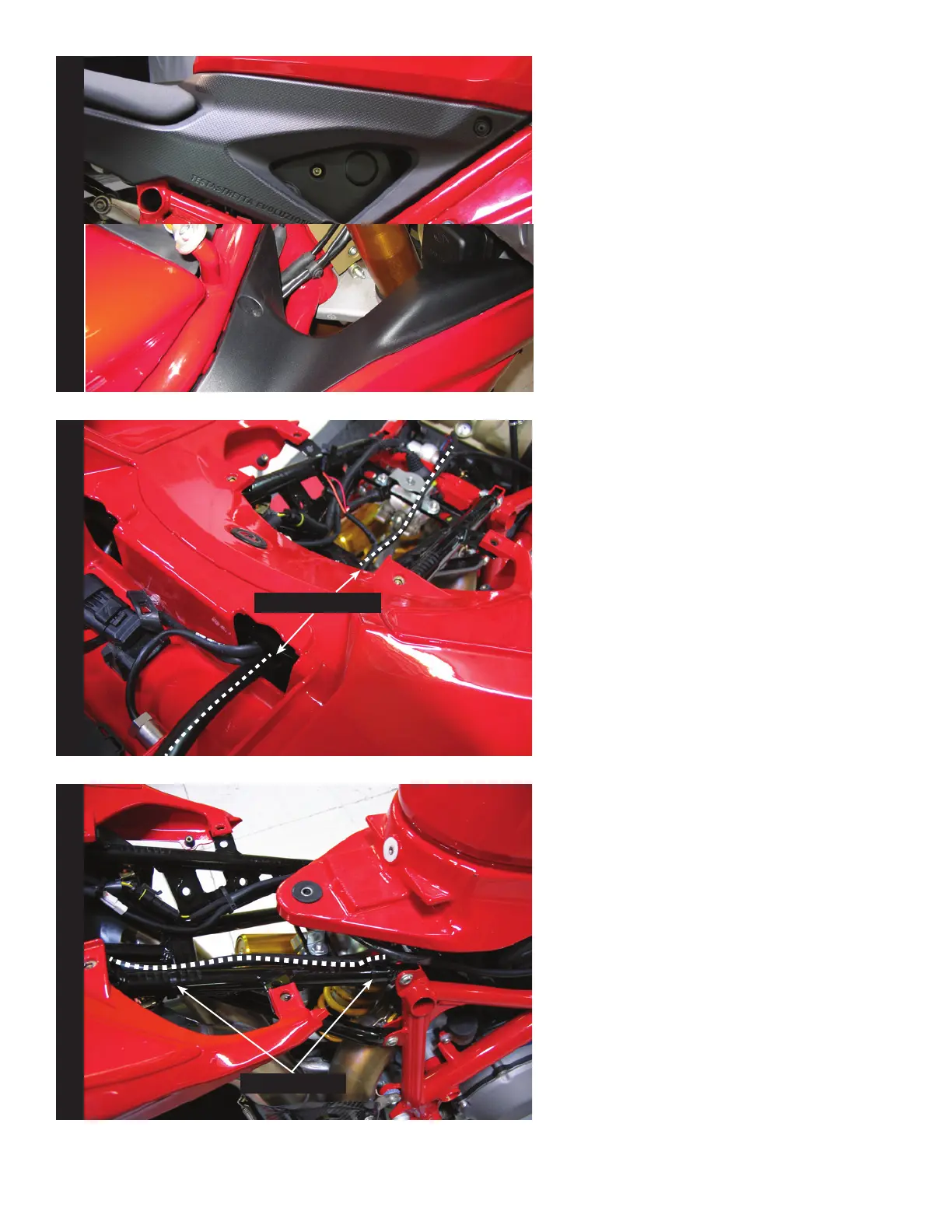

Fig. B Fig. AFig. CFig. D
2007 Ducati 1098 - PCIII USB - 2
Zip ties
PCIII harness
1. Remove the seat and solo cover.
2. Remove the cover around the fuel tank
(Fig. A).
3 Remove the fuel tank
4. Remove the inner fairing cover on the
right hand side (Fig. B).
To Next Page
