I11-009 www.powercommander.com 2012 Arctic Cat 1100 Turbo PCV - 2
EXPANSION PORTS 1 & 2
Optional Accessories such as
Color LCD unit or Auto tune kit.
POWER COMMANDER V
INPUT ACCESSORY GUIDE
Map- The PCV has the ability to hold two different
base maps. You can switch on the fly between
these two base maps when you connect
a switch to the MAP inputs. You can use
any open/close type switch. The polarity of
the wires is not important. When using the
Autotune kit, one position will hold a base map
and the other position will let you activate the
learning mode. When the switch is “CLOSED”
Autotune will be activated.
Shifter- Not used for snowmobiles.
Speed- If your application has a speed sensor then
you can tap into the signal side of the sensor
and run a wire into this input. This will allow
you to calculate gear position in the Control
Center Software. Once gear position is setup
you can alter your map based on gear position
and setup gear dependent kill times when
using a quickshifter.
Analog- This input is for a 0-5v signal such as
engine temp, boost, etc. Once this input
is established you can alter your fuel curve
based on this input in the control center
software.
Crank- Do NOT connect anything to this port unless
instructed to do so by Dynojet. It is used to
transfer crank trigger data from one module to
another.
ACCESSORY INPUTS
PCV Wire Connections
1. Remove the rubber plug on the backside of the
unit and loosen the screw for the corresponding
input.
2. Using a 22-24 gauge wire, strip about 10mm
from its end.
3. Push the wire into the hole of the PCV until it
stops and then tighten the screw.
4. Make sure to reinstall the rubber plug.
Note: If you tin the wires with solder it will make
inserting them easier.

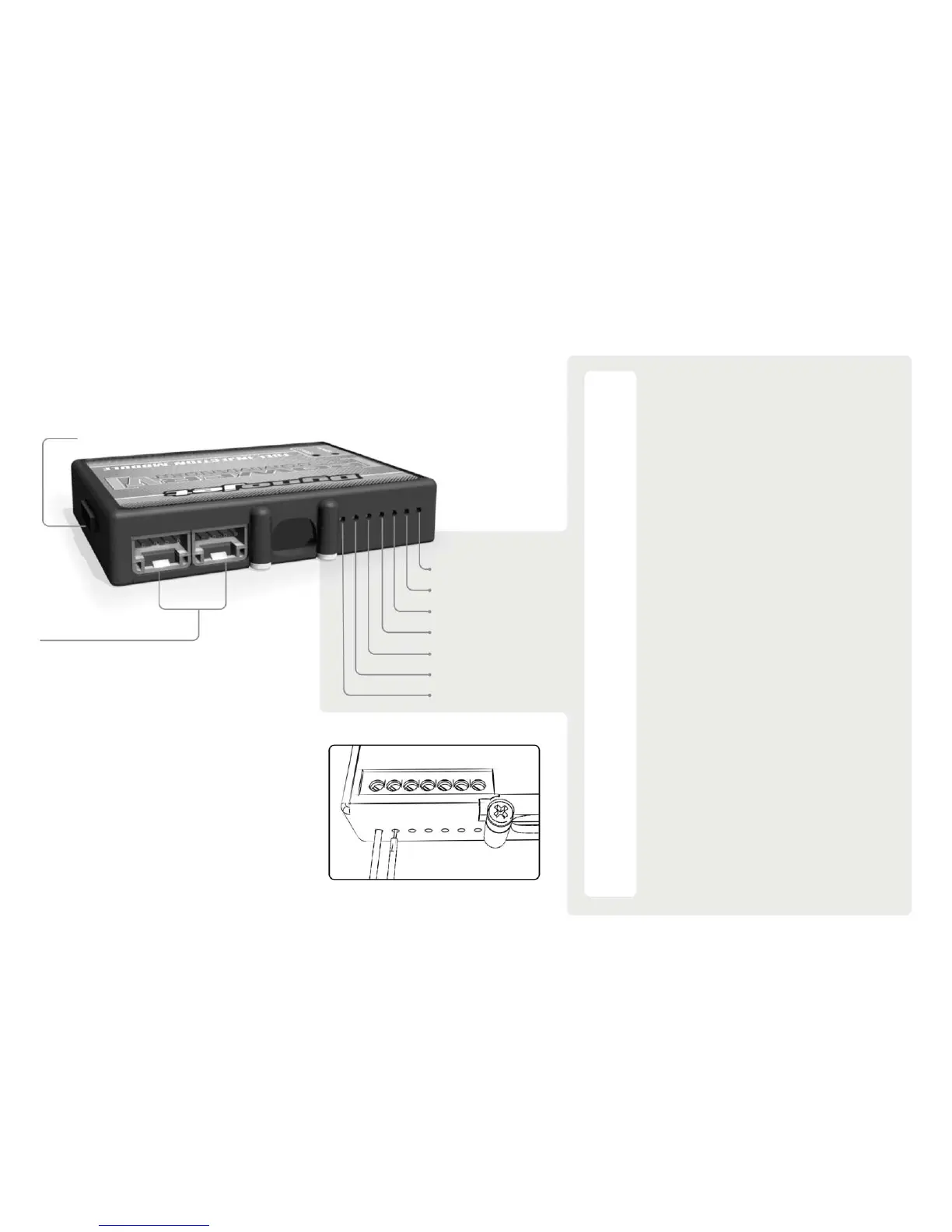

CRANK
ANALOG
SPEED
MAP
MAP
SHIFTER
SHIFTER
USB CONNECTION
