Dynojet Power commander V - Vehicle Panel Removal; Front Compartment Access; Side Panel Removal

I11-009 www.powercommander.com 2012 Arctic Cat 1100 Turbo PCV - 3

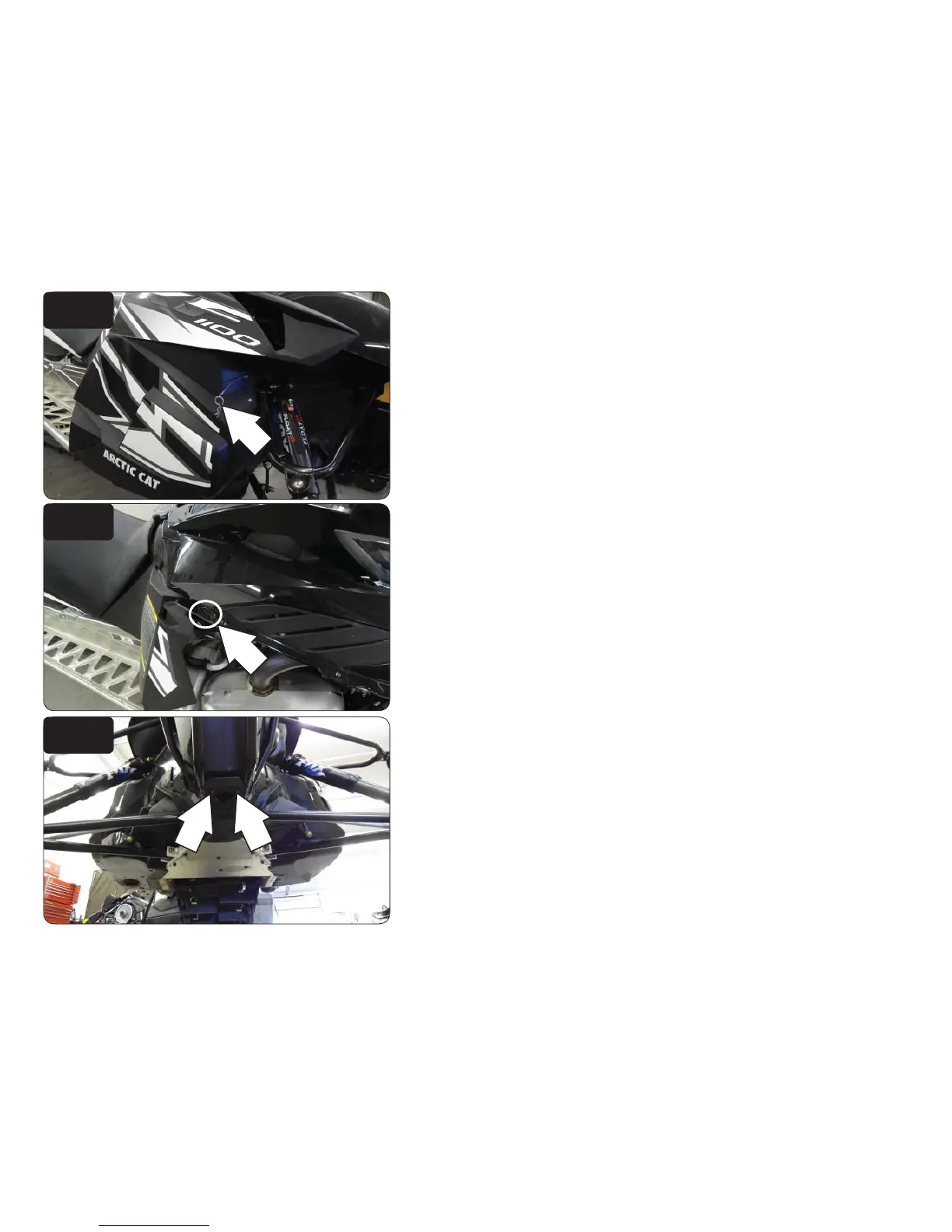

1 Remove both side panels by pulling out the split cotter pins and pivoting the
panels rearward out of the hinge points.
2 With the side panels removed, remove the torx head screw securing the hood
to the cowling on both sides of the snowmobile.
3 Unscrew the two torx screws underneath the front of the snowmobile.
These screws are recessed above the skid plate and accessible through two
access holes.
FIG.A
FIG.C
FIG.B
