I11-009 www.powercommander.com 2012 Arctic Cat 1100 Turbo PCV - 4

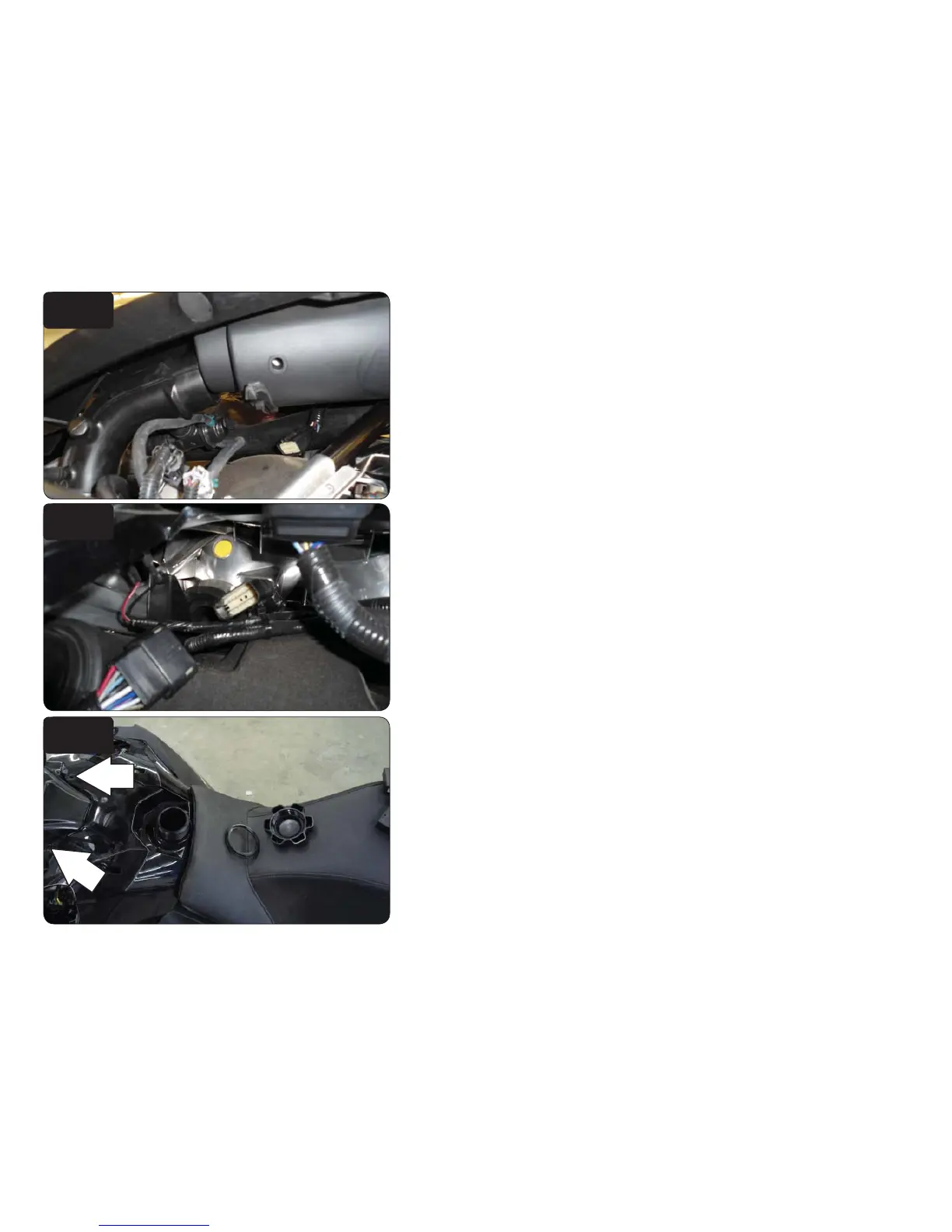

4 Pop the air intake box away from the tube on the left side of the snowmobile.
5 Unplug the hood harness connector located below the display gauge.
6 Remove the hood and set it aside.
7 Unscrew the gas cap and cowling retaining nut.
8 Remove the torx screws on each side of the steering column holding the tank
shroud.
FIG.D
FIG.F
FIG.E
