I25-010 www.powercommander.com Can-Am Spyder 2011-2013 RT/RTS & 2013-2014 RS/ST - PCV F/I - 3
1 Open the seat and the front storage compartments.

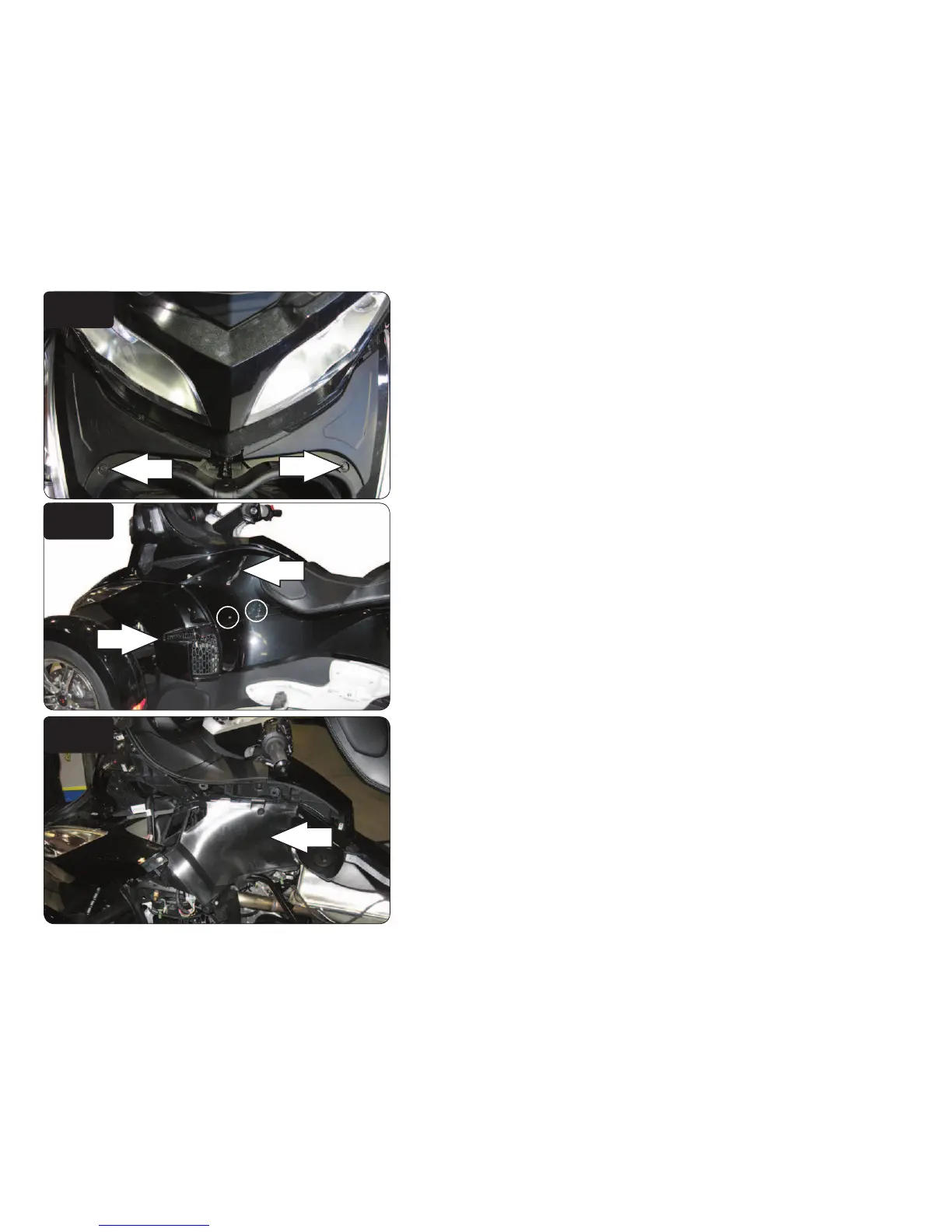

2 Remove the two covers under the front storage lid (Fig. A).
Remove the push pins.
3 Remove the lower cover in Figure B by pulling outwards.
4 Remove the mirror by pulling outwards and up.
5 Remove the upper side cover.
The 2 silver bolts circled in Figure B do NOT need to be removed. Pull outwards
in this area.
6 Remove the inner side cover (Fig. C).
Figure C is shown with the lower side panel removed. This panel does NOT need
to be removed to perform steps 5 & 6.
7 Repeat steps 3 thru 6 for the right hand side.
FIG.A
FIG.C
FIG.B
Remove
Remove
Remove
Remove
Remove
