Dyson V8 User Manual

Replace your brush bar
Remove your brush bar
Wash and dry your brush bar
Don’t put any part of your machine in a dishwasher or use detergents,
polishes or air fresheners.

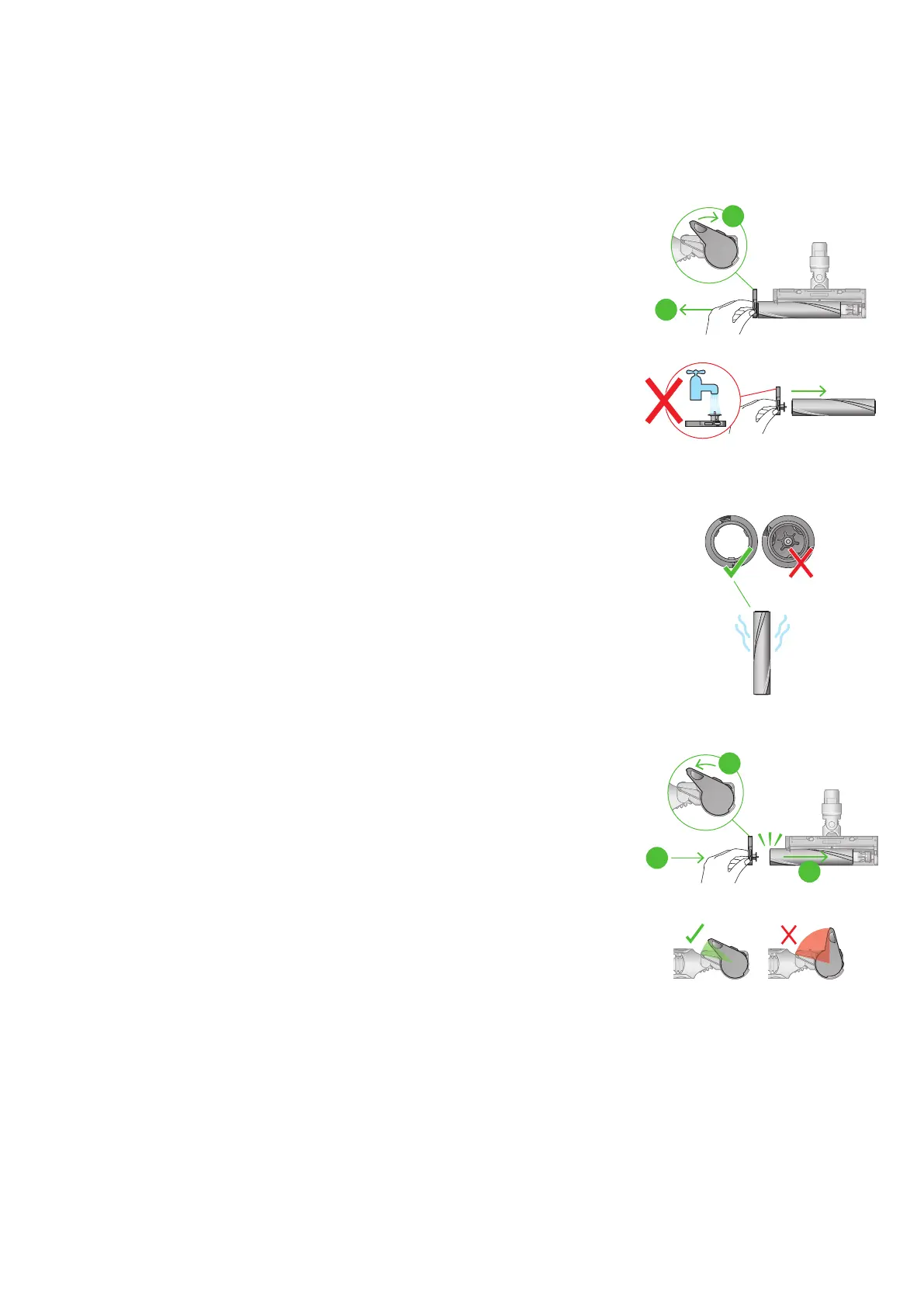

Press the cleaner head release button on the end of the wand. Place the
cleaner head upside down.
Push the end cap up fully and pull the brush bar out of the cleaner head.
Remove the end cap from the brush bar. Don’t wash the end cap.
Before replacing, check that your brush bar is completely dry.
Reattach the end cap to your brush bar.
Slide your brush bar into the cleaner head. Push the end cap back down to
the closed position.
2
3
1
2
1
2
3
1
2
1
2
3
1
2
1
Washing your Fluffy™
cleaner head brush bar
Your Fluffy™ cleaner head has a washable brush bar. To maintain optimum
performance, check and wash your brush bar regularly.
Make sure your machine is disconnected from the charger and take care not
to touch the trigger.
Hold your brush bar under running water and gently rub to remove any lint
or dirt.
Remove as much excess water as possible, run your hand down the length
of the brush bar to squeeze out the water.
Stand your brush bar upright, with the closed end at the top. Leave to dry
completely for at least 24 hours.
The brush bar
has an open
end and
a closed end.
Stand upright,
with the closed
end facing
upwards, to dry.
The end cap
is located at
the side of the
cleaner head.
Push this
upwards to
unlock the brush
bar. Don’t wash
the end cap.
The end cap
should be
attached to the
cleaner head
at an angle less
than 90°, any
angle greater
than this will not
allow the end
cap to close.
The two ends of the main
brush bar showing the
closed in end being the
correct one to have facing
upwards when leaving the
brush bar to dry.
The brush bar reinserted
into the cleaner head
and the end cap rotated
to the locked position.

Dyson V8 Specifications

General

Package depth	154 mm
Package width	271 mm
Package height	739 mm
Package weight	3900 g
Rotational speed	110000 RPM
Commodity Classification Automated Tracking System (CCATS)	8508110003
Cleaning type	Dry
Power control	Auto
Country of origin	Malaysia
Filtration system	Yes
Number of settings	2
Vacuum air filtering	-
Dirt separating method	Cyclonic/filtering
Power source	Battery
Charging time	5 h
Battery voltage	- V
Number of battery cells	6
Product color	Nickel
Dust container type	Bagless
Vacuum brushes included	Motorized brush

Weight and Dimensions

Depth	250 mm
Width	221 mm
Height	1256 mm
Weight	2560 g
