Dyson V8 User Manual

1
1
2
click
Empty your bin as soon as the dirt reaches the MAX mark.
You may need to clean the filter more often if you use your machine
with a full bin.

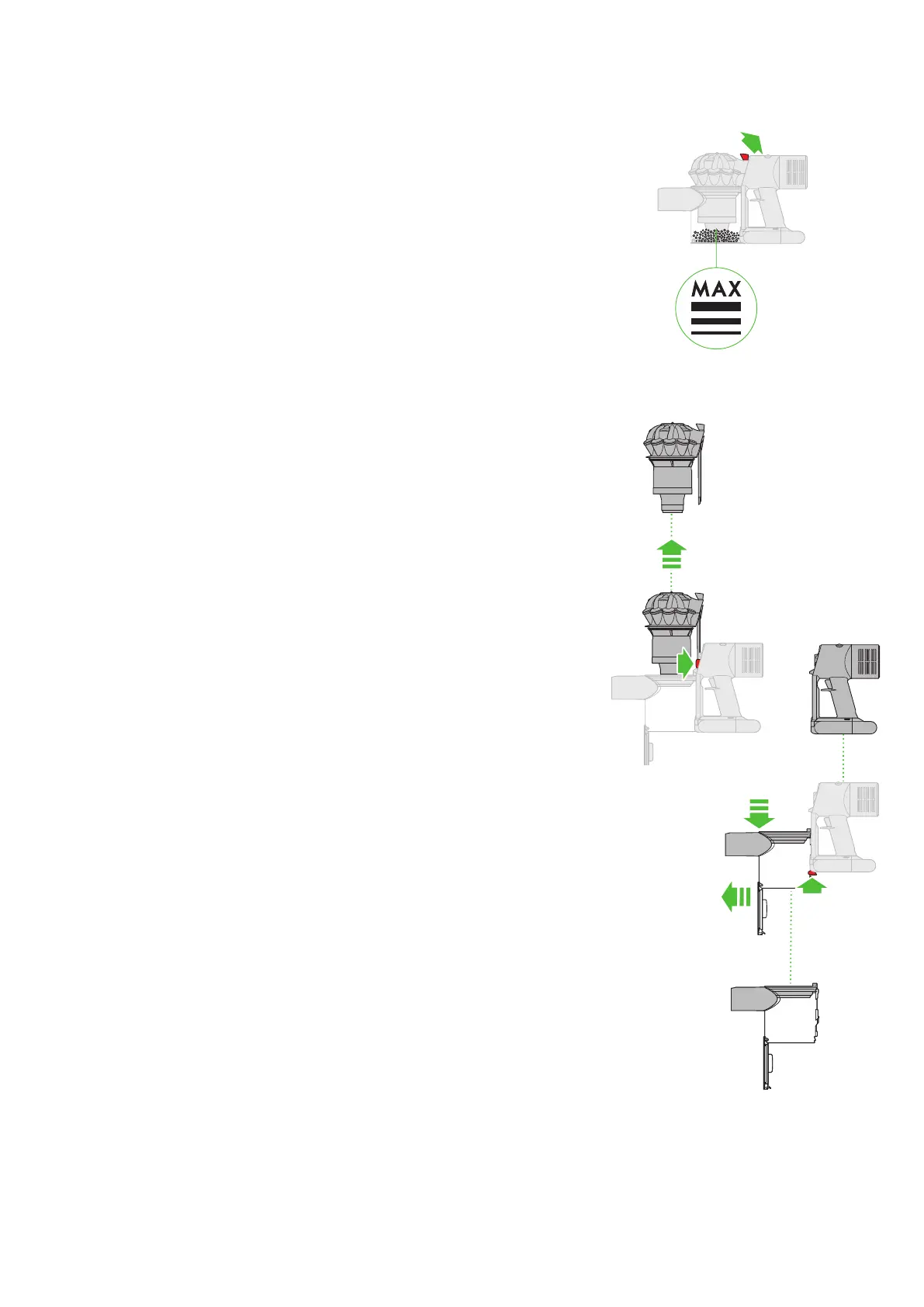

Cleaning your bin
Remove the wand from your machine.
Hold your machine over a bin and pull the bin release catch upwards.
The cyclone will slide up and the bin base will open.
Empty your bin
Pull the bin release catch upwards. The cyclone will slide up and the bin base
will open.
Locate the cyclone release button behind the cyclone and push to remove the
cyclone from your machine.
Remove the cyclone
Pull back on the red catch located on the base, slide the bin down and pull it
off your machine.
Remove the bin
Wipe your bin with a damp, lint-free cloth. Don’t put the bin in a dishwasher
or use detergents, polishes or air fresheners.
Make sure the bin is completely dry before replacing.
Clean the bin
Align the tabs on the bin with the grooves on the main body and slide it
upwards until it clicks into place.
Replace the bin
Slide the cyclone into the grooves of the main body and push down until it is
in position.
Push the bin base up until it clicks firmly shut.
Replace the cyclone
1
2
3
2
1
2
1
3
2
The cyclone release
button is located on
the main body and is
visible once the bin
release button has
been activated. The
button to remove the
bin is located on the
bottom of the handle.

Dyson V8 Specifications

General

Package depth	154 mm
Package width	271 mm
Package height	739 mm
Package weight	3900 g
Rotational speed	110000 RPM
Commodity Classification Automated Tracking System (CCATS)	8508110003
Cleaning type	Dry
Power control	Auto
Country of origin	Malaysia
Filtration system	Yes
Number of settings	2
Vacuum air filtering	-
Dirt separating method	Cyclonic/filtering
Power source	Battery
Charging time	5 h
Battery voltage	- V
Number of battery cells	6
Product color	Nickel
Dust container type	Bagless
Vacuum brushes included	Motorized brush

Weight and Dimensions

Depth	250 mm
Width	221 mm
Height	1256 mm
Weight	2560 g
