Dyson V8 User Manual

Getting started
Pull trigger to start cleaning
Two power modes
Toggle between Powerful mode – for
longer suction – and MAX mode, for
stronger suction. Just hold down the
trigger and slide the control back
and forth.
Switch accessories quickly
The quick-release tools click into place,
and release in moments by simply
depressing the release switch.
Clean awkward spaces
Remove the wand and connect your
chosen tool directly to the inlet pipe
to use the vacuum as a handheld.
click
click
Motorbar™ cleaner head
De-tangling vanes
automatically clear
wrapped hair from the
brush bar as you clean.
Pointers to demonstrate
that the tools can be
connected directly to the
main body or to the end
of the wand.

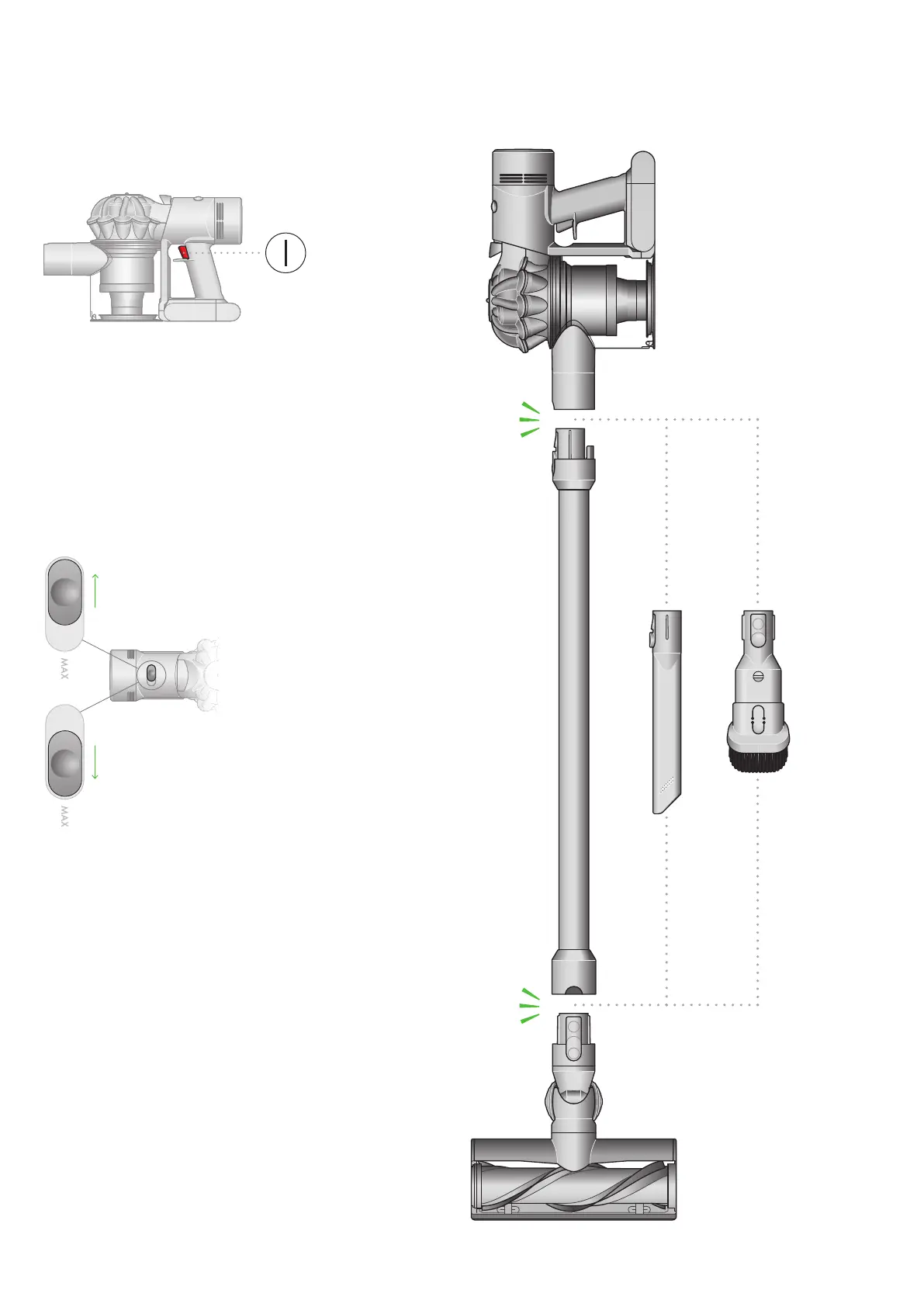

Diagram showing the
connection of the wand
onto the main body,
with the wand release
button aligned with the
top of the main body.
The power mode button is located
on the top of the machine between
the bin and filter. Slide to the left for
powerful cleaning and to the right
for max mode.
A brush bar located inside the
cleaner head and a suction
control slider located on the front.

Dyson V8 Specifications

General

Package depth	154 mm
Package width	271 mm
Package height	739 mm
Package weight	3900 g
Rotational speed	110000 RPM
Commodity Classification Automated Tracking System (CCATS)	8508110003
Cleaning type	Dry
Power control	Auto
Country of origin	Malaysia
Filtration system	Yes
Number of settings	2
Vacuum air filtering	-
Dirt separating method	Cyclonic/filtering
Power source	Battery
Charging time	5 h
Battery voltage	- V
Number of battery cells	6
Product color	Nickel
Dust container type	Bagless
Vacuum brushes included	Motorized brush

Weight and Dimensions

Depth	250 mm
Width	221 mm
Height	1256 mm
Weight	2560 g
