6.2.2 Pressure Regulator
The pressure regulator, with pressure gauge and automatic venting, is mounted externally on the
enclosure and is bolted in an airtight manner to the digital/proportional controller (inside) through
the G ¼" internal thread. The scope of delivery includes: pressure regulator (connection G ¼")
and all necessary mounting material. Other pressure regulators are available on request.

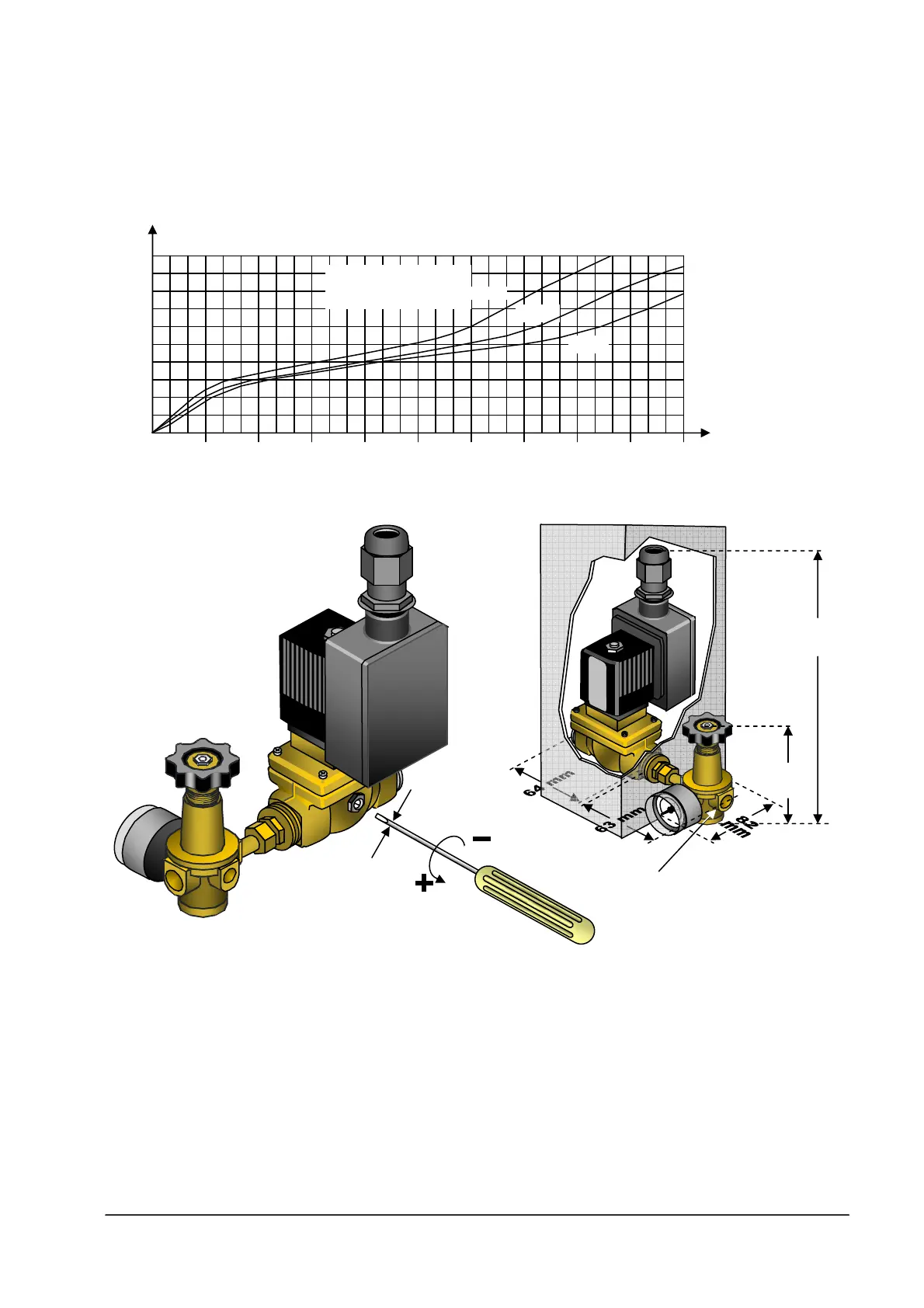

Fig. 12: Leakage air diagram
Fig. 13: Adjustment of the leakage compensation nozzle
6.2.21 Technical Data of the Pressure Regulator
Dimensions (mm): length: 82
width: 63
height: 112 - 135
hole drilled in enclosure 17
Connector pressure supply: internal thread G ¼"
Connectable pressure: 0.5 - 25.0 bar
Extraction pressure: 0.0 - 6.0 bar
Flowrate (1 bar): 490 l/min
Weight: 0.5 kg
39
Number of turns (leakage nozzle)
5,0
4,5
4,0
3,5
3,0
2,5
2,0
1,5
1,0
0,5
0
Inlet pressure at the
valve during operation
2 bar
3 bar
0 10 20 30 40 50 60 70 80 90 100
Air throughput in l/min
max. 3,5 mm
112 ...
135 mm
180
mm
Connector G ¼" internal thread
for pressure supply
