7 Digital Controller F-220.2B
7.1 Technical Data of the Digital Controller F-220.2B
This digital controller is used for enclosure sizes up to 2.000 L and for distances of over 5 m
between the control system and the digital controller, and also whenever a separate EEx-e
terminal box is required. It functions in the 2-position control mode (open / closed).
Type F-220.2B PTB 00 ATEX 2129 X
Types of Ex protection: II 2 G EEx m II T4, T5, T6 resp.
II 2 G EEx em II T4, T5, T6
165
60
78
42
M20x1.5

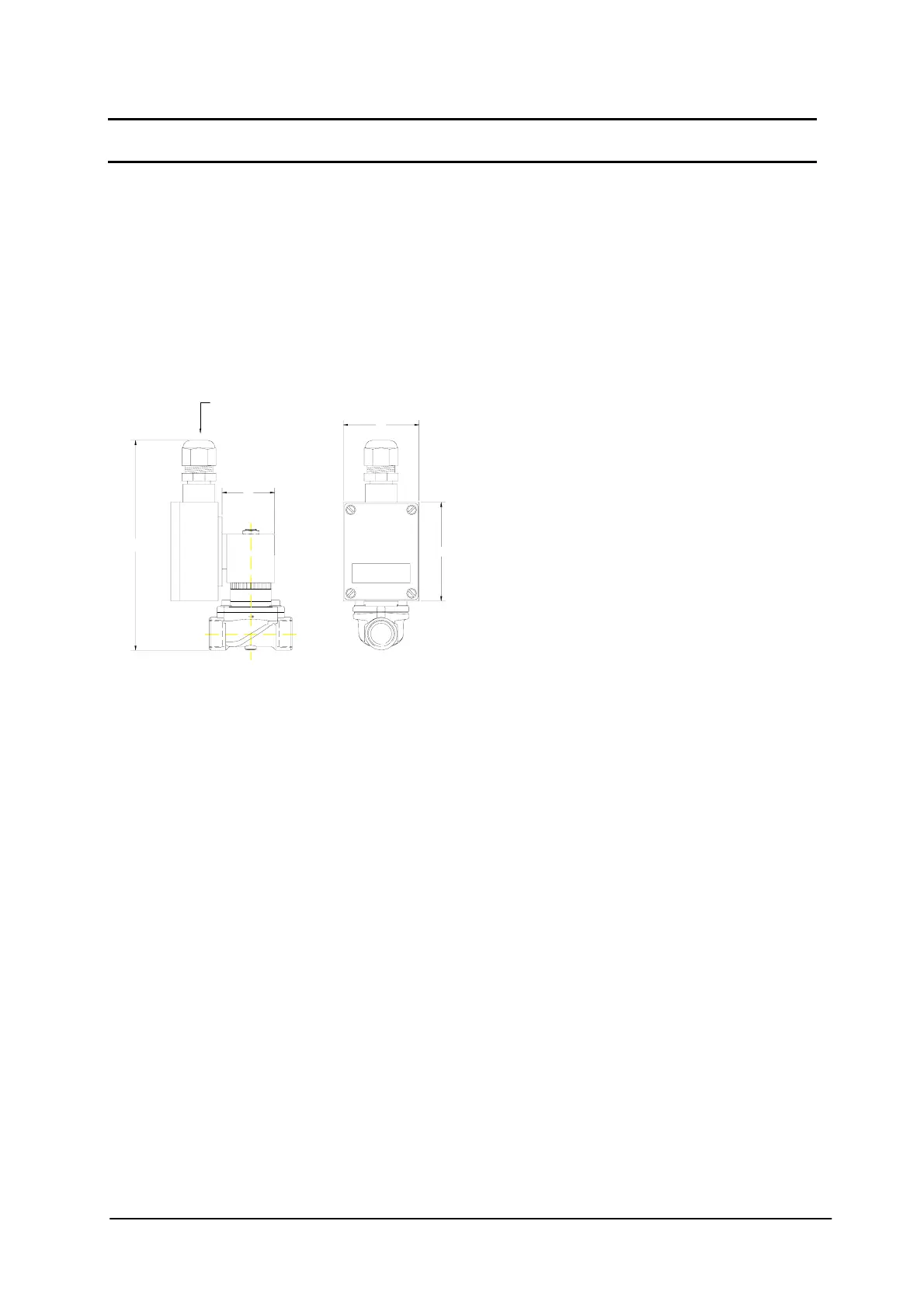

Fig. 29: Dimensioned drawing of the digital controller F-220.2B
Mains voltage: 230 V AC (+/–10%) / universal current
Optional: 12 / 24 / 115 V universal current
Current consumption: 30 mA at 230 V; back-up fuse 0,08 A
60 mA at 115 V; back-up fuse 0,125 A
300 mA at 24 V; back-up fuse 0,63 A
600 mA at 12 V; back-up fuse 1,0 A
Ambient temperature during storage/transport: -40 °C bis +60 °C, without condensation
Ambient temperature during operation: -40 °C bis +60 °C, without condensation
Enclosure material: GRP, epoxy resin, black and brass
Dimensions of F-220.2B (mm): length of enclosure: 109
width of enclosure : 56
height of enclosure, approx.: 139
diameter of air inlet: 1/4“
diameter of air outlet: 3/8“
cable glands: M20
Weight: 1,0 kg
