E-line PRO4 Series - Connection Sample

23
2.3 Connection Sample
Figure 2-7
2.3.2 ELI-ECO4-CVI-16/8
Series

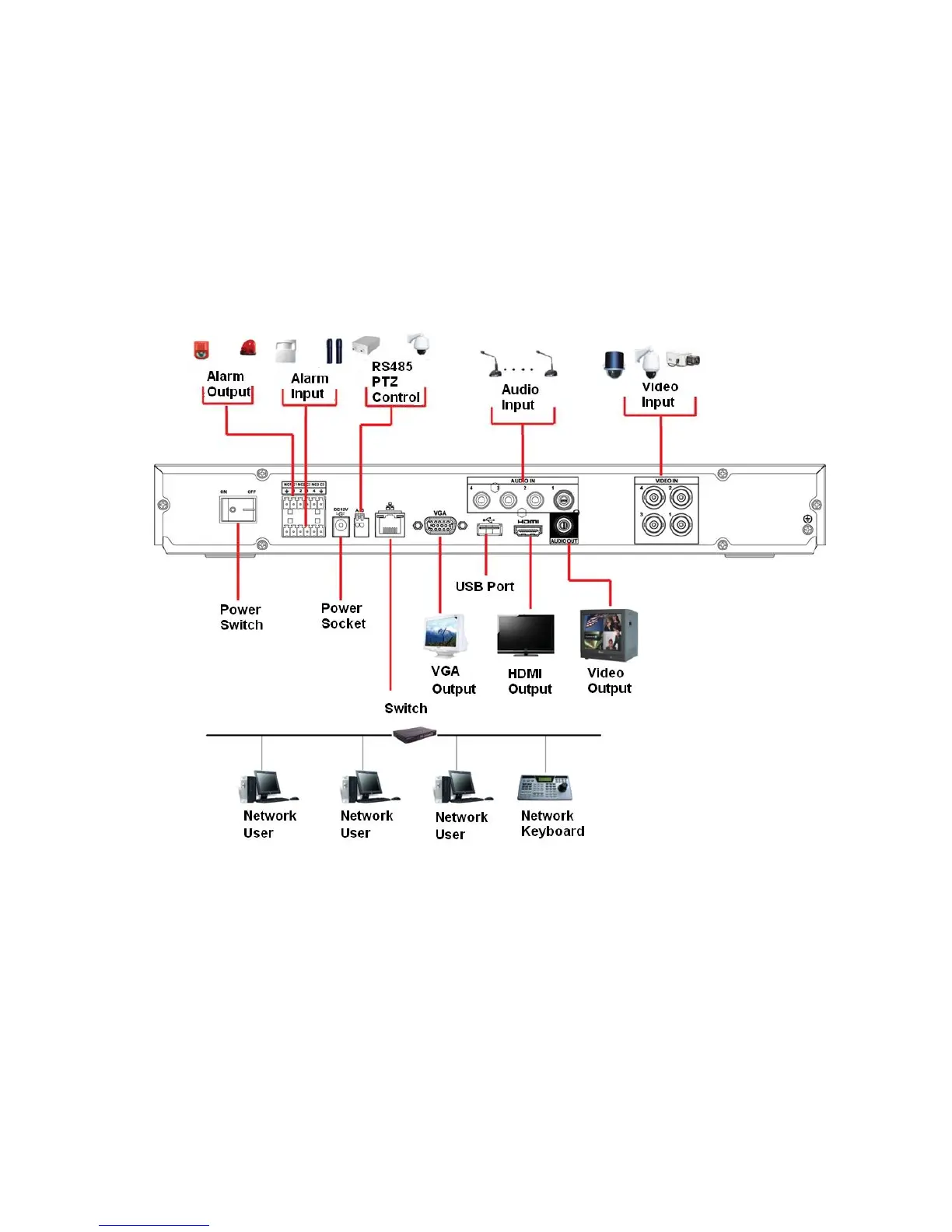

Please refer to the following figure for detailed information. See Figure 2-8.
The following interface is based on the 16-channel 4-HDD general 720P 1.5U series
product.
