CLASS 3200 METER
62-0390-02 24
6.9 Modem Wiring

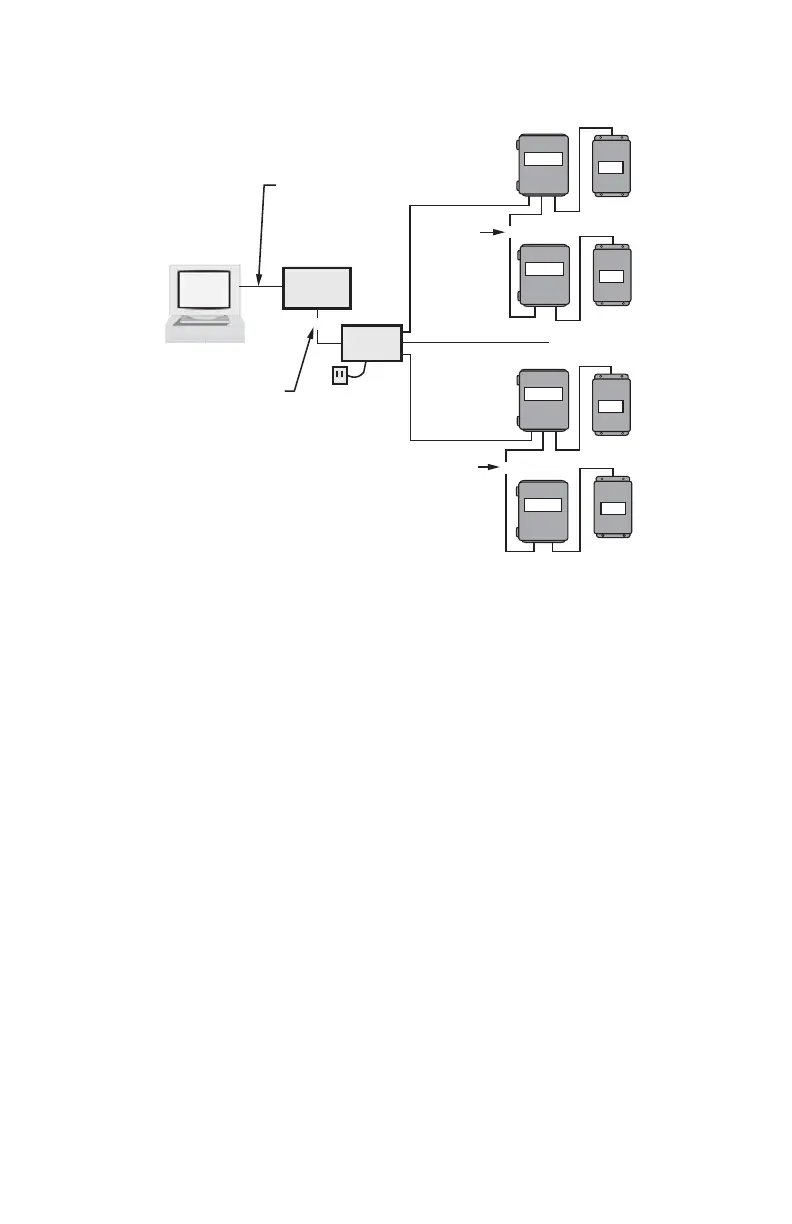

Fig. 14. Modem Configuration.
CHANNEL 2
~
~
~
~
CHANNEL 3
UP TO 4000
FEET TOTAL
RS-232
KEY RM
RS-232 SERIAL
PORT COM1
THROUGH COM3
MAXIMUM 15 FEET
UP TO 52
CLASS 3200
METERS PER
CHANNEL
M33310
UP TO 4000
FEET TOTAL
UP TO 52
CLASS 3200
METERS PER
CHANNEL
CHANNEL 1
AC ADAPTER
PC OR WINDOWS
COMPATIBLE
LOCAL
MODEM
~
~
TELEPHONE
LINK
