10.2 Normal Mode Display Screens
The Class 3200 meter features seven Normal Mode Display Screens for monitoring
the meter. Each screen is displayed for 5 second intervals, before scrolling onto the
next screen.
You can “lock” the scrolling display on any one of the seven screens. This will be
explained in detail on following pages.
Explanations of the Normal Mode Display Screens are as follows:

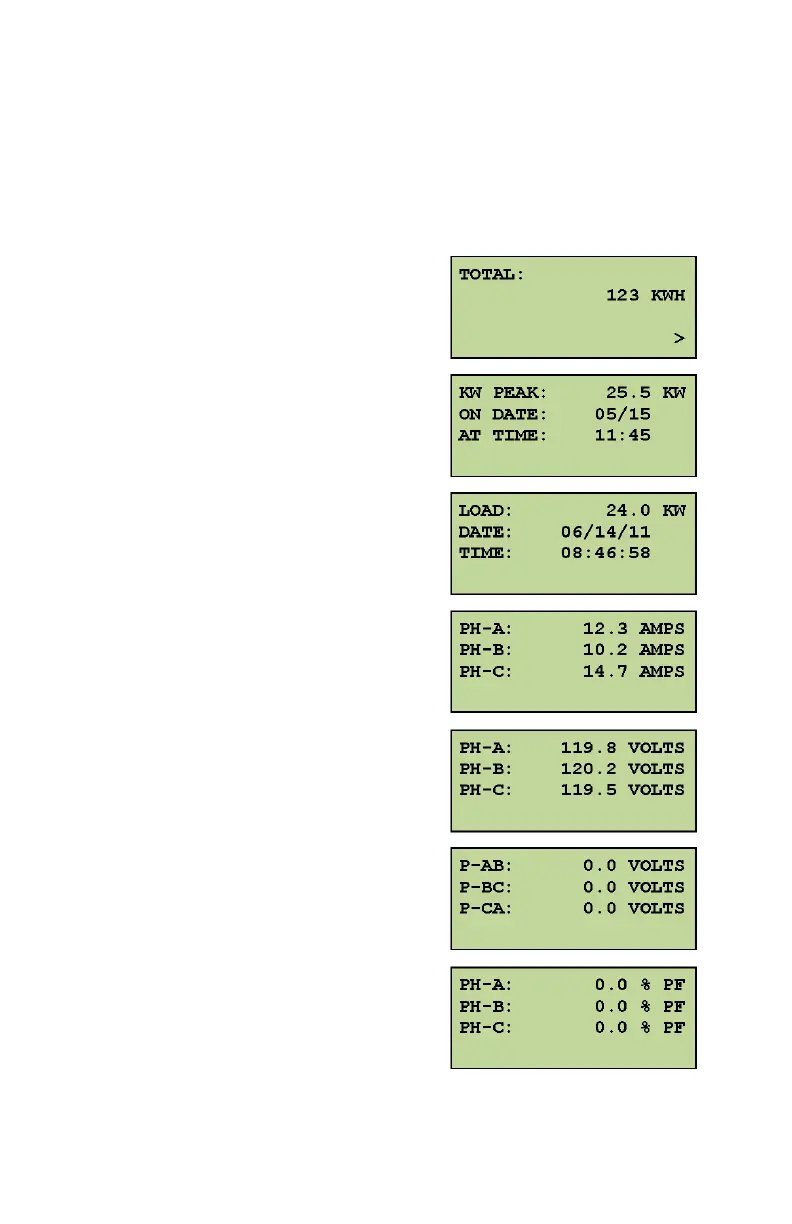

Fig. 23. Class 3200 Meter Display Screens.
Screen 1: Total Kilowatt-Hours (kWh)
Delivered
Screen 2: Peak Demand (kW)
with Date & Time Stamp
Screen 3: Actual Load (kW)
with Present Time
Screen 4: Average Current (amps)
Per Phase
Screen 5: Average Voltage (volts)
Per Phase
Screen 6: Average Voltage (volts)
Phase to Phase
Screen 7: Power Factor (pf)
Per Phase
