4. GENERAL: PowerPlex
®
WEB SERVER WS300
Growing demands regarding safety and convenience lead to the installation of more and more electrical loads in
vehicles and boats. The PowerPlex
®
Web Server (Fig. 7) provides display, monitoring and control of a
PowerPlex
®
system via smartphone, tablet, multifunction display or computer. Up to eight devices can be
integrated into a system either via WiFi (WLAN via separate router) or via LAN. Like all the other PowerPlex
®
components it meets the special requirements of marine and recreational vehicles applications.
The extension of a PowerPlex
®
system by a web server allows convenient remote control and monitoring. Various
devices with web browser can be used to carry out functions and to display status information. The same graphical
user interface is shown on all integrated devices and therefore all system functions are easily available.

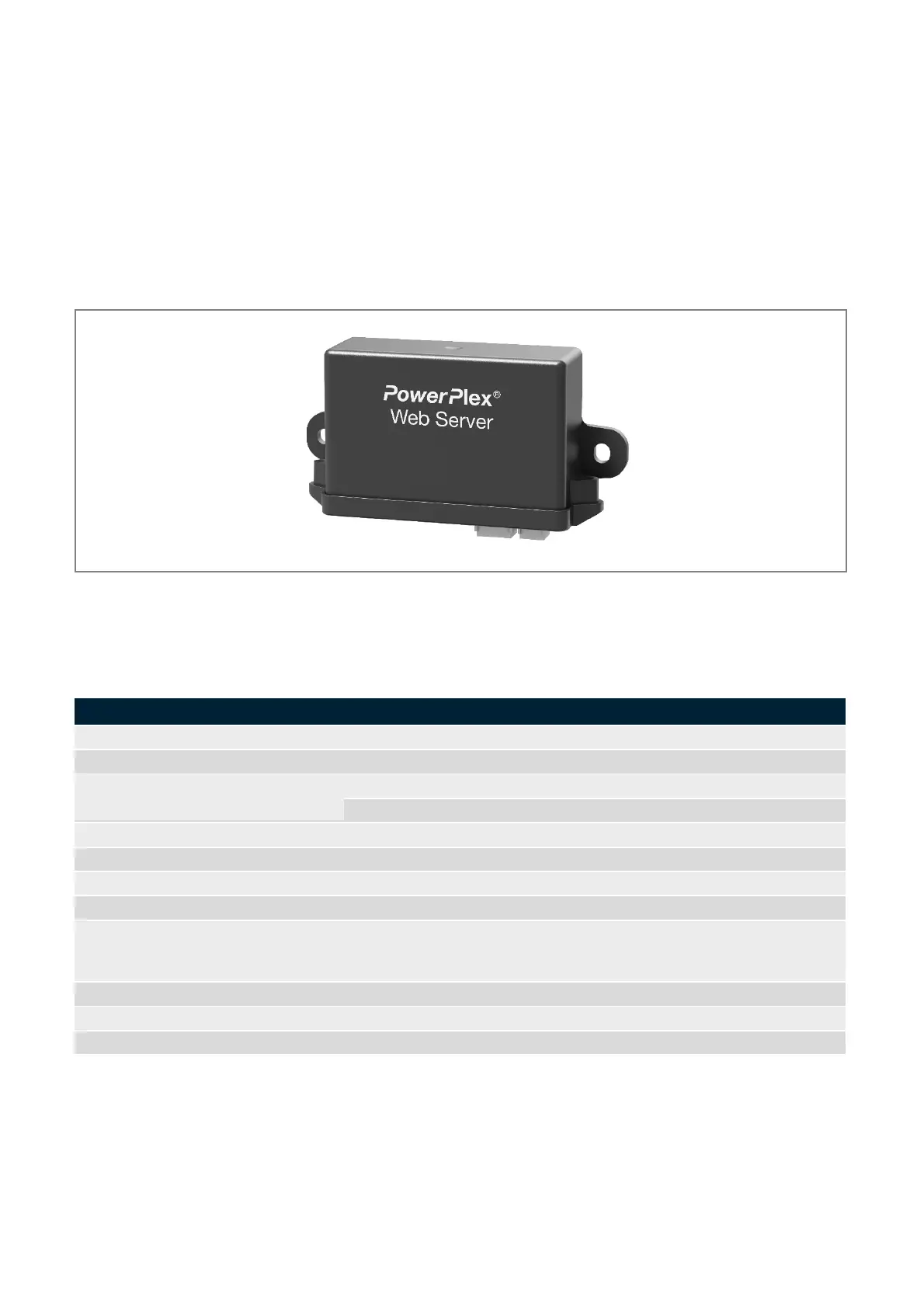

Fig. 7: PowerPlex
®
WS300
4.1. Technical data
The technical information of the PowerPlex
®
Web Sever WS300 are summarised in Table 5.
Technical Data
Voltage rating
DC 12 V/24 V
Operating voltage
DC 9 ... 32 V
Current consumption
typically 92 mA at 12 V
typically 54 mA at 24 V
Degree of protection
IP22 when mounted vertically with terminals pointing downwards
Operating temperature range
-40 … +70°C (-40 … +158 °F)
Storage temperature range
-40 … +85°C (-40 … +185 °F)
Mass
approx. 105 g
CAN
PowerPlex
®
CAN, 250 kbit/s
The CAN-terminals at each end of the CAN bus require a termination by a 120
Ω resistor.
USB
USB 2.0 service interface
Ethernet
Ethernet interface for connection of MFDs, PCs or routers
Part number
PP-M-WS300-000-0-Z-00
Table 5: Selection of technical data
